SKU: QP303/L48VIT

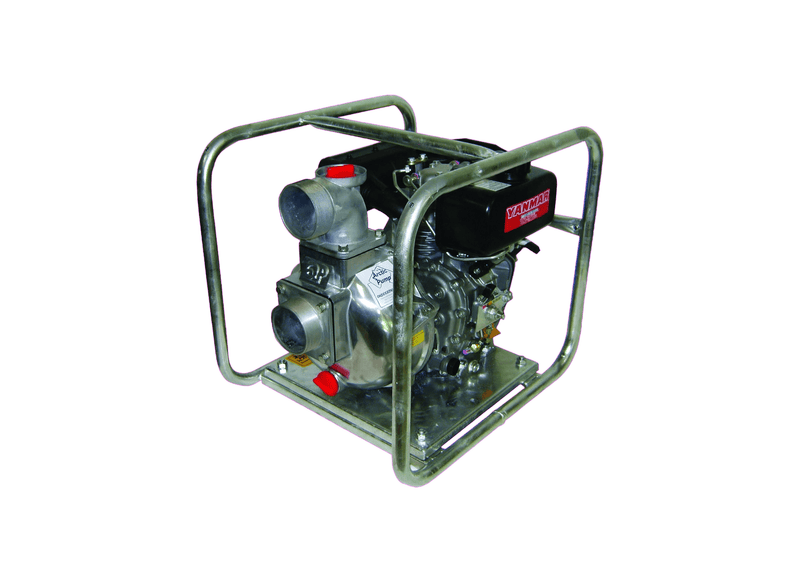

Aussie Pumps Viton Master QP303/L48VIT Aluminium Trailer Mount E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume chemical and diesel transfer through large-port suction and discharge is the intended role of this recoil-start diesel configuration.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,050 L/min at zero static head. Boxed equipment mass measures 70 kg in dry trim. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Powered by a Yanmar L48 (4.8 HP) recoil-start diesel engine. Plumbing connections feature full 3" x 3" BSP male ports with replaceable flanged suction porting, while internal self-priming passages lift liquid reliably from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with zinc-plated casing bolts and polycarbonate drain plugs to streamline field servicing during ag-chem batching operations. Supported by complete technical assembly schematics, user guides, and genuine replacement parts stockists across distributor networks. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Genuine Viton mechanical seals and internal elastomers for liquid chemical and diesel transfer.
- High-capacity 3-inch porting achieves a maximum flow rate of 1,050 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Yanmar L48 (4.8 HP) recoil-start diesel engine provides low fuel consumption.
- Basic control configuration (no stop/start solenoid, no emergency stop switch).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Recoil Start Engine |
| Suitable For | Fertilizer Loading |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What advantages does this large Viton diesel unit provide for bulk chemical transfer?
Combining 3-inch high-flow ports with genuine Viton seals and diesel safety compliance, the Aussie Pumps Viton Gusher Diesel QP303VIT (QP303/L48VIT) transfers up to approximately 1,050 L/min of bulk chemical solutions without petrol spark hazards.
Which pipe fittings and discharge options are engineered on this unit?
Plumbing on the wet end of the QP303/L48VIT features 3" x 3" BSP male threaded suction and discharge ports, supporting standard delivery hoses.
How is shaft drive supplied and engaged on this pump assembly?
Operating drive across the QP303-L48VIT comes from a Yanmar L48 4.8HP recoil diesel engine, started with manual recoil rope starter.
How effectively does the unit pull water from deep farm dams and swimming pools?
From depths reaching approximately 7.6 m vertically, the QP303 L48VIT establishes prime without requiring manual line flooding.
How much fluid displacement and pumping head are available?
The QP303/L48VIT achieves up to approximately 1,050 L/min in open water throughput and up to approximately 30 m in maximum static head.
