SKU: 802790

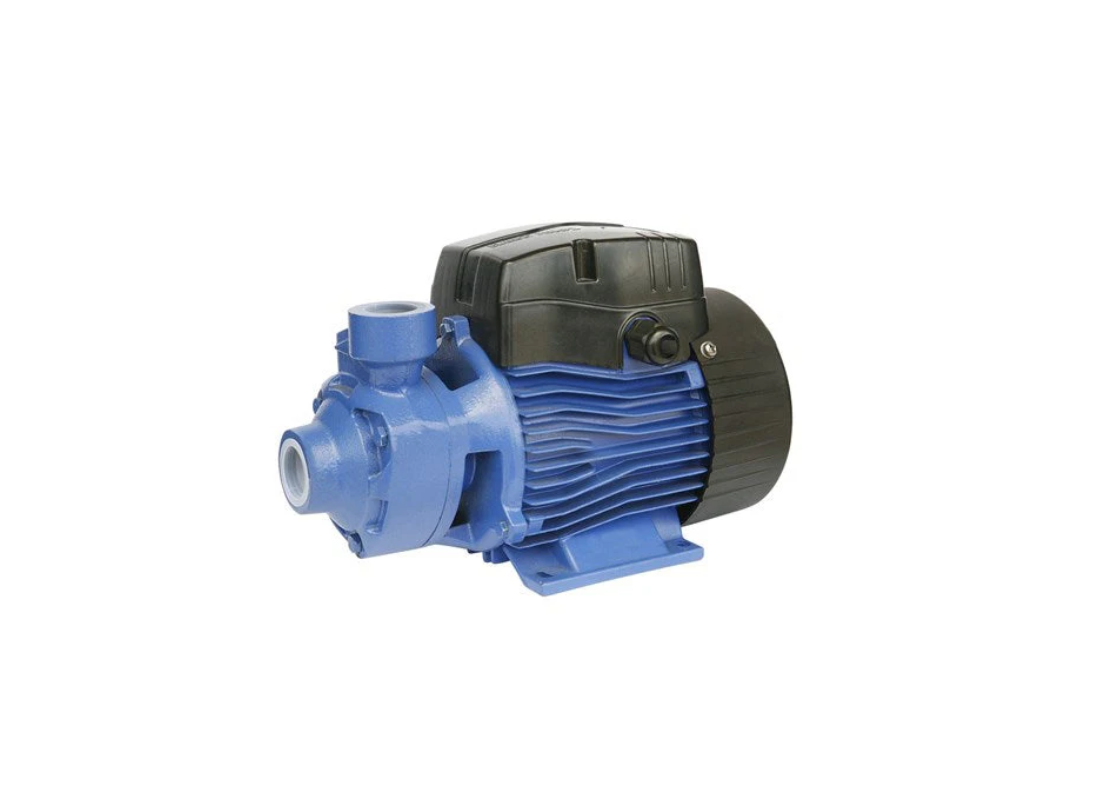

Bianco BIA-PTF60M Cast Iron Peripheral Turbine Transfer Pump with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BIA-PTF60M is a cast iron peripheral turbine pump designed for low flow, high pressure water transfer applications. Ideal for domestic and light commercial use, this pump is commonly used for tank water transfer, gardening systems, washdown duties and jacking pump applications where strong pressure is required with moderate flow.
Powered by a 0.6kW 240V single phase motor, the PTF60M delivers a maximum flow of 58 litres per minute with a maximum head of 58 metres. The pump features a corrosion resistant cast iron pump body treated with a cataphoresis coating to protect against rust and prevent water discoloration.
Built with a durable zinc-free brass impeller and high quality carbon/ceramic mechanical seal, the pump provides dependable operation and long service life. The TEFC motor includes built-in automatic thermal overload protection to safeguard the pump from overheating during continuous operation.
Suitable for clean water applications with temperatures between 2°C and 40°C, the Bianco PTF60M provides a reliable solution for high pressure domestic and light commercial water transfer systems.
FEATURES
- 0.6kW 240V single phase motor
- Maximum flow: 58 litres per minute
- Maximum head: 58 metres
- Cast iron pump body with cataphoresis anti-corrosion treatment
- Zinc free brass impeller
- Carbon/ceramic mechanical seal
- TEFC motor with automatic thermal overload protection
- IPX4 motor protection rating
- Continuous duty motor operation
- 1" BSPF suction and discharge ports
- Suitable for clean water from 2°C to 40°C
A compact high pressure peripheral pump designed for reliable tank water transfer, gardening and washdown applications.
SPECIFICATIONS
| Max Flow | 58 L/Min |
| Max Head | 58 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.5 Amps |
| Suitable For | Tank Water Transfer / Gardening / Washdown / Domestic Water Supply |
| Body Material | Cast Iron |
| Liquid Temperature | 2°C to 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow rate and head performance are delivered by the system?
The BIA_PTF60M achieves a maximum flow of 58 litres per minute and a 58-metre maximum head.
What durable construction materials enhance pump body corrosion resistance?
A cataphoresis-coated cast iron body combined with a zinc-free brass impeller protects the BIA PTF60M against rust.
What are the primary applications and suitable uses for this peripheral turbine pump?
Tank water transfer, gardening, and washdown systems benefit greatly from the BIA-PTF60M peripheral turbine design.
What fluid temperature ranges and port connections match standard setups?
Clean water ranging from 2°C to 40°C flows smoothly through the 1" BSPF ports of the BIA-PTF60M.
What motor specifications and protective features safeguard electrical operations?
Automatic thermal overload protection is built into the TEFC motor driving the B-I-A-PTF60M.
