SKU: 802813

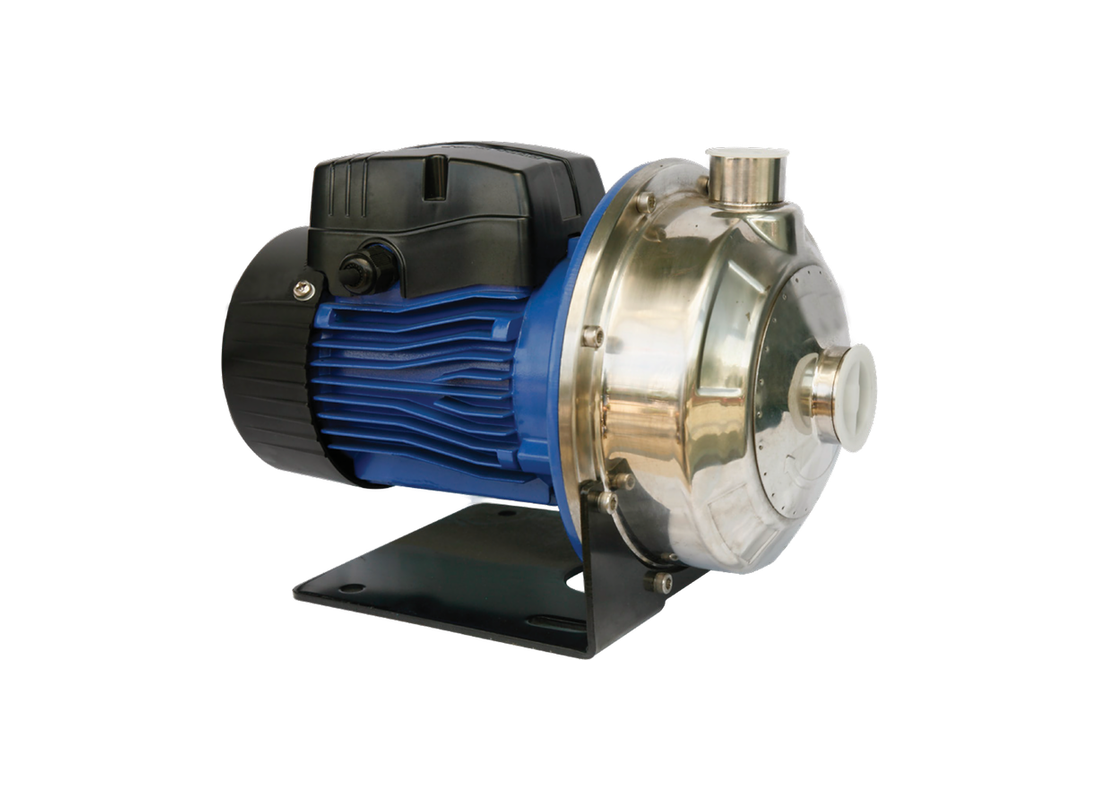

Bianco BLC120-110S2 Stainless Steel Close-Coupled Centrifugal Pump for Water Transfer Single Stage
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC120-110S2 is a horizontal single-stage stainless steel centrifugal pump designed for clean and moderately aggressive fluids. It is suitable for domestic and industrial applications including water supply, transfer, circulation, and pressure boosting systems.
This model delivers a maximum flow rate of 160 L/Min and a maximum head of 30.2 metres, providing efficient performance for a wide range of applications such as irrigation, tank emptying, washing systems, and fountains.
Constructed from corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, seal support, and shaft ensure durability and long service life. Nitrile O-rings and a graphite, ceramic, and nitrile mechanical seal provide reliable sealing performance for continuous operation.
The pump is driven by a 1.1 kW single-phase 240v close-coupled TEFC motor with in-built thermal overload protection. It features F-class insulation, IP44 protection, and supports liquid temperatures from 3°C to 85°C with a maximum operating pressure of 8 bar. Connection sizes include 1 1/4" BSPF inlet and 1" BSPF outlet for standard installation compatibility.
FEATURES
- Single-stage centrifugal pump delivering 160 L/Min flow and 30.2 m head
- Corrosion-resistant 304 stainless steel construction
- Suitable for clean and moderately aggressive fluids
- 1.1 kW single-phase close-coupled TEFC motor
- In-built thermal overload protection
- F-class insulation with IP44 protection rating
- Graphite, ceramic, and nitrile mechanical seal
- Nitrile O-rings for chemical resistance
- Maximum operating pressure up to 8 bar
- Liquid temperature range from 3°C to 85°C
- 1 1/4" BSPF inlet and 1" BSPF outlet connections
- Compact and quiet operation for domestic and industrial use
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 30 m |
| Power | 1.1 kW / 240v |
| Rated Current | 5.8 Amps |
| Suitable For | Water Transfer |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What port connection sizes ensure standard installation compatibility?
Standard 1 1/4" inlet and 1" outlet connections complete the BLC120-110S2 setup.
What domestic and industrial fluid systems suit this stainless steel centrifugal pump?
BLC120-110S2 provides efficient performance for water supply, irrigation, and pressure boosting systems.
What corrosion-resistant materials and mechanical seals protect internal structures?
Corrosion-resistant 304 stainless steel forms the body and shaft of the BLC120-110-S2.
What maximum flow rate and head specifications characterize performance?
A flow rate upto 160 L/Min and a 30.2-metre head are generated by the BLC120_110S2.
What motor power, electrical protection, and temperature limits apply?
BLC120 110S2 runs on a 1.1 kW single-phase TEFC motor supporting temperatures up to 85°C.
