SKU: 808405
Bianco BLC210-110S2T Stainless Steel Close-Coupled Centrifugal Pump for Washing Systems Single Stage
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

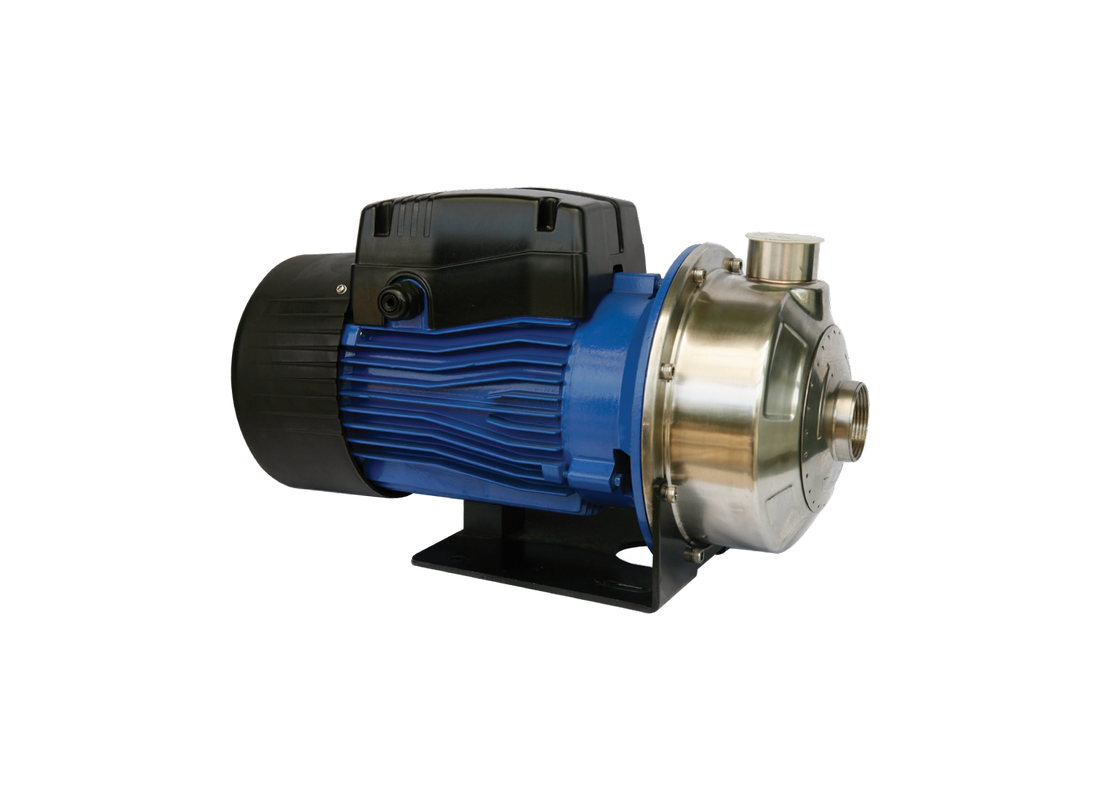

The Bianco BLC210-110S2T is a horizontal single-stage stainless steel centrifugal pump designed for clean and moderately aggressive fluids. It is suited for domestic and industrial applications including washing systems, water transfer, circulation, and pressure boosting.
This model delivers a maximum flow rate of 300 L/Min and a maximum head of 19.7 metres, making it ideal for high-flow applications such as car washing, irrigation, and tank emptying where consistent water movement is required.
Constructed from corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support provide durability and long service life. Nitrile O-rings and a graphite, ceramic, and nitrile mechanical seal ensure reliable sealing performance under continuous operation.
The pump is powered by a 1.1 kW three-phase 415V close-coupled TEFC motor with in-built thermal overload protection. It features F-class insulation, IP44 protection, and supports liquid temperatures from 3°C to 85°C with a maximum operating pressure of 8 bar. Connection sizes include 1 1/2" BSPF inlet and 1 1/4" BSPF outlet for standard installation compatibility.
FEATURES
- Single stage centrifugal pump delivering 300 L/Min flow and 19.7 m head
- Corrosion-resistant 304 stainless steel construction
- Suitable for clean and moderately aggressive fluids
- 1.1 kW three-phase 415V close-coupled TEFC motor
- In-built thermal overload protection
- F-class insulation with IP44 protection rating
- Graphite, ceramic, and nitrile mechanical seal
- Nitrile O-rings for chemical resistance
- Maximum operating pressure up to 8 bar
- Liquid temperature range from 3°C to 85°C
- 1 1/2" BSPF inlet and 1 1/4" BSPF outlet connections
- Compact and quiet operation for domestic and industrial use
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 19.7 m |
| Power | 1.1 kW / 415v |
| Rated Current | 2.4 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What three-phase motor size and thermal protection drive the system?
BLC210 110S2T operates on a 1.1 kW three-phase 415V TEFC motor with built-in thermal overload protection.
What high-flow washing systems and fluid transfer tasks suit this centrifugal pump?
BLC210-110S2T handles high-flow applications like car washing, irrigation, and tank emptying.
What stainless steel components and O-ring seals ensure chemical resistance?
Corrosion-resistant 304 stainless steel and nitrile O-rings equip the BLC210-110-S2T for longevity.
What pressure ratings and installation port dimensions feature in the build?
An 8 bar pressure limit and 1 1/2" inlet ports define the BLC210-110S2T layout.
What maximum flow rate and head delivery parameters are achieved?
Up to 300 L/Min of flow paired and a 19.7-metre head is delivered by the BLC210_110S2T.
