SKU: 808406

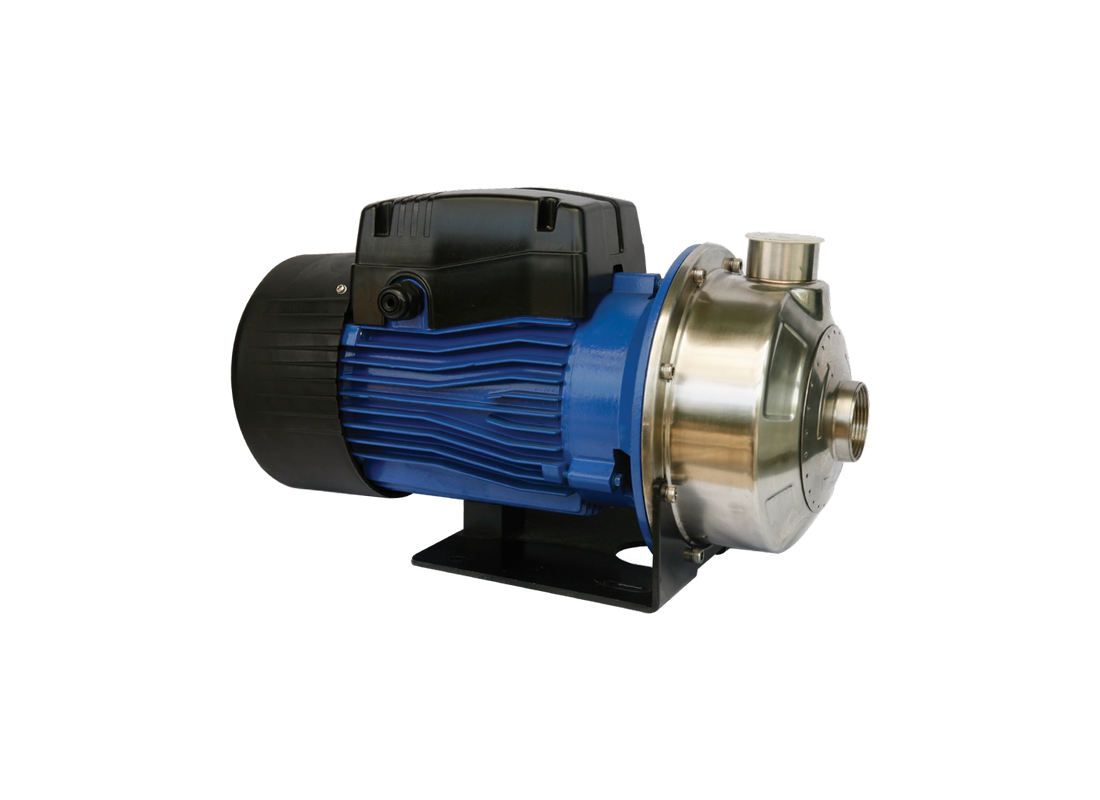

Bianco BLC210-220S2 Stainless Steel Close Coupled Centrifugal Pressure Boosting Pump Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC210-220S2 is a horizontal single-stage close coupled centrifugal pump engineered for pressure boosting, water circulation, and fluid handling applications. It is suitable for domestic and industrial systems, supporting operations such as irrigation, tank emptying, and continuous water movement.
Constructed with corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support ensure durability and long service life. Nitrile elastomers are used throughout the sealing system, while the graphite, ceramic, and nitrile mechanical seal provides reliable and consistent sealing performance.
This model delivers a maximum flow rate of 300 L/Min and a maximum head of 27.5 metres, making it suitable for applications requiring steady pressure and high flow performance. The close coupled configuration allows compact installation while maintaining efficient operation.
Powered by a 2.2 kW single-phase motor operating on 230V, the pump features a TEFC motor with in-built thermal overload protection. With F-class insulation and IP44 protection rating, it ensures safe and reliable performance in a range of environments.
The pump supports liquid temperatures up to 85°C and operates at a maximum pressure of 8 bar. It is fitted with 1-1/2" BSPF inlet and 1-1/4" BSPF outlet connections for standard installation compatibility.
FEATURES- Single stage centrifugal pump delivering 300 L/Min flow and 27.5 m head
- Close coupled design for compact installation and efficient operation
- 304 stainless steel body, impeller, diffuser, shaft, and seal support
- Compatible with clean and moderately aggressive fluids
- Graphite, ceramic, and nitrile mechanical seal
- 2.2 kW single-phase TEFC motor with thermal overload protection
- IP44 protection rating with F-class insulation
- Maximum operating pressure up to 8 bar
- Liquid temperature capability up to 85°C
- 1-1/2" BSPF inlet and 1-1/4" BSPF outlet connections
- Quiet and reliable operation for continuous duty
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 27.5 m |
| Power | 2.2 kW / 240v |
| Rated Current | 12 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What industrial and domestic applications match this centrifugal pressure booster?
Continuous water circulation and steady irrigation performance are supported reliably by the BLC210-220S2.
What pressure thresholds and temperature tolerances are supported during operation?
System operations up to 8 bar pressure and 85°C fluid temperatures are managed safely by the BLC210-220S2.
What motor power and electrical specifications drive the system?
A 2.2 kW single-phase TEFC motor powers the BLC210 220S2 from a 230V supply.
What corrosion-resistant materials comprise the internal hydraulic housing?
Durable 304 stainless steel wetted components and graphite mechanical seals protect the BLC210 220S2 from wear.
What maximum flow and head performance characteristics are featured?
The BLC210_220S2 delivers a flow rate upto 300 L/Min paired and maximum of a 27.5-metre head.
