SKU: 802814

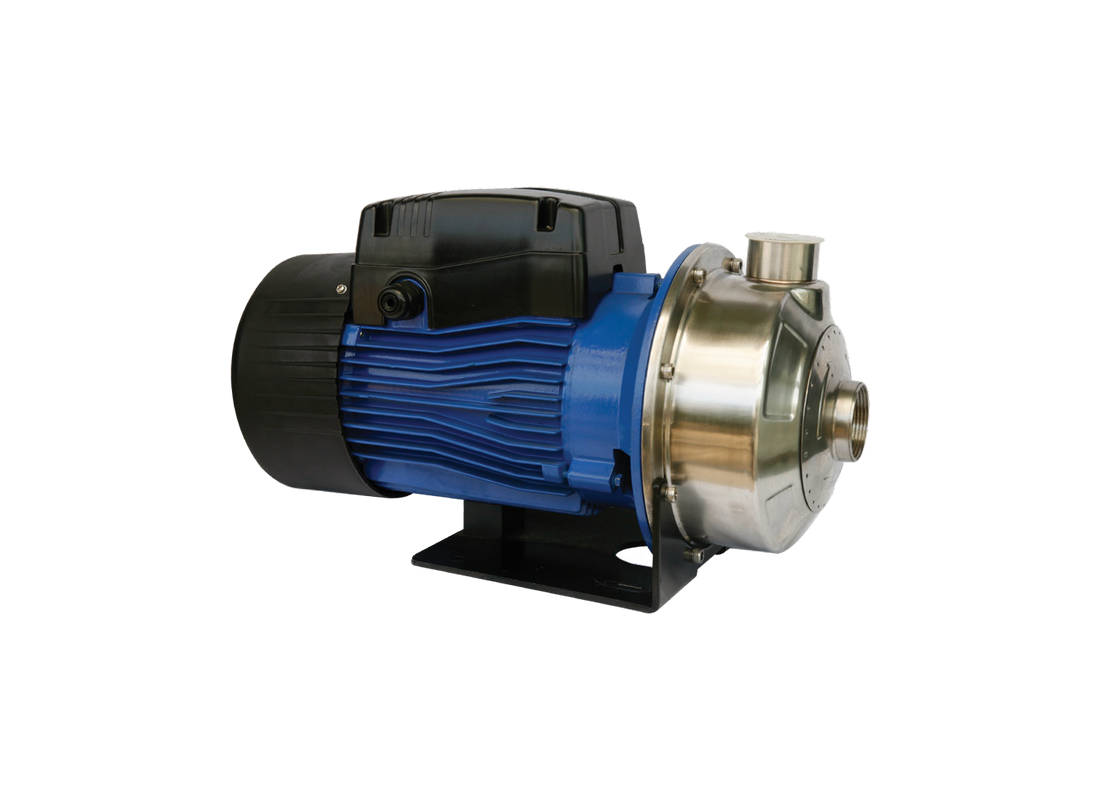

Bianco BLC210-220S2 Stainless Steel Close-Coupled Centrifugal Pump for Irrigation Systems Single Stage
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC210-220S2 is a horizontal single-stage stainless steel centrifugal pump designed for handling clean and moderately aggressive fluids. It is suitable for domestic and industrial applications including irrigation systems, water transfer, circulation, and pressure boosting.
This model delivers a maximum flow rate of 300 L/Min and a maximum head of 27.5 metres, providing reliable performance for high-flow applications such as tank emptying, gardening, and water supply systems.
Constructed from corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support ensure durability and long service life. Nitrile O-rings and a graphite, ceramic, and nitrile mechanical seal provide consistent sealing performance under continuous operation.
The pump is powered by a 2.2 kW three-phase 415V close-coupled TEFC motor with in-built thermal overload protection. It features F-class insulation, IP44 protection, and supports liquid temperatures from 3°C to 85°C with a maximum operating pressure of 8 bar. Connection sizes include 1 1/2" BSPF inlet and 1 1/4" BSPF outlet for standard installation compatibility.
FEATURES
- Single stage centrifugal pump delivering 300 L/Min flow and 27.5 m head
- Corrosion-resistant 304 stainless steel construction
- Suitable for clean and moderately aggressive fluids
- 2.2 kW three-phase 415V close-coupled TEFC motor
- In-built thermal overload protection
- F-class insulation with IP44 protection rating
- Graphite, ceramic, and nitrile mechanical seal
- Nitrile O-rings for chemical resistance
- Maximum operating pressure up to 8 bar
- Liquid temperature range from 3°C to 85°C
- 1 1/2" BSPF inlet and 1 1/4" BSPF outlet connections
- Compact and quiet operation for domestic and industrial use
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 27.5 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4 Amps |
| Suitable For | Irrigation Systems |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor specifications and electrical insulation ratings drive the unit?
Irrigation systems, water supply networks, and pressure boosting are applications for the BLC210/220S2.
What temperature ranges and connection sizes are engineered into the design?
A 2.2 kW three-phase 415V TEFC motor with F-class insulation powers the BLC210_220S2.
What internal stainless steel materials and mechanical seals protect the build?
The BLC210-220-S2 features a hydraulic housing made from 304 stainless steel components and handles liquid temperatures up to 85°C.
What industrial and domestic applications match this stainless steel centrifugal pump?
With 1 1/2" inlet and 1 1/4" outlet ports, the BLC210 220S2 accommodates flow rates of up to 300 L/Min.
What flow rate and head performance capabilities are delivered?
A maximum head of 27.5 metres complements the maximum flow rate of 300 L/Min for the BLC210/220/S2.
