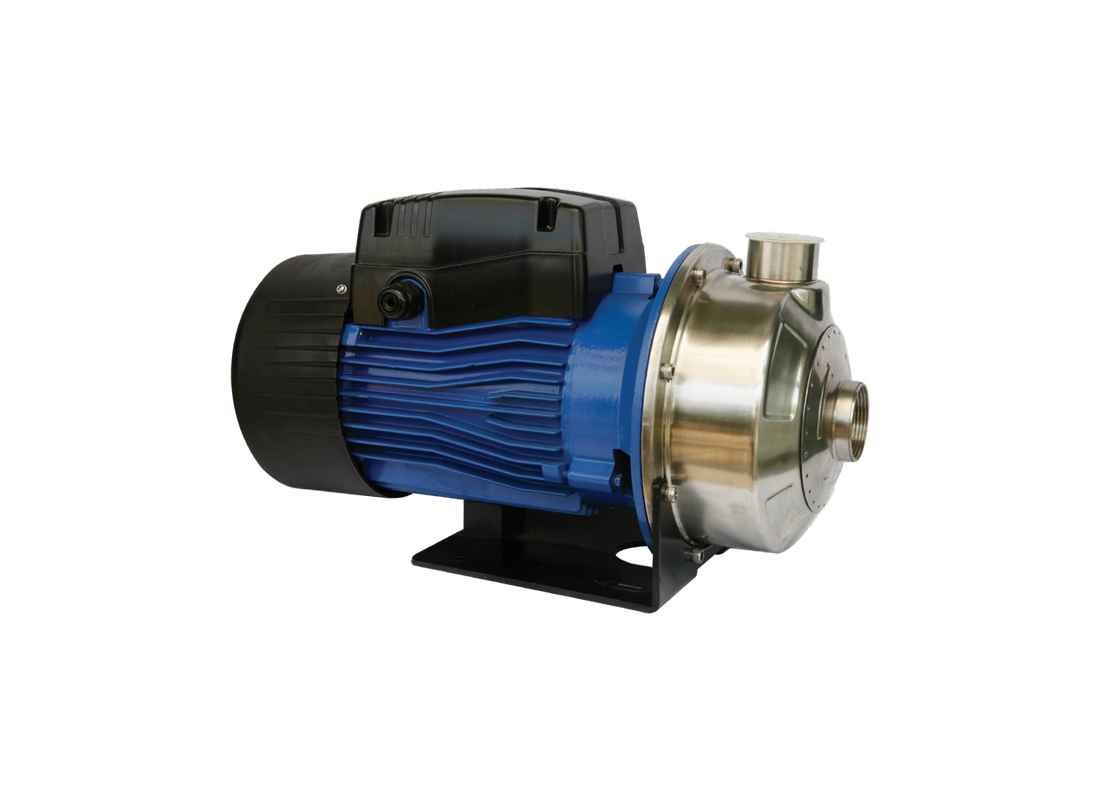

Bianco BLC370-220S2 Stainless Steel Close Coupled Centrifugal High Flow Pump Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC370-220S2 is a horizontal single-stage close coupled centrifugal pump designed for high flow water movement, circulation, and system boosting applications. It is suitable for domestic and industrial installations handling clean or moderately aggressive fluids.
Common applications include irrigation systems, tank emptying, water supply networks, and continuous fluid circulation. It is also used in gardening, fountains, washdown operations, and dairy service environments where steady flow is required.
Constructed with corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support provide durability and long service life. Nitrile elastomers are used for sealing components, while the graphite, ceramic, and nitrile mechanical seal ensures reliable sealing performance.
This model delivers a maximum flow rate of 520 L/Min and a maximum head of 23.1 metres, making it suitable for high flow applications requiring moderate pressure. The close coupled configuration ensures compact installation and efficient power transmission.
Powered by a 2.2 kW single-phase motor operating on 230V, the pump features a TEFC motor with in-built thermal overload protection. It operates with F-class insulation and IP44 protection rating, ensuring safe and reliable performance.
The pump supports liquid temperatures up to 85°C and operates at a maximum pressure of 8 bar. It is fitted with 2" BSPF inlet and 1-1/4" BSPF outlet connections for standard installation compatibility.
FEATURES- Single stage centrifugal pump delivering 520 L/Min flow and 23.1 m head
- Close coupled design for compact and efficient installation
- 304 stainless steel body, impeller, diffuser, shaft, and seal support
- Compatible with clean and moderately aggressive fluids
- Graphite, ceramic, and nitrile mechanical seal
- 2.2 kW single-phase TEFC motor with thermal overload protection
- IP44 protection rating with F-class insulation
- Maximum operating pressure up to 8 bar
- Liquid temperature capability up to 85°C
- 2" BSPF inlet and 1-1/4" BSPF outlet connections
- Quiet and reliable operation for continuous duty
SPECIFICATIONS
| Max Flow | 520 L/Min |
| Max Head | 23.1 m |
| Power | 2.2 kW / 240v |
| Rated Current | 12 Amps |
| Suitable For | High Volume Transfer |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What sealing materials and stainless steel components ensure durability?
Corrosion-resistant 304 stainless steel and nitrile elastomers equip the BLC370 220S2 for heavy-duty use.
What maximum flow rate and head capabilities are delivered?
Reaching a maximum flow of 520 L/Min with a 23.1-metre head, the BLC370_220S2 maintains steady circulation.
What connection sizes and operating pressure limits feature in the build?
The BLC370 220S2 has a 2-inch BSPF inlet, a 1¼-inch outlet, and a maximum pressure of 8 bar.
What high-flow water transfer tasks and agricultural environments suit this centrifugal pump?
Dairy service environments, fountains, and large irrigation networks benefit from the BLC370-220S2 high-flow capacity.
What motor power and electrical configuration drive the close-coupled design?
A 2.2 kW single-phase 230V motor energizes the close-coupled power transmission on the BLC370-220S2.
