SKU: 808700

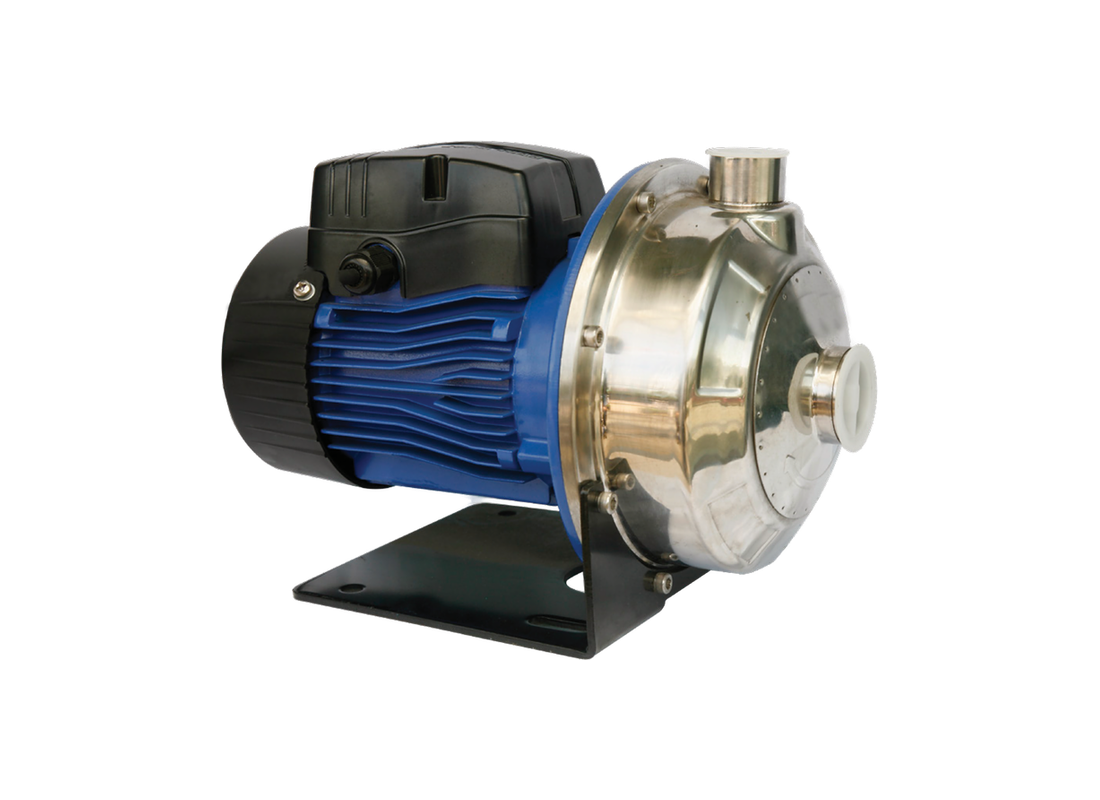

Bianco BLC70-037S2 Stainless Steel Close Coupled Centrifugal Irrigation Pump Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC70-037S2 is a horizontal single-stage close coupled centrifugal pump designed for irrigation, water transfer, and circulation applications. It is suitable for domestic and light industrial systems handling clean or moderately aggressive fluids.
Typical applications include irrigation systems, tank emptying, water supply networks, and continuous circulation in gardening and light-duty service environments. The pump is designed to deliver stable and efficient performance across a wide range of operating conditions.
Constructed with corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support provide durability and long service life. Nitrile elastomers are used throughout the sealing system, while the graphite, ceramic, and nitrile mechanical seal ensures reliable sealing performance.
This model delivers a maximum flow rate of 80 L/Min and a maximum head of 22 metres, making it suitable for moderate flow and medium head applications. The close coupled configuration ensures compact installation and efficient operation.
Powered by a 0.37 kW single-phase motor operating on 230V, the pump features a TEFC motor with in-built thermal overload protection. It operates with F-class insulation and IP44 protection rating, ensuring safe and reliable performance.
The pump supports liquid temperatures up to 85°C and operates at a maximum pressure of 8 bar. It is fitted with 1-1/4" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility :contentReference[oaicite:0]{index=0}.
FEATURES- Single stage centrifugal pump delivering 80 L/Min flow and 22 m head
- Close coupled design for compact and efficient installation
- 304 stainless steel body, impeller, diffuser, shaft, and seal support
- Compatible with clean and moderately aggressive fluids
- Graphite, ceramic, and nitrile mechanical seal
- 0.37 kW single-phase TEFC motor with thermal overload protection
- IP44 protection rating with F-class insulation
- Maximum operating pressure up to 8 bar
- Liquid temperature capability up to 85°C
- 1-1/4" BSPF inlet and 1" BSPF outlet connections
- Quiet and reliable operation for continuous duty
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 22 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.5 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What operating pressure limitations and connection dimensions are featured?
Standard installation is enabled on the BLC70-037S2 via 1-1/4" inlet and 1" outlet ports under 8 bar pressure.
What motor size and electrical supply power the unit?
A 0.37 kW single-phase motor powers the BLC70 037S2 from a 230V supply.
What light-duty irrigation tasks and fluid circulation jobs suit this centrifugal model?
Light-duty service environments and stable water supply networks utilize the BLC70-037S2 for continuous circulation.
What stainless steel components and mechanical seals protect internal structures?
Graphite and ceramic mechanical seals pair with 304 stainless steel components inside the BLC70 037S2.
What maximum flow and head specifications are delivered?
The BLC70_037S2 delivers an 80 L/Min maximum flow rate alongside a 22-metre head.
