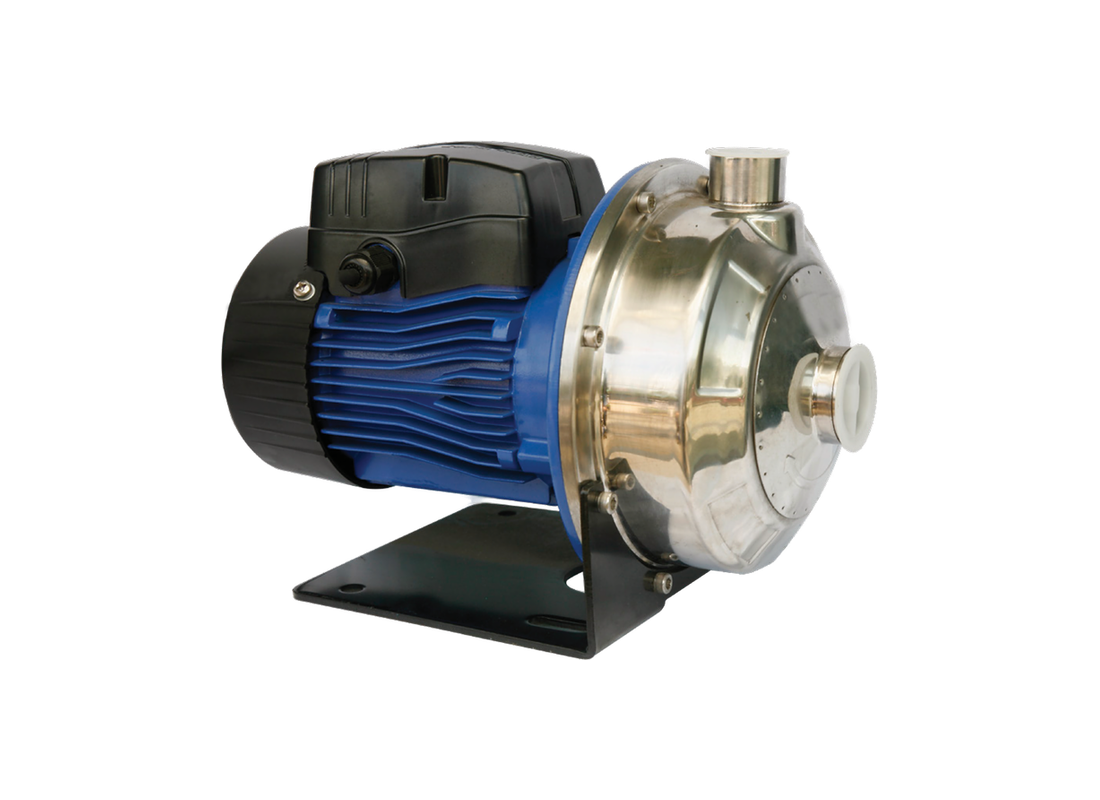

Bianco BLC70-055S2 Stainless Steel Close-Coupled Centrifugal Pump for Garden Irrigation Single Stage
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Compact and efficient, the Bianco BLC70-055S2 is a horizontal stainless steel centrifugal pump designed for handling clean and moderately aggressive fluids. It is well suited for applications such as garden irrigation, water transfer, tank emptying, and light pressure boosting in domestic environments.
This model delivers a maximum flow rate of 80 L/Min and a maximum head of 29.5 metres, offering reliable performance where moderate flow and higher head are required.
The pump is constructed from corrosion-resistant 304 stainless steel across the body, impeller, diffuser, shaft, and seal support. It incorporates nitrile elastomers and a graphite, ceramic, and nitrile mechanical seal to ensure consistent sealing and durability during operation.
Powered by a 0.55 kW single-phase 240v close-coupled TEFC motor, the unit includes in-built thermal overload protection, F-class insulation, and IP44 protection. It supports liquid temperatures from 3°C to 85°C and operates up to 8 bar pressure, with 1 1/4" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility.
FEATURES
- Single stage centrifugal pump delivering 80 L/Min flow and 29.5 m head
- Corrosion-resistant 304 stainless steel construction
- Suitable for clean and moderately aggressive fluids
- 0.55 kW single-phase 240v close-coupled TEFC motor
- In-built thermal overload protection
- F-class insulation with IP44 protection rating
- Graphite, ceramic, and nitrile mechanical seal
- Nitrile O-rings for chemical resistance
- Maximum operating pressure up to 8 bar
- Liquid temperature range from 3°C to 85°C
- 1 1/4" BSPF inlet and 1" BSPF outlet connections
- Compact and reliable design for domestic and light industrial use
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 29.5 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What temperature parameters and installation port dimensions are supported?
Liquid temperatures from 3°C to 85°C flow through standard connections on the BLC70-055S2.
What stainless steel components and internal O-ring seals prevent fluid wear?
Corrosion-resistant 304 stainless steel and nitrile elastomers equip the BLC-70-055-S2 for durability.
What domestic environments and light pressure boosting tasks suit this centrifugal pump?
Garden irrigation and tank emptying in domestic environments are supported effectively by the BLC70-055S2.
What motor size, single-phase power supply, and electrical protections drive the unit?
BLC70 055S2 is powered by a 0.55 kW single-phase 240v TEFC motor with thermal protection.
What maximum flow rate and head capabilities define performance output?
The BLC70_055S2 generate upto 80 L/Min maximum flow rate and head of a 29.5-metre.
