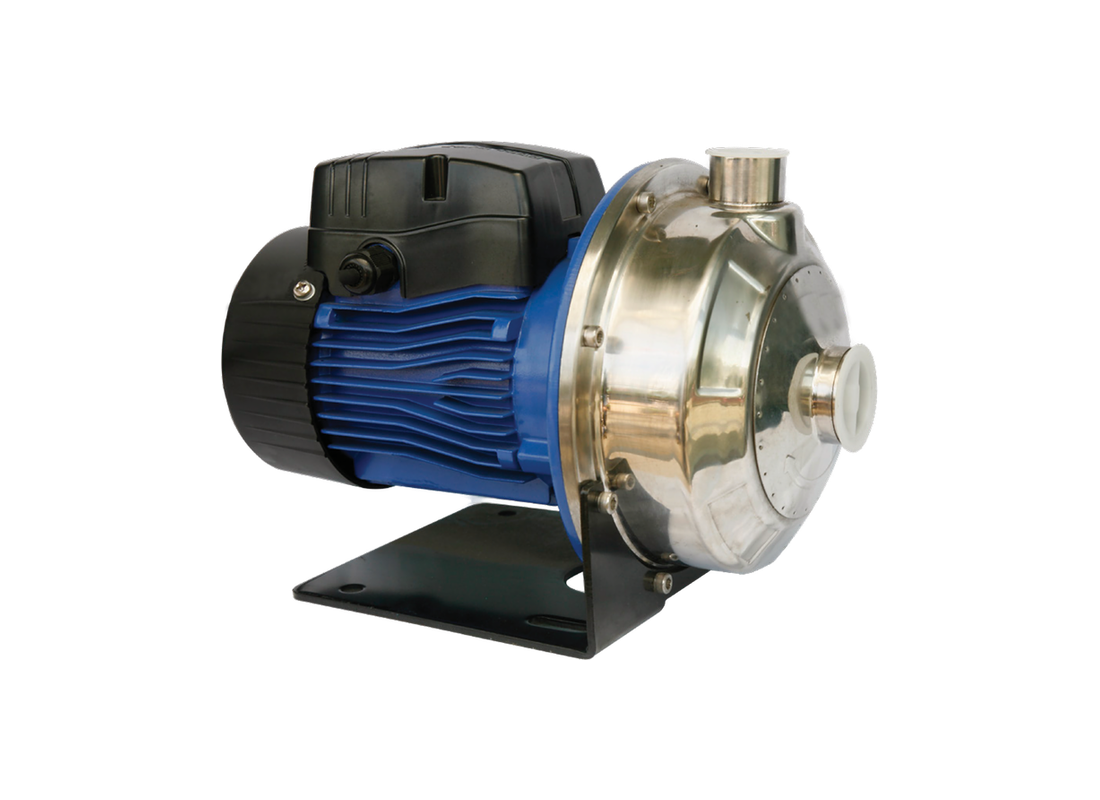

Bianco BLC70-75S2 Stainless Steel Close Coupled Centrifugal Fountain Pump Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco BLC70-75S2 is a horizontal single-stage close coupled centrifugal pump designed for pressure boosting, water transfer, and circulation applications. It is suitable for domestic and light industrial systems handling clean or moderately aggressive fluids.
Common applications include irrigation systems, tank emptying, water supply networks, and continuous circulation. It is also suited for gardening, fountains, washdown operations, and dairy service environments requiring consistent flow performance.
Constructed with corrosion-resistant 304 stainless steel, the pump body, impeller, diffuser, shaft, and seal support provide durability and long service life. Nitrile elastomers are used for sealing components, while the graphite, ceramic, and nitrile mechanical seal ensures reliable sealing performance.
This model delivers a maximum flow rate of 80 L/Min and a maximum head of 30.4 metres, supporting efficient operation in moderate flow and higher head applications. The close coupled configuration ensures compact installation and efficient power transmission.
Powered by a 0.55 kW single-phase motor operating on 230V, the pump features a TEFC motor with in-built thermal overload protection. It operates with F-class insulation and IP44 protection rating, ensuring safe and reliable performance.
The pump supports liquid temperatures up to 85°C and operates at a maximum pressure of 8 bar. It is fitted with 1-1/4" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility.
FEATURES
- Single stage centrifugal pump delivering 80 L/Min flow and 30.4 m head
- Close coupled design for compact and efficient installation
- 304 stainless steel body, impeller, diffuser, shaft, and seal support
- Compatible with clean and moderately aggressive fluids
- Graphite, ceramic, and nitrile mechanical seal
- 0.55 kW single-phase TEFC motor with thermal overload protection
- IP44 protection rating with F-class insulation
- Maximum operating pressure up to 8 bar
- Liquid temperature capability up to 85°C
- 1-1/4" BSPF inlet and 1" BSPF outlet connections
- Quiet and reliable operation for continuous duty
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 30.4 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.8 Amps |
| Suitable For | Tank Filling |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor specifications and thermal protections are included?
A 0.55 kW single-phase 230V motor equipped with built-in thermal overload protection drives the BLC70-75S2.
What moderate-flow and higher-head water applications match this centrifugal system?
Water supply networks and gardening applications are served effectively by the BLC70-75S2 pressure booster.
What construction materials prevent corrosion in aggressive fluid environments?
Corrosion-resistant 304 stainless steel housing forms the primary structure of the BLC70 75S2.
What flow rate and head performance parameters are achieved?
The BLC70 75S2 delivers a maximum flow of 80 L/min while Its maximum head is 30.4 metres.
What port connections and temperature capabilities are engineered into the design?
BLC70-75S2 handles Liquid temperatures up to 85°C are supported through 1-1/4" inlet and 1" outlet ports.
