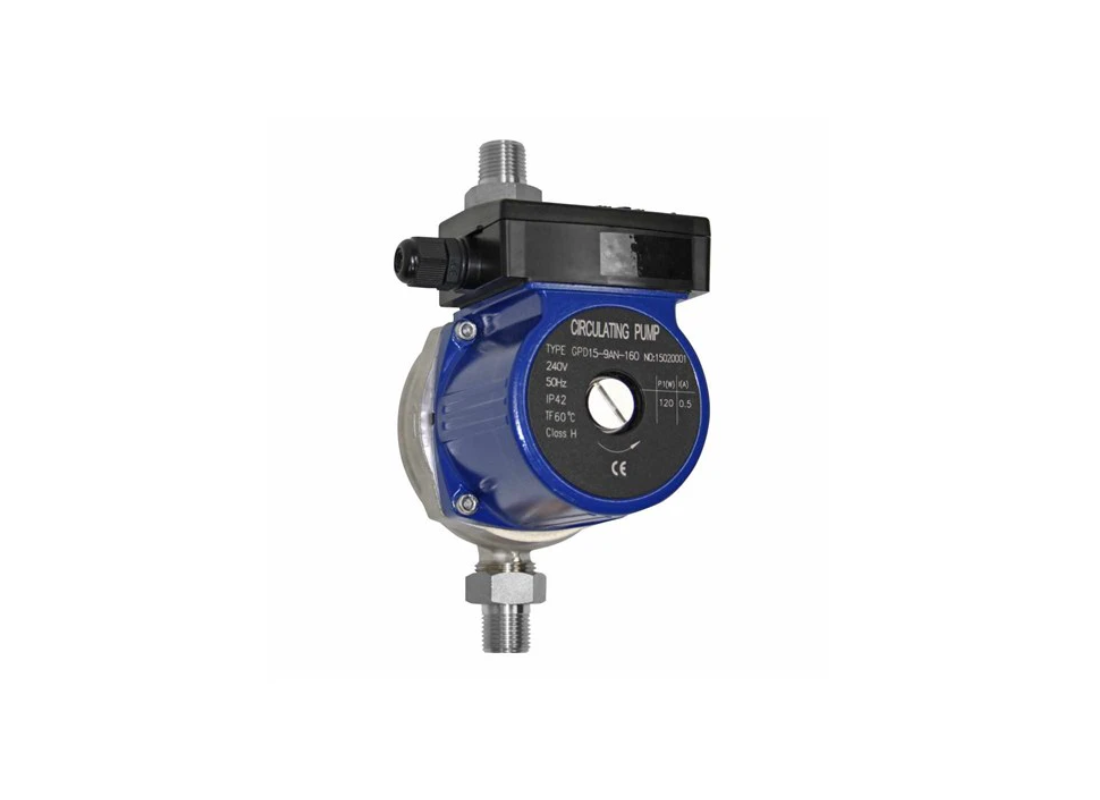

Bianco C1509-160 Stainless Steel Pressure Booster Pump with Single Speed Setting
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco C1509-160 is a compact stainless steel pressure booster pump designed to improve water pressure in domestic hot water systems. Engineered for gravity-fed or low pressure installations, this booster pump increases flow to showers, taps and other outlets to deliver more consistent water pressure throughout the home.
Powered by a 120W 240v single phase motor, the C1509-160 delivers a maximum flow of 30 litres per minute with a maximum head of 9 metres. The pump features a built-in flow switch which automatically starts and stops the pump when a tap is opened or closed, ensuring convenient and efficient operation.
Constructed with durable 304 stainless steel hydraulic components and a canned motor design, the pump provides quiet operation and long service life. Designed for hot water circulation and pressure boosting, the C1509-160 is suitable for liquid temperatures between 5°C and 105°C and is supplied with unions for easy installation in domestic plumbing systems.
FEATURES
- 120W 240v single phase motor
- Maximum flow: 30 litres per minute
- Maximum head: 9 metres
- Automatic flow switch operation
- Canned motor design for quiet operation
- 304 stainless steel hydraulic components
- Designed for boosting domestic hot water pressure
- 3/4" BSPM inlet and outlet ports
- Supplied with 3/4"F x 1/2"M unions
- Suitable for liquid temperatures from 5°C to 105°C
A compact and reliable stainless steel booster pump designed to improve hot water pressure in domestic plumbing systems.
SPECIFICATIONS
| Max Flow | 30 L/Min |
| Max Head | 9 m |
| Power | 0.12 kW / 240v |
| Rated Current | 0.5 Amps |
| Suitable For | Domestic Hot Water Pressure Boosting / Gravity Fed Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 5°C to 105°C |
| Inlet Size | 20 mm |
| Outlet Size | 20 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What domestic water pressure issues are solved by this booster pump?
Gravity-fed or low-pressure domestic plumbing systems benefit from increased water flow driven by the C1509-160.
How does the integrated flow switch automate everyday operation?
Automatic starting and stopping when taps open or close is managed on the C-1509-160 via a built-in switch.
What temperature parameters and port connections suit household plumbing?
Liquid temperatures between 5°C and 105°C are accommodated by the C1509-160 using included unions.
What maximum flow rate and head performance are delivered?
The C1509_160 generates a maximum flow of 30 litres per minute with a 9-metre head.
What durable construction materials enhance the service life?
304 stainless steel hydraulic components and a quiet canned motor comprise the C1509 160.
