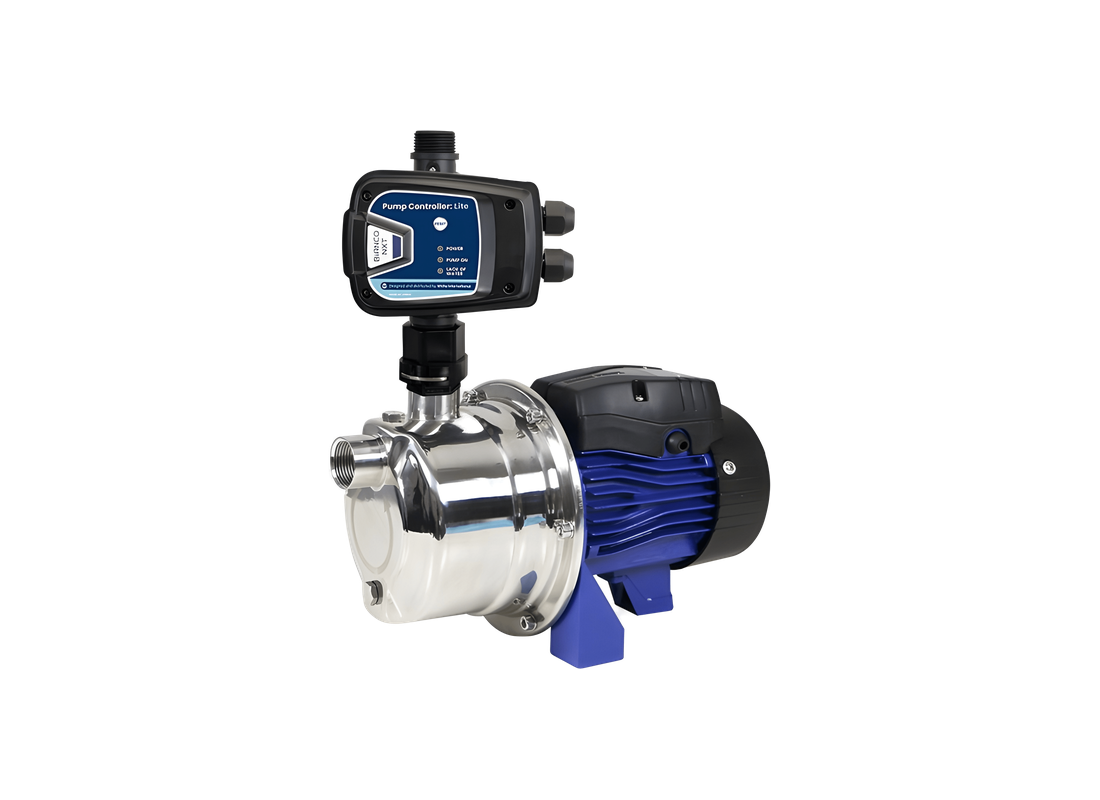

Bianco INOX90LITE Stainless Steel Jet Pump for Home Pressure Boosting with Controller Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco INOX90LITE is a stainless steel jet pump designed for automatic clean water supply systems, supplied with a pre-wired NXT LITE pressure controller for seamless operation. It is suitable for domestic applications including household water supply, light garden irrigation, washing systems, and pressure boosting.
This model delivers a maximum flow rate of 79 L/Min and a maximum head of 50 metres, providing strong performance for home water systems requiring higher pressure and flow.
Constructed with a corrosion-resistant 304 stainless steel pump body, the unit incorporates composite impeller and diffuser components for efficient operation. A silicon carbide and carbon mechanical seal ensures dependable sealing and durability during continuous use.
Powered by a 0.75 kW single-phase 240v motor, the pump features inbuilt thermal overload protection, IPX5 protection rating, and F-class insulation. The integrated controller enables automatic start and stop, dry-run protection, and restart after power or water loss. It supports liquid temperatures from 2°C to 40°C and operates with pump pressure up to 8 bar (controller rated to 10 bar).
FEATURES
- Jet pump delivering 79 L/Min maximum flow and 50 m maximum head
- Supplied with NXT LITE controller for automatic operation
- Self-priming jet design with internal venturi
- 304 stainless steel pump body for corrosion resistance
- Composite impeller and diffuser for efficient performance
- 0.75 kW single-phase 240v motor
- Inbuilt thermal overload protection
- IPX5 protection rating with F-class insulation
- Automatic start, stop, and restart functionality
- Integrated dry-run protection for system safety
- Maximum pump pressure 8 bar (controller 10 bar)
- Liquid temperature range from 2°C to 40°C
SPECIFICATIONS
| Max Flow | 79 L/Min |
| Max Head | 50 m |
| Power | 0.75 kW / 240v |
| Rated Current | 6 Amps |
| Suitable For | Tank Filling |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials are used to construct the pump body and internal components?
Constructed with a corrosion-resistant 304 stainless steel pump body, the Bianco/INOX90LITE incorporates composite impeller and diffuser components for efficient operation.
How much maximum flow rate and head does this system deliver?
Delivering robust hydraulic performance, the Bianco-INOX90LITE achieves a flow rate upto 79 L/Min alongside a maximum head of 50 metres.
What temperature range and maximum pressure levels can this system handle?
Supporting liquid temperatures from 2°C to 40°C, the Bianco-INOX-90LITE operates with pump pressure up to 8 bar while the controller handles 10 bar.
What are the electrical specifications and motor protection features included?
Powered by a 0.75 kW single-phase 240v motor, the Bianco INOX 90 LITE features inbuilt thermal overload protection, IPX5 protection, and F-class insulation.
What are the suitable domestic applications for this stainless steel jet pump?
The Bianco INOX90LITE is well-suited for domestic household water supply, light garden irrigation, washing systems, and pressure boosting.
