Bianco MULTI103NXTP Stainless Steel Multistage Pressure Pump with NXT Controller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

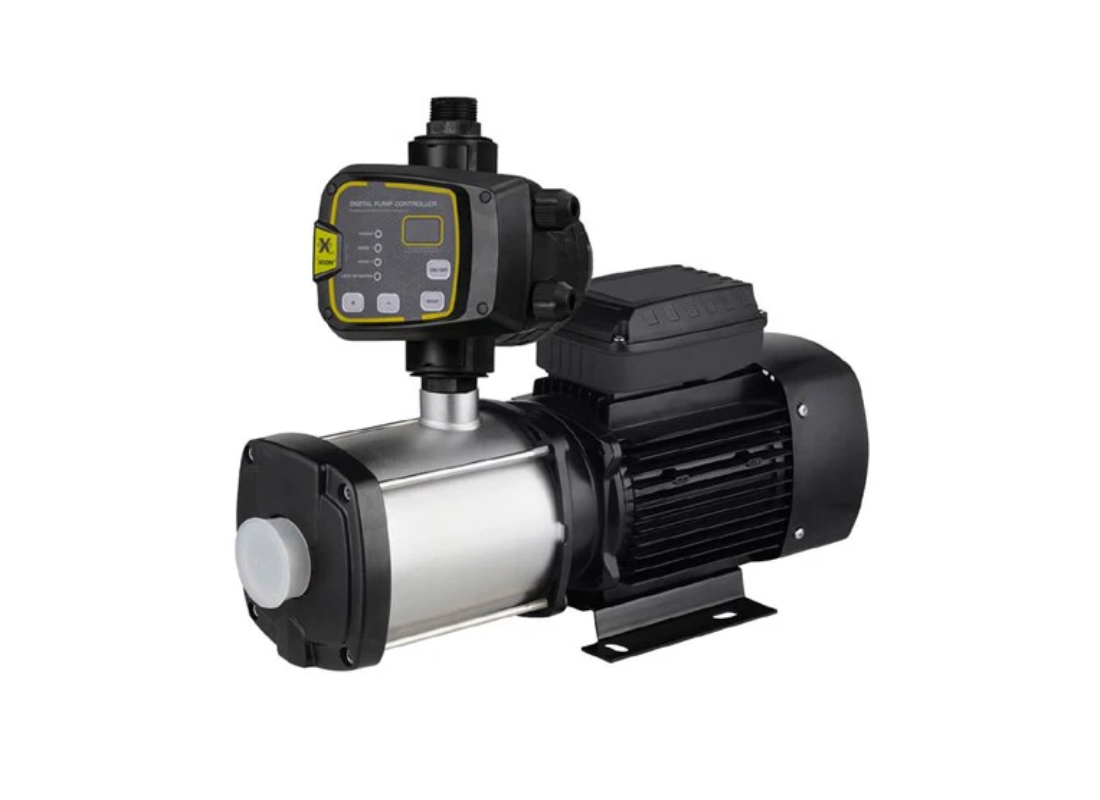

The Bianco MULTI103NXTP is a high-performance horizontal multistage pressure pump designed for reliable domestic and light commercial water supply systems. Built with corrosion-resistant stainless steel hydraulic components, the pump delivers efficient pressure boosting for household water supply, irrigation, washing systems, and water transfer applications. It is supplied pre-wired with the Bianco nXt PRO intelligent controller which automatically starts and stops the pump based on water demand while providing advanced system protection.
Powered by a 2.2kW single-phase TEFC motor, the MULTI103NXTP delivers up to 233 litres per minute with a maximum head of 49 metres. The horizontal multistage centrifugal design provides strong pressure output while maintaining quiet and efficient operation for domestic pressure boosting and rural water supply systems.
The integrated nXt PRO controller includes a digital display, dual operating modes, dry-run protection, anti-cycle protection, and automatic restart after power loss or water interruption. The pump is designed for clean water applications and incorporates a silicon carbide and carbon mechanical seal, stainless steel wetted components, and built-in thermal overload protection for reliable long-term operation.
FEATURES
- 2.2kW single phase motor (240V)
- Maximum flow: 233 litres per minute
- Maximum head: 49 metres
- Horizontal multistage centrifugal pump design
- Stainless steel pump body and wetted components
- Bianco nXt PRO intelligent controller with digital display
- Automatic start and stop operation
- Dry-run protection with auto restart
- Anti-cycle and overload protection
- TEFC motor with thermal overload protection
- 1½" inlet and 1¼" outlet connections
- Designed for clean water pressure systems
SPECIFICATIONS
| Max Flow | 233 L/Min |
| Max Head | 49 m |
| Power | 2.2 kW / 240v |
| Rated Current | 10.8 Amps |
| Suitable For | Domestic Water Supply / Irrigation / Pressure Boosting / Water Transfer |
| Body Material | Stainless Steel |
| Liquid Temperature | 2°C to 50°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow and pressure capabilities does this horizontal centrifugal model offer?
The MULTI 103 NXTP delivers a maximum flow of 233 litres per minute. Its maximum head is 49 metres.
What construction materials and port connection sizes feature in this design?
Stainless steel wetted components pair with 1½" inlet and 1¼" outlet connections on the MULTI 103 NXTP.
What are the primary applications and suitable uses for this multi-stage system?
Household water supply, washdown systems, and irrigation benefit from the efficient pressure boosting provided by the MULTI103NXTP.
Which automation and protective functions are integrated into the intelligent controller?
The MULTI103NXTP utilizes an nXt PRO intelligent controller to deliver automatic restart and dry-run protection.
What motor specifications and electrical power supply are required?
Standard 240V power feeds the 2.2kW single-phase TEFC motor driving the MULTI_103_NXTP.
