Bianco MULTI3-50PRO Stainless Steel nXt PRO Self-Priming Multistage Pressure Boosting Pump Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

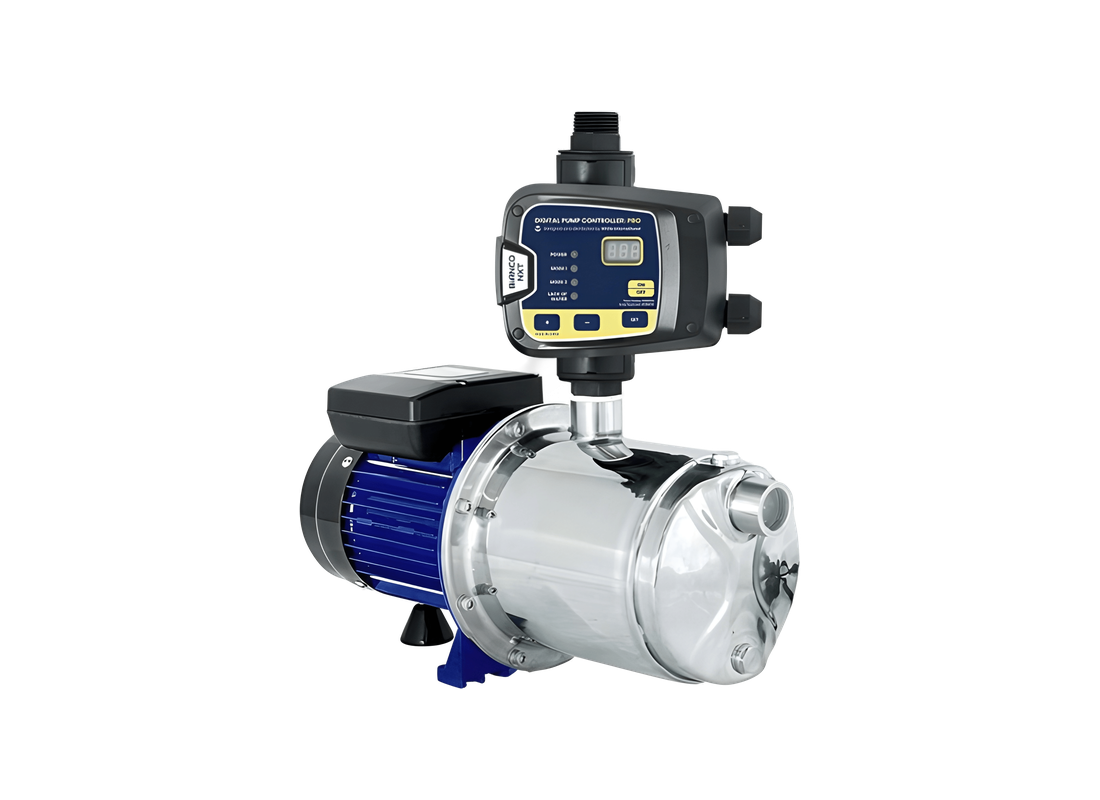

The Bianco MULTI3-50PRO is a horizontal self-priming multistage pressure pump designed for domestic water supply, pressure boosting, and light irrigation applications. It is engineered to deliver consistent water pressure and reliable performance in residential and semi-rural installations.
Suitable for household systems, water transfer, washing systems, and light commercial applications, the pump is capable of drawing water from shallow wells and submerged tanks. Its self-priming capability ensures efficient operation even in installations where water supply is not directly pressurised.
Constructed with a stainless steel pump body, the unit offers durability and corrosion resistance. The internal hydraulic components including impellers and diffusers are manufactured from composite materials, ensuring efficient multistage performance. A silicon carbide and carbon mechanical seal provides reliable sealing and extended service life.
This model delivers a maximum head of 42 metres and a maximum flow rate of 98 L/Min, supporting stable pressure output for domestic and light-duty applications.
Powered by a 0.55 kW single-phase motor operating on 220–240V, the pump features an asynchronous TEFC motor with in-built thermal overload protection. It is rated IP45 and designed for quiet and efficient operation. The integrated nXt PRO controller provides automatic operation with dual mode functionality, including dry-run protection, frequent start protection, and maximum run time protection.
The pump supports liquid temperatures from 2°C to 40°C and operates at a maximum pressure of 8 bar for the pump and 10 bar for the controller. It is fitted with 1" inlet and 1" outlet connections for standard installation compatibility.
FEATURES
- Multistage self-priming pump delivering 98 L/Min flow and 42 m head
- nXt PRO controller with dual mode automatic operation
- Dry-run, frequent start, and maximum run time protection
- Stainless steel pump body with composite impeller and diffusers
- Self-priming capability for shallow well and tank applications
- Silicon carbide and carbon mechanical seal
- 0.55 kW single-phase asynchronous TEFC motor
- IP45 protection rating with thermal overload protection
- Maximum pressure: pump 8 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Pre-wired system with digital display controller
- Quiet and efficient operation for residential systems
SPECIFICATIONS
| Max Flow | 98 L/Min |
| Max Head | 42 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.6 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 36 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the primary applications and suitable uses for this multi-stage system?
MULTI3-50PRO provides domestic water supply and pressure boosting for residential and semi-rural installations.
What motor specifications and electrical power supply are required?
MULTI3-50-PRO operates on an asynchronous TEFC 0.55 kW motor with built-in thermal overload protection.
Which intelligent control and protective functions are integrated into the design?
MULTI350PRO includes an nXt PRO controller featuring dry-run protection and dual-mode automatic operation.
What maximum flow rate and head performance are delivered?
Stable pressure output reaching a 42-metre head and 98 L/Min flow is delivered by the MULTI3_50PRO.
What construction materials and mechanical seals are featured in the build?
Corrosion resistance and extended service life are ensured through composite impellers and silicon carbide seals on the MULTI3 50 PRO.
