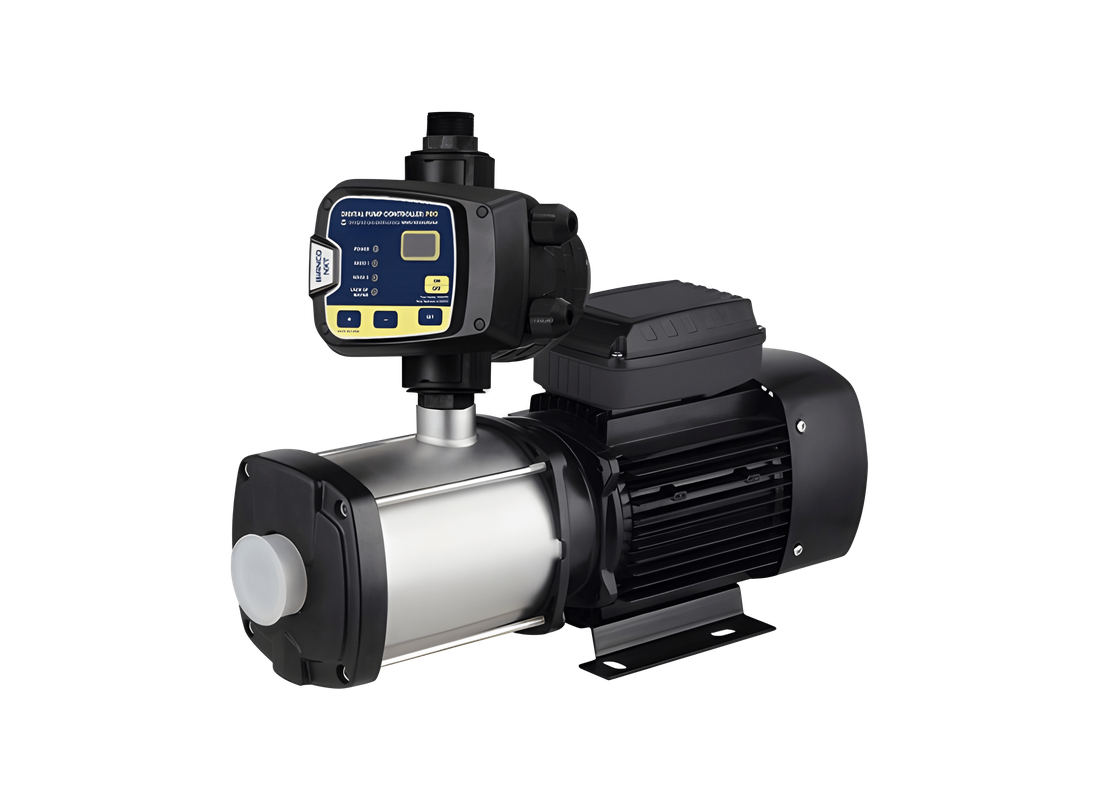

Bianco MULTI36PRO Stainless Steel nXt PRO Horizontal Multistage Pressure Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Designed for consistent pressure delivery, the Bianco MULTI36PRO is a horizontal multistage pump suited for pressure boosting, water transfer, and light irrigation systems. It is commonly installed in residential and semi-rural setups where dependable water supply is required.
The unit is supplied with the Bianco nXt PRO controller, allowing automatic operation with selectable modes. It supports applications such as washing systems, light commercial duties, and domestic water distribution while maintaining efficient and quiet operation.
The pump features stainless steel wetted components for durability and corrosion resistance. Internally, it uses multistage composite impellers and diffusers to achieve efficient pressure generation. A silicon carbide and carbon mechanical seal ensures long-term sealing reliability under operating conditions.
Performance is defined by a maximum head of 55 metres and a maximum flow rate of 70 L/Min, making it suitable for systems requiring higher pressure at moderate flow rates.
A 0.55 kW single-phase motor powers the system, operating on 220–240V. The asynchronous TEFC motor is equipped with inbuilt thermal overload protection and F-class insulation, while the IP45 rating ensures safe operation in varied environments. The integrated controller also includes dry-run protection, frequent start protection, and maximum runtime control.
The pump is capable of handling liquid temperatures from 2°C to 40°C. It operates at a maximum pressure of 12 bar for the pump and 10 bar for the controller. Connections include 1" BSPF inlet and 1" BSPM outlet for standard installation compatibility.
FEATURES
- Multistage pump delivering 70 L/Min flow and 55 m head
- nXt PRO controller with dual-mode automatic operation
- Dry-run, frequent start, and maximum runtime protection
- Stainless steel wetted components for corrosion resistance
- Composite impellers and diffusers for efficient pressure generation
- Silicon carbide and carbon mechanical seal
- 0.55 kW single-phase asynchronous TEFC motor
- IP45 protection rating with F-class insulation
- Maximum pressure: pump 12 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Prewired system with digital display controller
- Suitable for continuous and automatic operation
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 55 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.56 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow rate and head capabilities are delivered during operation?
Higher pressure output reaching a 55-metre head and upto 70 L/Min flow is achieved using the MULTI36_PRO.
What stainless steel components and mechanical seals prevent corrosion?
Long-term sealing reliability under varied operating conditions is secured by silicon carbide seals on the MULTI36 PRO.
What residential and semi-rural installations suit this horizontal multistage pump?
MULTI36PRO delivers consistent pressure for water transfer, boosting, and light irrigation systems.
What automated control functions and protective safeguards are included?
MULTI36PRO incorporates an nXt PRO controller with dry-run protection and maximum runtime control.
What motor specifications and electrical insulation protect this assembly?
MULTI36-PRO utilizes a 0.55 kW single-phase asynchronous TEFC motor featuring F-class insulation.
