Bianco MULTI4-50PRO Stainless Steel nXt PRO Self-Priming Multistage Irrigation Pump Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

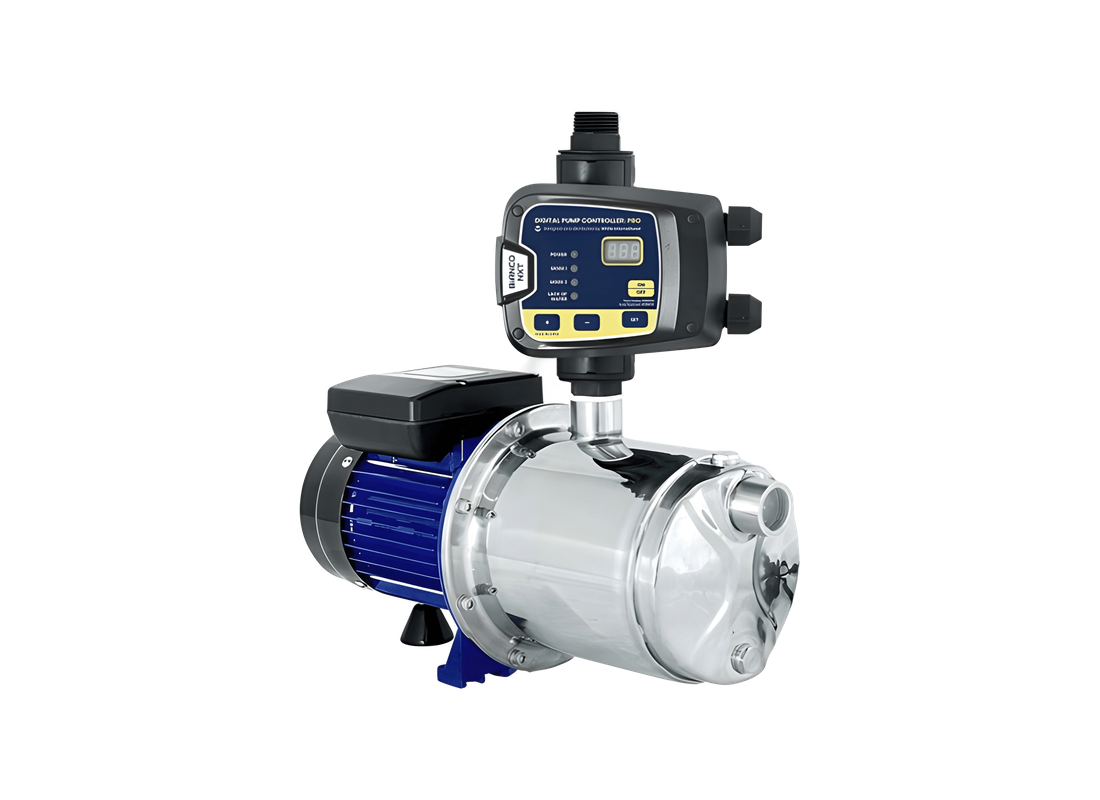

The Bianco MULTI4-50PRO is a horizontal self-priming multistage pump developed for irrigation, water transfer, and pressure boosting systems. It is designed to deliver stable performance in residential, rural, and light commercial environments where consistent pressure is required.
Equipped with the Bianco nXt PRO controller, the system enables automatic operation with selectable modes. It supports applications such as washing systems, light commercial duties, and domestic supply, while maintaining efficient and quiet performance.
The pump features a stainless steel body for durability and corrosion resistance, while the internal multistage hydraulic system utilises composite impellers and diffusers for efficient pressure generation. A silicon carbide and carbon mechanical seal ensures long-term reliability under continuous operation.
This model delivers a maximum flow rate of 98 L/Min and a maximum head of 57.5 metres, making it suitable for applications requiring higher pressure output with consistent flow delivery.
Driven by a 0.75 kW single-phase motor operating on 220–240V, the pump uses an asynchronous TEFC motor with in-built thermal overload protection. It is rated IP45 with F-class insulation for safe and reliable operation. The nXt PRO controller incorporates dry-run protection, frequent start protection, and maximum run-time control.
The unit supports liquid temperatures from 2°C to 40°C and operates at a maximum pressure of 8 bar for the pump and 10 bar for the controller. It is fitted with 1" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility.
FEATURES
- Multistage self-priming pump delivering 98 L/Min flow and 57.5 m head
- nXt PRO controller with dual-mode automatic operation
- Dry-run, frequent start, and maximum run-time protection
- Stainless steel pump body with composite impeller and diffusers
- Self-priming capability for shallow wells and tank systems
- Silicon carbide and carbon mechanical seal
- 0.75 kW single-phase asynchronous TEFC motor
- IP45 protection rating with F-class insulation
- Maximum pressure: pump 8 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Prewired system with digital display controller
- Quiet and efficient operation for continuous duty
SPECIFICATIONS
| Max Flow | 98 L/Min |
| Max Head | 57.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.9 Amps |
| Suitable For | Light Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 36 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What intelligent controller features manage automatic cycling and safety?
MULTI450PRO includes an nXt PRO controller offering dry-run safety and frequent start protection
What maximum flow rate and head performance specifications are featured?
Higher pressure output paired with consistent flow delivery reaching a 57.5-metre head is generated by the MULTI4_50PRO.
What hydraulic materials and mechanical seals ensure continuous operation durability?
Corrosion-resistant stainless steel housings and composite impellers ensure structural durability for the MULTI4 50 PRO.
What residential and commercial environments match this self-priming pump?
MULTI4-50PRO delivers stable performance across irrigation, water transfer, and pressure boosting networks.
What motor size and electrical configuration drive the unit?
MULTI4-50-PRO operates on a 0.75 kW single-phase asynchronous TEFC motor with F-class insulation.
