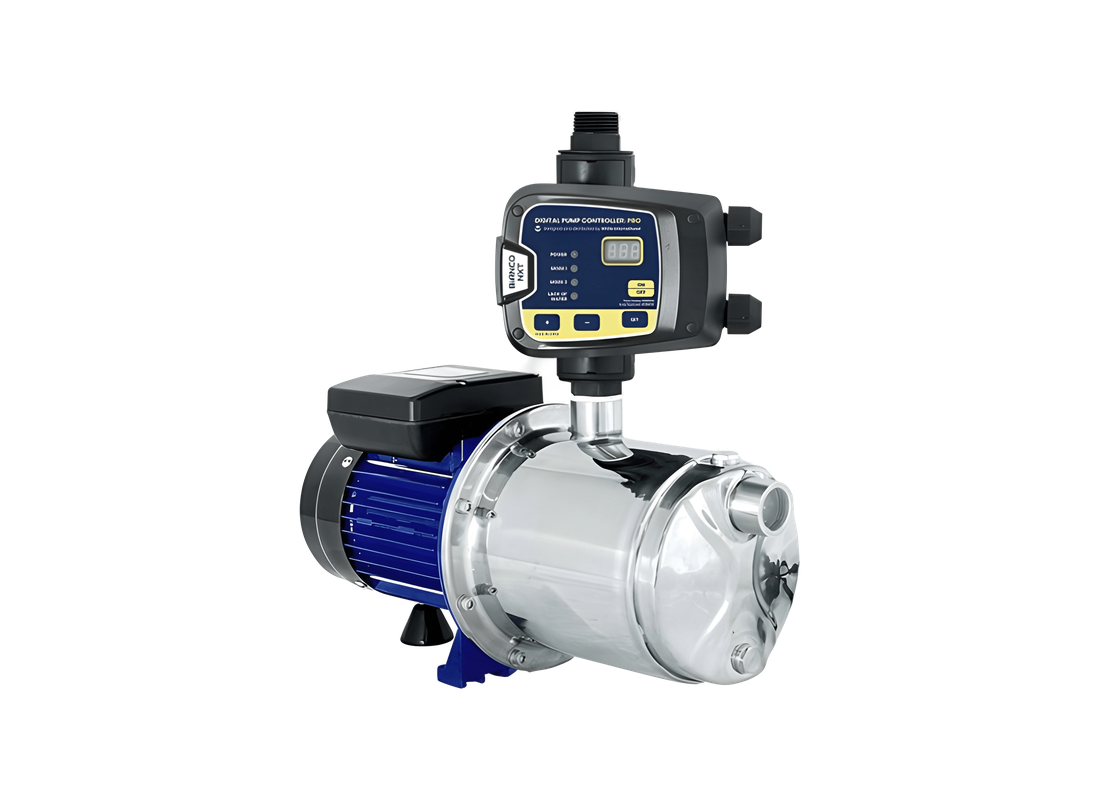

Bianco MULTI5-30PRO Stainless Steel nXt PRO Self-Priming Multistage Washing Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco MULTI5-30PRO is a compact horizontal multistage pump engineered for applications requiring reliable pressure delivery such as water transfer, pressure boosting, and light irrigation systems. Its self-priming capability allows efficient operation when drawing water from tanks or shallow sources.
Performance is defined by a maximum head of 57 metres and a maximum flow rate of 60 L/Min, making it suitable for installations where higher pressure is required with controlled flow output. The multistage hydraulic design supports stable and consistent operation across varying demand conditions.
The unit is powered by a 0.55 kW single-phase motor operating on 220–240V. It features an asynchronous TEFC motor with in-built thermal overload protection, F-class insulation, and an IP45 protection rating. The integrated nXt PRO controller enables automatic operation and includes dry-run protection, frequent start protection, and maximum run-time control.
Constructed with a stainless steel pump body, the pump offers durability and corrosion resistance. Internally, composite impellers and diffusers are used to optimise pressure generation, while a silicon carbide and carbon mechanical seal ensures reliable sealing performance.
The pump is suitable for liquid temperatures from 2°C to 40°C and operates at a maximum pressure of 8 bar for the pump and 10 bar for the controller. It is fitted with 1" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility.
Supplied prewired with the Bianco nXt PRO controller, the system supports dual-mode automatic operation and is commonly used in domestic supply systems, washing applications, and light commercial environments.
FEATURES
- Multistage self-priming pump delivering 60 L/Min flow and 57 m head
- nXt PRO controller with dual-mode automatic operation
- Dry-run, frequent start, and maximum run-time protection
- Stainless steel pump body with composite impeller and diffusers
- Silicon carbide and carbon mechanical seal
- 0.55 kW single-phase asynchronous TEFC motor
- IP45 protection rating with F-class insulation
- Maximum pressure: pump 8 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Prewired system with digital display controller
- Self-priming capability for tank and shallow well use
- Suitable for domestic and light commercial applications
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 57 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.6 Amps |
| Suitable For | Washing Systems |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 36 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor specifications and protection ratings are built into the design?
MULTI5-30-PRO runs on a 0.55 kW single-phase asynchronous TEFC motor with thermal overload protection.
What automated control functions and pre-wired features are integrated?
MULTI530PRO arrives pre-wired with an nXt PRO digital controller for easy setup.
What flow rate and head parameters define performance output?
Controlled flow delivery reaching a upto 60 L/Min maximum and a 57-metre head is achieved by the MULTI5_30PRO.
What internal components optimize pressure generation and prevent wear?
Silicon carbide mechanical seals and composite diffusers optimize pressure generation and sealing performance on the MULTI5 30 PRO.
What domestic supply systems and pressure boosting tasks suit this pump?
MULTI5-30PRO provides reliable water transfer and pressure delivery for shallow sources and tanks.
