SKU: 811650

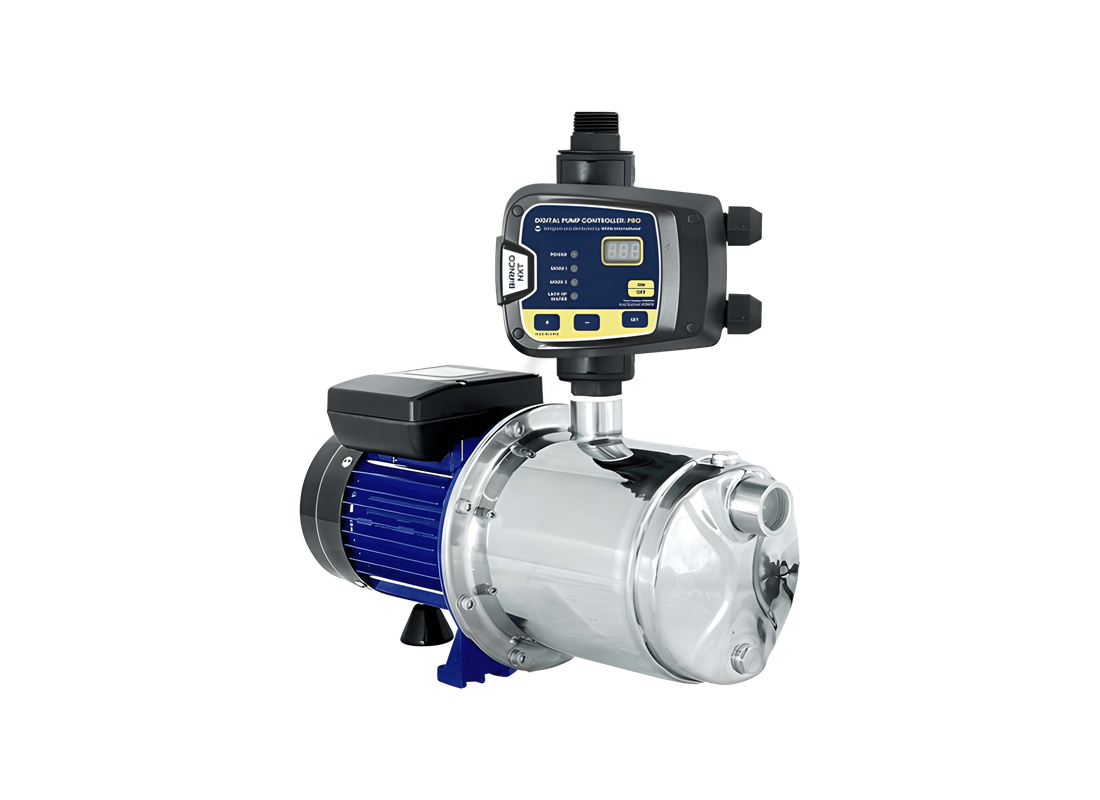

Bianco MULTI5-50PRO Stainless Steel nXt PRO Self-Priming Multistage Water Supply Pump Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Engineered for high-pressure water delivery, the Bianco MULTI5-50PRO is a horizontal multistage self-priming pump designed for domestic supply, water transfer, and light irrigation systems. Its configuration allows reliable operation when drawing water from tanks or shallow sources.
The pump is capable of producing up to 72 metres of head and delivering a maximum flow rate of 98 L/Min, supporting applications where strong pressure output is required alongside consistent flow performance.
Constructed using a stainless steel pump body, the unit provides corrosion resistance and durability in demanding environments. Internally, composite impellers and diffusers are utilised to achieve efficient multistage pressure generation. A silicon carbide and carbon mechanical seal ensures long-term sealing reliability.
The system is driven by a 1 kW single-phase motor operating on 220–240V. It features an asynchronous TEFC motor with in-built thermal overload protection, F-class insulation, and IP45 protection rating. The integrated nXt PRO controller enables automatic operation and includes dry-run protection, frequent start protection, and maximum run-time control.
The pump supports liquid temperatures from 2°C to 40°C and operates at a maximum pressure of 8 bar for the pump and 10 bar for the controller. It is fitted with 1" BSPF inlet and 1" BSPF outlet connections for standard installation compatibility.
Supplied prewired with the Bianco nXt PRO controller, the unit supports dual-mode operation and is suitable for light commercial systems, washing applications, and domestic pressure setups.
FEATURES
- Multistage self-priming pump delivering 98 L/Min flow and 72 m head
- nXt PRO controller with dual-mode automatic operation
- Dry-run, frequent start, and maximum run-time protection
- Stainless steel pump body with composite impeller and diffusers
- Silicon carbide and carbon mechanical seal
- 1 kW single-phase asynchronous TEFC motor
- IP45 protection rating with F-class insulation
- Maximum pressure: pump 8 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Prewired system with digital display controller
- Self-priming capability for tank and shallow well use
- Designed for automatic and continuous operation
SPECIFICATIONS
| Max Flow | 98 L/Min |
| Max Head | 72 m |
| Power | 1 kW / 240v |
| Rated Current | 5.8 Amps |
| Suitable For | Domestic Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 36 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the primary applications and suitable uses for this high-pressure pump?
Domestic water supply, transfer, and light irrigation tasks are supported efficiently by the MULTI5-50PRO.
Which intelligent controller and automated functions are integrated?
Pre-wired with an nXt PRO digital controller, the MULTI550PRO provides dual-mode automatic operation and dry-run safety.
What construction materials and internal components ensure durability?
Corrosion resistance is provided through stainless steel bodies and composite diffusers built inside the MULTI5-50-PRO.
What motor specifications and electrical protections drive the system?
An asynchronous TEFC 1 kW motor with F-class insulation and thermal protection powers the MULTI5 50 PRO.
What maximum flow rate and head performance parameters are achieved?
The MULTI5_50PRO delivers up to 98 L/Min of flow alongside a 72-metre maximum head.
