SKU: 808401

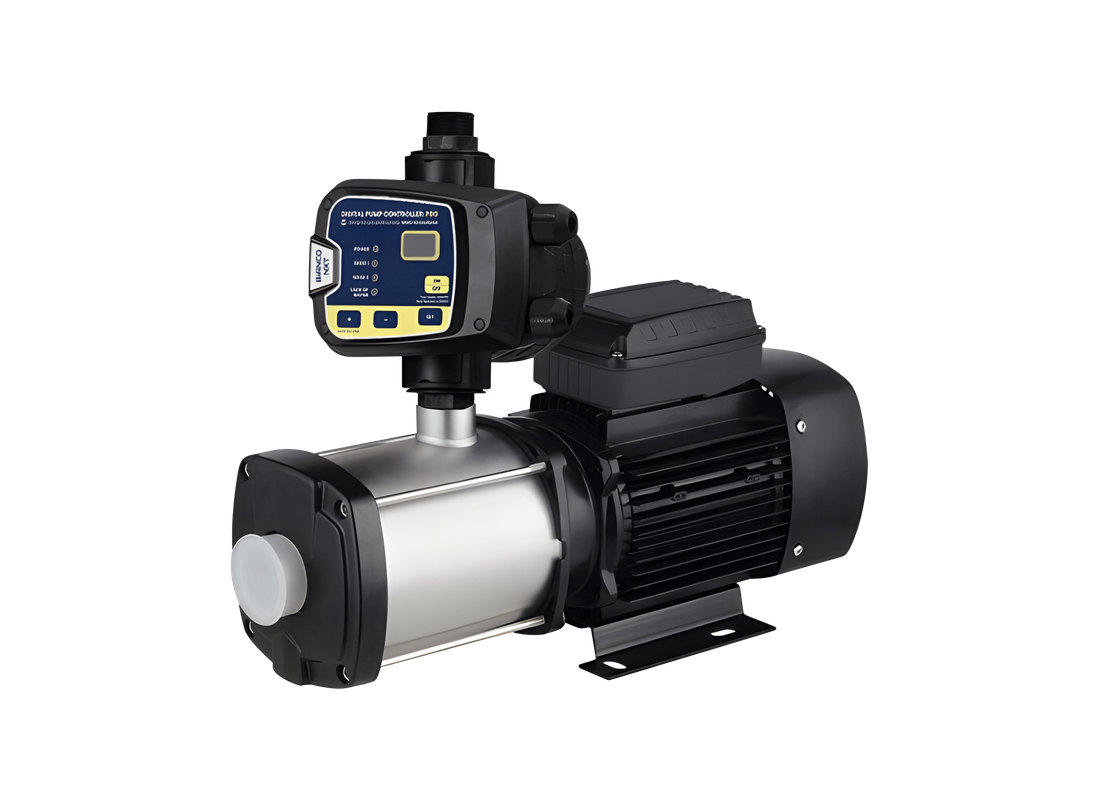

Bianco MULTI56PRO Stainless Steel nXt PRO Multistage Pressure Pump for Water Supply with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
Designed for reliable pressure performance, the Bianco MULTI56PRO is a horizontal multistage pump suited for domestic supply, water transfer, and light irrigation systems. It is engineered to deliver stable operation across installations where consistent pressure is essential.
The pump produces a maximum head of 60 metres and a maximum flow rate of 108 L/Min, making it suitable for systems requiring balanced flow and pressure output.
A 1.3 kW single-phase motor powers the unit, operating on 220–240V. The asynchronous TEFC motor includes inbuilt thermal overload protection, with F-class insulation and an IP45 rating ensuring dependable performance. The integrated nXt PRO controller enables automatic dual-mode operation and includes dry-run, frequent start, and maximum run-time protection.
Constructed with stainless steel wetted components, the pump provides durability and resistance to corrosion. Composite impellers and diffusers are used internally to support efficient multistage operation, while a silicon carbide and carbon mechanical seal ensures reliable sealing performance.
The system supports liquid temperatures from 2°C to 40°C and operates at a maximum pressure of 12 bar for the pump and 10 bar for the controller. It is fitted with 1-1/4" BSPF inlet and 1" BSPM outlet connections for standard installation compatibility.
Supplied prewired with the nXt PRO controller, the pump is suitable for washing systems, light commercial applications, and automated pressure systems requiring consistent operation.
FEATURES
- Multistage pump delivering 108 L/Min flow and 60 m head
- nXt PRO controller with automatic dual-mode operation
- Dry-run, frequent start, and maximum run-time protection
- Stainless steel wetted components for corrosion resistance
- Composite impellers and diffusers for efficient pressure generation
- Silicon carbide and carbon mechanical seal
- 1.3 kW single-phase asynchronous TEFC motor
- IP45 protection rating with F-class insulation
- Maximum pressure: pump 12 bar, controller 10 bar
- Liquid temperature range from 2°C to 40°C
- Prewired system with digital display controller
- Suitable for continuous automatic operation
SPECIFICATIONS
| Max Flow | 108 L/Min |
| Max Head | 60 m |
| Power | 1.3 kW / 240v |
| Rated Current | 8.64 Amps |
| Suitable For | Water Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor size and electrical ratings drive the mechanical build?
An asynchronous 1.3 kW single-phase motor equipped with F-class insulation powers the MULTI56-PRO.
What setup environments and fluid transfer duties match this multistage pump?
Domestic supply and light irrigation installations rely on the consistent pressure delivered by the MULTI56PRO.
What corrosion-resistant materials comprise the wetted components?
Stainless steel wetted components and silicon carbide mechanical seals equip the MULTI56 PRO for long-term durability.
What balanced flow rate and head specifications are featured?
The MULTI56_PRO produces a maximum head of 60 metres.
What temperature parameters and port connections suit standard plumbing?
Liquid temperatures from 2°C to 40°C are handled safely through 1-1/4" inlet and 1" outlet ports on the MULTI56PRO.
