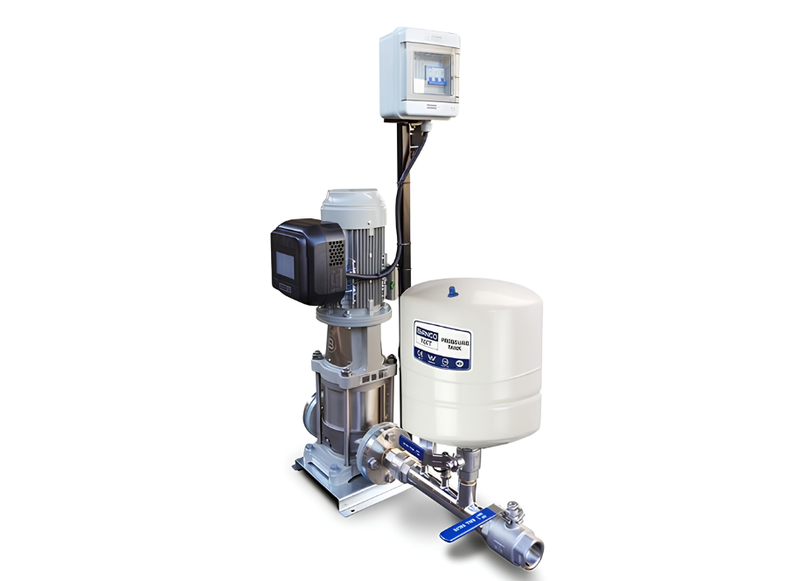

Bianco NXT Summit BIA-1VMS3/8M-TRAN Transducer Controlled Vertical Multistage Booster Pump Set with 18L Tank
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco NXT Summit BIA-1VMS3/8M-TRAN Transducer Controlled Booster Pump Set is a complete, professional-grade constant pressure water boosting system designed for commercial, residential and light industrial water supply applications. Combining a Bianco NXT VMS vertical multistage pump with intelligent pressure transducer control, the system provides dependable automatic operation in a compact, pre-engineered package.
At the heart of the system is the Bianco NXT VMS3/8M vertical multistage pump, delivering a maximum head of 85 metres and maximum flow of 58 LPM. The pump features high-quality 304 stainless steel wetted components, including the pump body, shaft and impeller, providing excellent durability and corrosion resistance for clean water applications.
System operation is controlled by a 4–20mA pressure transducer connected to a Bianco NXT SPC1-22 Single Pump Controller. This provides precise digital pressure adjustment and automatic pump operation according to system pressure requirements.
The complete Summit package includes the pump, controller, stainless steel manifold, pressure transducer, pressure gauge, spring check valve, ball valve, galvanised base and an 18L 10 bar pressure tank. The horizontal inline manifold arrangement provides matching inlet and outlet connections for a compact and professional installation.
Designed for demanding operating conditions, the system is suitable for liquid temperatures from -20°C to +120°C, features a 1.1kW 230V single-phase motor, and is backed by a 2-year Bianco NXT warranty.
Key Features
- Complete transducer-controlled booster pump set
- Bianco NXT VMS3/8M vertical multistage pump
- 4–20mA pressure transducer for accurate pressure monitoring
- Bianco NXT SPC1-22 Single Pump Controller
- Precise digital pressure adjustment
- Maximum head of 85 metres
- Maximum flow of 58 LPM
- 1.1kW / 230V single-phase motor
- 304 stainless steel pump body, shaft and impeller
- Graphite / SiC mechanical seal
- 18L 10 bar pressure tank included
- 304 stainless steel manifold
- Watermarked spring check valve
- 304 stainless steel ball valve
- 30 bar liquid-filled pressure gauge
- Compact horizontal inline manifold arrangement
- Removable coupling allows motor replacement without removing the pump from the pipeline
- Pump bearings lubricated by the pumped water
- Totally enclosed, fan-cooled 2-pole motor
- IP55 motor protection
- Quiet operation
- Designed for liquid temperatures from -20°C to +120°C
- System functionally tested with individual pump certification
- 2-year Bianco NXT warranty
What's Included
- Bianco NXT VMS3/8M vertical multistage pump
- Bianco NXT SPC1-22 Single Pump Controller
- 4–20mA pressure transducer
- Stainless steel counter flange
- Fibre gasket to suit counter flange
- Watermarked spring check valve
- 304 stainless steel manifold
- 30 bar liquid-filled pressure gauge
- Galvanised base
- 304 stainless steel ball valve
- 18L 10 bar pressure tank
- Complete assembled booster pump package
SPECIFICATIONS
| Max Flow | 58 LPM |
| Max Head | 85 m |
| Power | 1.10 kW / 230v |
| Rated Current | 6.44 Amps |
| Suitable For | Commercial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -20°C – 120°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
