Bianco PTF37M Cast Iron End-Suction Peripheral Turbine Pressure Boosting Pump Single Impeller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview

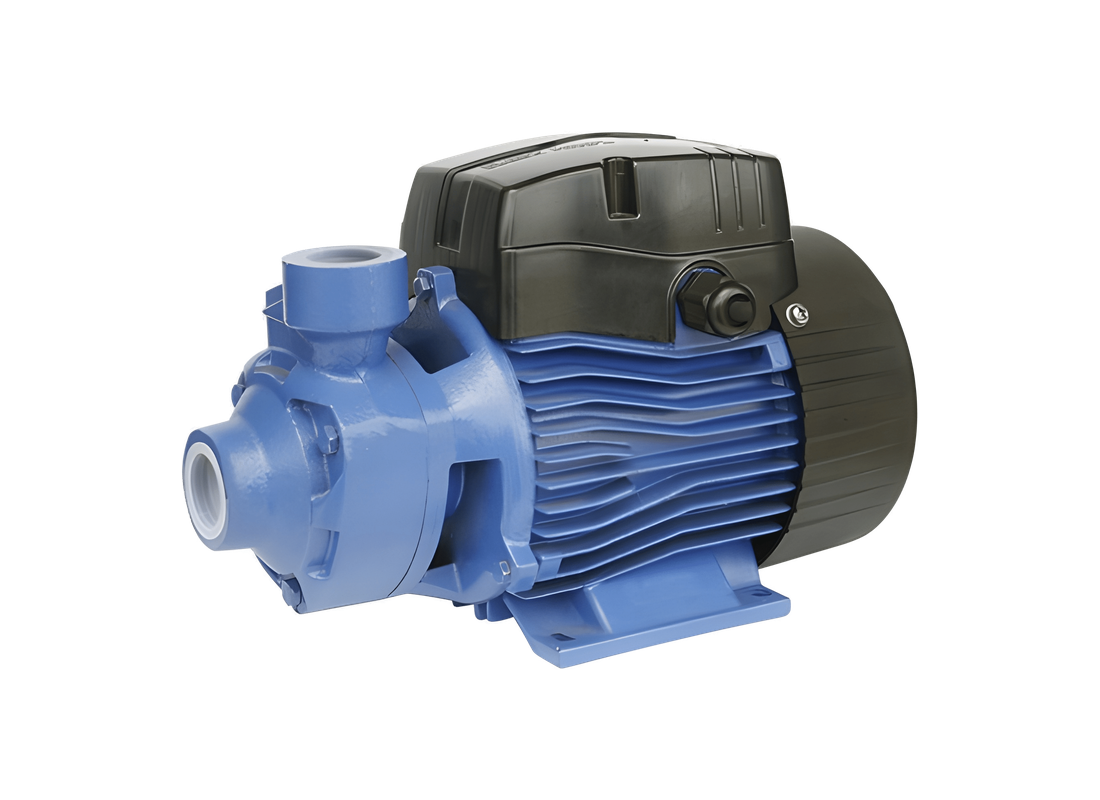

Designed for applications requiring high pressure at low flow rates, the Bianco PTF37M is a compact peripheral turbine pump suited to clean water systems with flooded suction. It is commonly used in domestic and commercial environments including pressure boosting, gardening, and water transfer.
The pump delivers a maximum flow rate of 40 L/Min and a maximum head of 40 metres, making it ideal for applications where pressure is more critical than volume.
Constructed with a cast iron housing featuring a cataphoresis corrosion-resistant coating, the unit incorporates a bronze impeller for efficient pressure generation. A carbon, ceramic, and nitrile mechanical seal ensures reliable sealing performance in continuous operation.
Powered by a 0.37 kW single-phase 240v close-coupled TEFC motor, the pump includes inbuilt thermal overload protection, F-class insulation, and IP44 protection. It supports liquid temperatures from 3°C to 40°C and operates up to 6 bar, with 1" BSPF inlet and outlet connections for standard installation compatibility.
FEATURES
- Peripheral turbine pump delivering 40 L/Min flow and 40 m head
- Designed for high pressure and low flow applications
- Cast iron housing with corrosion-resistant coating
- Bronze impeller for efficient pressure generation
- Carbon, ceramic, and nitrile mechanical seal
- 0.37 kW single-phase 240v TEFC motor
- Inbuilt thermal overload protection
- F-class insulation with IP44 protection rating
- Maximum operating pressure up to 6 bar
- Liquid temperature range from 3°C to 40°C
- 1" BSPF inlet and outlet connections
- Compact and simple close-coupled design
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 40 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.5 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pressure thresholds and port connection sizes are built into the unit?
Operating up to 6 bar pressure, standard 1" BSPF inlet and outlet ports equip the PTF37M.
What commercial and domestic clean water systems suit this peripheral turbine pump?
Gardening, water transfer, and domestic pressure boosting rely on the PTF37M turbine design.
What cataphoresis-coated housing and bronze impeller materials are engineered?
Cataphoresis-coated cast iron housings and bronze impellers protect the core of the PTF-37-M.
What single-phase motor power and thermal protection safeguard the mechanism?
PTF37 M features a 0.37 kW single-phase 240v close-coupled TEFC motor with thermal protection.
What high-pressure and low-flow performance specifications are delivered?
The PTF37_M produces a flow rate upto 40 L/Min alongside a 40-metre head.
