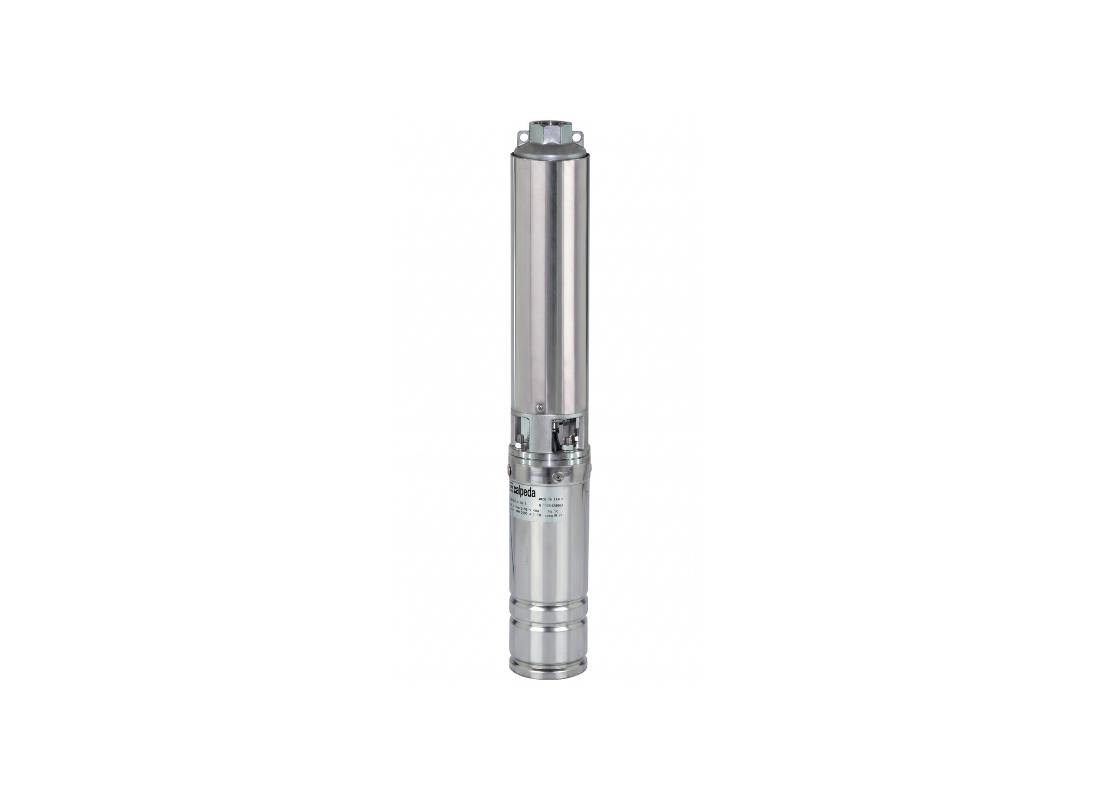

Municipal systems and bulk water distribution requiring extreme hydraulic force from deep 4-inch wells are the primary application for this high-pressure submersible pump. It is designed to handle clean liquids containing sand concentrations up to 300 g/m³ and supports continuous duty for large civil infrastructure projects.
A 7.5 kW three-phase motor at 415V drives the 27-stage assembly, achieving a maximum head of 130 meters and a peak flow of 400 L/Min. The mechanical interface conforms to NEMA standards, ensuring a secure connection to high-output 4-inch submersible borehole motors.
Within each stage, LEXAN floating impellers can move axially against polycarbonate diffusers, helping to prevent seizure when sand particles pass through the casing. Consistent operation is maintained during high-capacity transfer duty from significant depths.
AISI 304 stainless steel forms the external jacket, with a delivery casing incorporating a built-in non-return valve to protect the hydraulics and motor from backflow and reverse rotation during shutdown. Rated for water up to 35°C, the assembly includes a chrome-nickel steel suction lantern and a Class F insulated motor.
FEATURES
- LEXAN radial floating impellers are designed to handle sand while reducing internal mechanical binding risk
- Reinforced polycarbonate diffusers optimize fluid velocity while reducing internal turbulence and energy consumption
- Twenty-seven-stage hydraulic assembly delivers 130 meters of head for high-flow municipal projects
- AISI 304 stainless steel external jacket provides structural rigidity and protection against underground corrosion
- Integrated non-return valve protects the system from backflow and reduces water hammer impact
- NEMA-standard coupling ensures compatibility with standardised submersible motors
- Chrome-nickel steel suction lantern blocks mineral debris and oversized particulates from the intake
- Class F insulation and IP68 protection support continuous duty in deep, fully submerged boreholes
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
