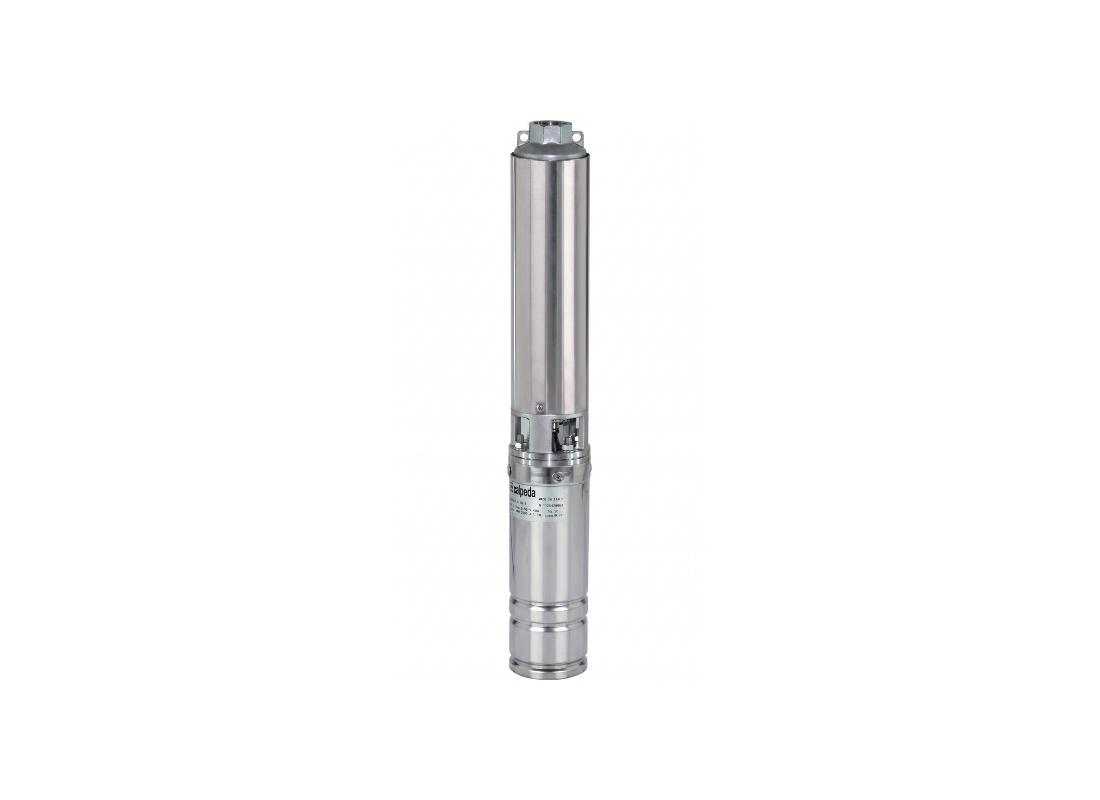

Water supply and agricultural irrigation requiring high-lift groundwater recovery from standard 4-inch borehole installations are the primary application for this submersible pump. It is configured to process liquids with sand content up to 300 g/m³ and supports continuous service for high-volume pressurised distribution networks.
A 2.2 kW motor at 415V drives the 13-stage assembly, achieving a peak head of 75 meters and a flow rate of 220 L/Min. The mechanical interface conforms to NEMA flange standards, providing a reliable connection point for high-performance submersible borehole motors.
Durable LEXAN floating impellers move axially within each stage to accommodate sand particles, helping to protect the polycarbonate diffusers from abrasive impact during high-capacity transfer operations.
AISI 304 stainless steel forms the external jacket, with a delivery casing incorporating a built-in non-return valve to shield the internal hydraulics from back-pressure and reverse rotation. Rated for liquids up to 35°C, the unit includes a chrome-nickel steel suction lantern and a Class F insulated motor.
FEATURES
- Special radial floating impellers facilitate sand passage while reducing internal mechanical binding risk
- Reinforced polycarbonate diffusers enhance fluid velocity and reduce operational energy consumption
- Thirteen-stage hydraulic design generates 75 meters of head for high-flow domestic and agricultural water supply
- AISI 304 stainless steel jacket provides a corrosion-resistant shell for deep borehole immersion
- Built-in non-return valve protects the motor and stages from reverse rotation and column water weight
- NEMA-standard coupling enables flexible pairing with various submersible motors
- Chrome-nickel steel suction lantern provides a barrier against oversized solids and mineral particulates
- Class F insulation and IP68 protection support continuous duty in fully submerged wells
