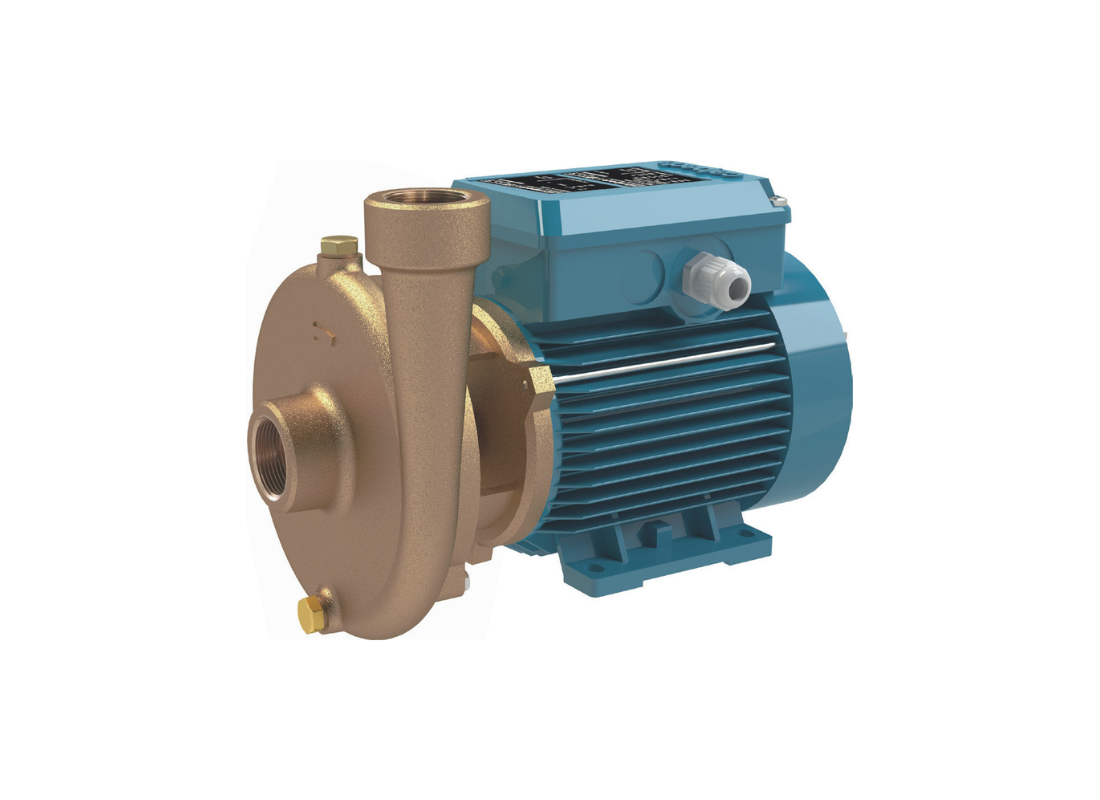

Compact auxiliary liquid systems handling emulsions or lightly contaminated fluids can integrate the Calpeda BCM 16/1 where bronze hydraulic construction and unrestricted circulation characteristics are required. Its centrifugal open-impeller arrangement suits smaller utility applications operating within limited installation space while maintaining dependable liquid passage.
Hydraulic capability reaches 2.4 m³/h maximum flow with discharge head extending to 5 m, supporting controlled low-pressure liquid movement through compact piping systems. The pump operates through a 230V single-phase induction motor utilizing 0.29 kW maximum input power with operating current of 1.2 A while maintaining rotational speed near 2900 rpm.
Inside the hydraulic section, the open impeller arrangement supports passage of suspended particles up to 4 mm without creating excessive internal restriction. The centrifugal flow path assists smooth circulation behaviour for lightly contaminated liquids and emulsions during varying operating conditions.
Bronze manufacture across the hydraulic casing and wetted sections contributes corrosion resistance during operating service. Carbon ceramic mechanical seal faces combined with NBR elastomer support components assist shaft sealing reliability, while the motor assembly incorporates capacitor-start operation, built-in thermal protection, IP54 enclosure protection, and class F insulation. Operating capability supports liquid temperatures from -10°C to 90°C with permissible working pressure up to 6 bar.
FEATURES- Bronze hydraulic structure supporting corrosion-resistant liquid handling duties
- Open impeller geometry assisting suspended particle passage up to 4 mm
- Compact centrifugal arrangement suited to confined installation environments
- Single-phase 230V induction motor operating near 2900 rpm rotational speed
- Integrated capacitor-start motor configuration with thermal protection system
- Carbon ceramic mechanical seal assembly with NBR elastomer support materials
- Class F insulated motor enclosure with IP54 environmental protection
- Close-coupled pump layout reducing installation alignment complexity
