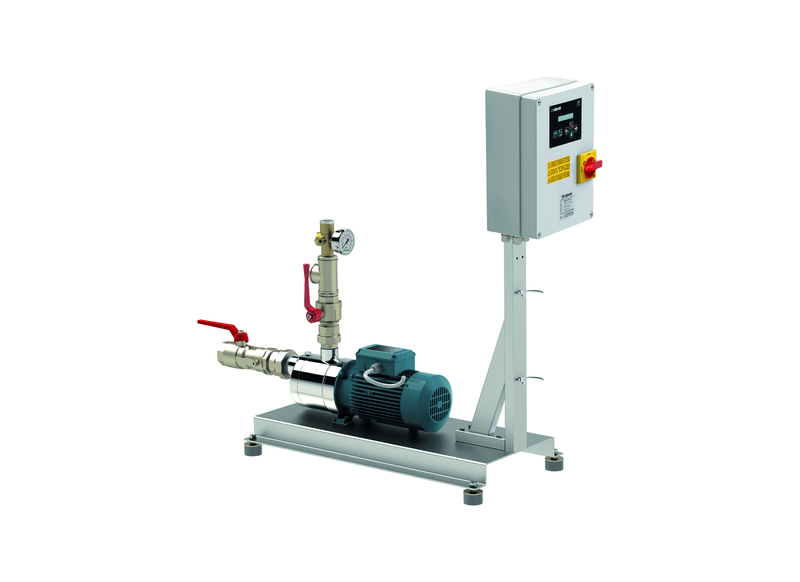

Calpeda BS1F 1MXH 2001 Three Phase 1.8kW Fixed Speed Single Pump Multistage Booster System
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Commercial facilities needing brisk water transfer across moderate building heights find an ideal match in the Calpeda BS1F 1MXH 2001 booster package. Powered by a single Calpeda MXH 2001 horizontal multistage pump, this turnkey skid supplies up to 400 L/Min. Where high-pressure boosting is needed, the hydraulic stages can produce up to 15.6 m of head. It is purpose-built for large apartment blocks, gymnasiums, and commercial kitchens where steady manifold pressure is essential.
Automatic pressure regulation depends on differential pressure switches with a microprocessor control board that continuously tracks hydraulic demand. When open fixtures draw manifold pressure down to the cut-in threshold, the processor engages the motor smoothly and holds duty until system pressure is replenished. Anti-hunting delay logic stops rapid cycling during trickle demand, preserving starter contacts and smoothing out hydraulic transients.
Fabricated from corrosion-resistant stainless steel AISI 304, the manifold assembly pairs a generous 50 mm suction header with a 40 mm discharge line to minimize friction loss. Factory-fitted isolation ball valves and non-return check valves enable rapid maintenance isolation while preventing back-siphoning through the pump. A dedicated manifold port for an external expansion vessel sits alongside an easy-to-read system pressure gauge.
energized by a standard three-phase 415 V electrical feed, the pump drive utilizes a three-phase 230/400 V motor winding rating built to IEC 60034 specifications. The fan-cooled 2-pole induction motor runs at 2900 rpm (50 Hz) and features Class F insulation for reliable thermal performance under continuous load. Delivering 1.8 kW (P2) of mechanical power, the unit draws 4.8 A at peak duty.
Key Features
- High-Efficiency Impeller Design: Incorporates a 2-stage stainless steel hydraulic end optimized for high-volume water boosting at moderate heads.
- Microprocessor Switch Logic: Coordinates differential pressure switch signals with electronic timers to prevent short-cycling and water hammer.
- AISI 304 Stainless Headers: Hygienic suction and delivery manifolds resist corrosion and scaling in both potable and hot water systems.
- Versatile Liquid Temperature Rating: Operates safely across fluid temperatures from -15 °C to +110 °C for diverse commercial applications.
- Plant Room Enclosure Protection: Motor housing meets IP54 ingress standards to shield internal components from airborne dust and moisture.
- Serviceable Valve Arrangement: Pre-installed isolation ball valves and check valves simplify field servicing and stop reverse flow.
- Accumulator Ready Manifold: Features a built-in connection port for straightforward integration with a floor-mounted diaphragm tank.
- Complete Skid Package: Delivered factory assembled, hydrostatically tested, and supported by a 24 Months manufacturer warranty.
What's Included
- 1 x Calpeda MXH 2001 horizontal multistage pump
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Microprocessor control board with differential pressure switches
- System pressure gauge
- Factory assembled and tested boosting plant
- Supports a 1000 L galvanised diaphragm expansion tank
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 15.6 m |
| Power | 1.8 kW / 415v |
| Rated Current | 4.8 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor kilowatt power output and power phase configuration drive this booster?
Three-phase 400V 50 Hz line voltage energizes the 1.1 kW motor on the Calpeda Fixed Speed Booster Set BS1F 1MXH 2001, directed by an automated fixed-speed control panel (400V).
Under what maximum static head elevation and line pressure limits does this package operate?
Hydraulic pressure testing certifies the BS1F 1MXH 2001 for up to 15.6 metres of elevation head and a maximum casing pressure of 10 bar across -15°C to +110°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Manufactured with AISI 304 chromium-nickel stainless steel wetted components, the BS1F-1MXH-2001 is mounted on a Zinc-plated Steel S235JR baseplate and fitted with isolating valves, a non-return valve, and G 2 suction with G 1 1/2 delivery connections.
What manufacturer warranty protection coverage supports this fixed speed pumping assembly?
Calpeda manufacturer warranty coverage defends the BS1F 1 MXH 2001, providing comprehensive defect protection for the stainless pump wet end, electric motor, and automated control console from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
At maximum duty conditions, the 1MXH 2001 (BS1F 1MXH 2001) supplies an unimpeded peak flow of 400 L/min (24 m³/h) into building water circuits.
