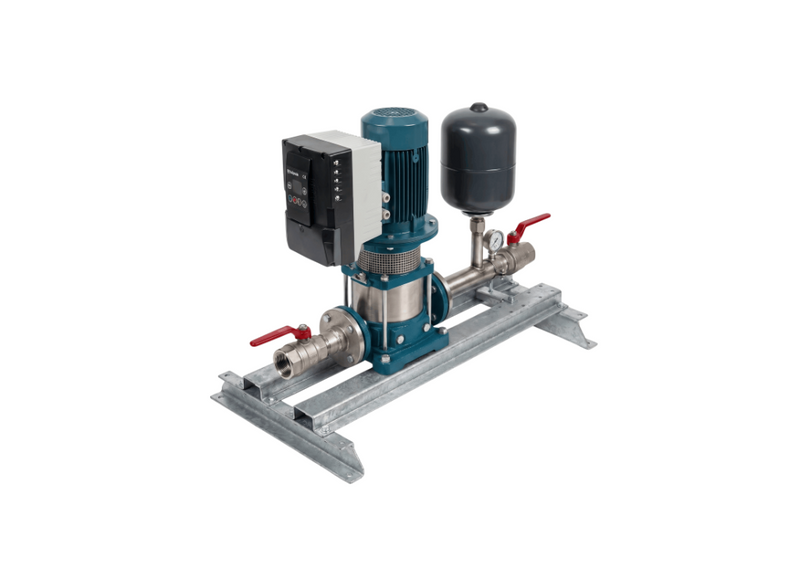

Calpeda BS1V 1MXV 50-1512-ITT Three Phase 9.2kW Variable Speed Single Pump Booster Set with I-MAT Converter

Multi-storey commercial infrastructure requires robust water boosting to handle simultaneous fixture usage. This variable-speed booster package is built around 1 Calpeda MXV 50-1512 vertical multistage pump to deliver smooth and dependable hydraulic performance. Under peak water demand, the unit achieves a maximum flow rate of 400 L/Min to service multiple fixtures concurrently. When operating against closed discharge valves, the multi-stage assembly generates a maximum shut-off head of 159 m to overcome static building elevation.

Continuous line pressure stability is sustained by a motor-mounted Calpeda I-MAT frequency converter linked with an electronic pressure transducer. The variable speed drive continuously tracks pipeline pressure and modulates impeller rotational speed to match consumer draw-off in real time. Controlled acceleration and deceleration ramp profiles eliminate hydraulic water hammer, substantially reducing mechanical stresses on building pipework and valves. Integrated electronic safety functions provide automatic shut-off protection against dry running, overcurrent, and phase supply faults.

Manufactured with premium AISI 304 stainless steel, the pump casing, intermediate diffuser stages, impellers, and drive shaft provide exceptional corrosion resistance and operational durability. Hydraulic manifolds feature matching 50 mm suction and discharge ports equipped with standardized G 2" BSP threaded pipe fittings for straightforward site connection. The complete assembly mounts onto a heavy-duty AISI 304 structural baseplate, furnished with premium isolation ball valves, an inline non-return valve, an analog pressure gauge, and a factory-fitted expansion vessel.

Mechanical drive is delivered through a high-efficiency 2-pole induction motor engineered specifically for Australian three-phase 400 V (50 Hz) electrical networks. Operating smoothly at a rated speed of 2900 rpm, the electric drive generates 9.2 kW (P2) of shaft power and draws 17.5 A under full rated operational load. Heavy-duty construction ensures continuous mechanical endurance and optimal energy conversion across all daily commercial demand cycles.

Key Features

• Vertical multistage 12-stage hydraulic architecture delivers smooth and balanced pressure accumulation across intermediate chambers.
• An integrated motor-mounted Calpeda I-MAT variable frequency inverter continuously modulates motor speed to sustain constant line pressure.
• Durable AISI 304 stainless steel pump casing, intermediate stage chambers, and impellers offer superior resistance to corrosion and wear.
• The heavy-duty motor enclosure is sealed to IP55 ingress standards with Class F winding insulation to withstand harsh plant room conditions.
• Verified operating limits reliably circulate clean commercial liquids across a broad working temperature spectrum of -15 °C to +110 °C.
• Controlled acceleration and deceleration ramp profiles eliminate sudden pipe stresses and safeguard building pipework from water hammer.
• Comprehensive electronic diagnostics provide automated shutdown protection against dry-running, motor overcurrent, and incoming phase errors.
• Standardized G 2" BSP threaded pipe connections simplify site manifold alignment and speed up installation routines.
• Backed by a 24-month manufacturer warranty from Calpeda Pumps Pty Ltd.

What's Included

• 1 x Calpeda MXV 50-1512 vertical multistage pump
• 1 x Motor-mounted Calpeda I-MAT variable frequency inverter drive
• 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
• 1 x AISI 304 stainless steel suction line with isolation ball valve and non-return valve
• 1 x AISI 304 stainless steel delivery line with isolation ball valve and visual pressure gauge
• 1 x Digital electronic pressure transducer pre-wired to the I-MAT inverter
• 1 x Heavy-duty AISI 304 stainless steel structural mounting baseplate
