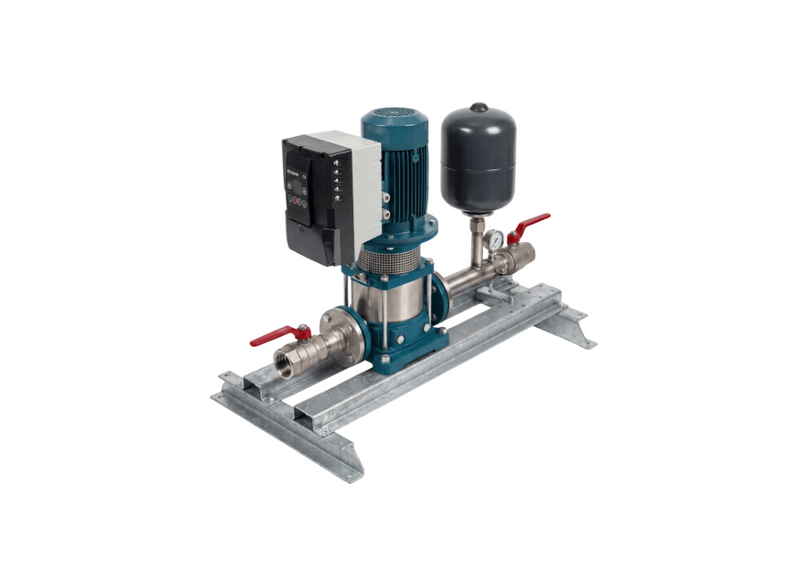

Calpeda BS1V 1MXV 50-1517-ITT Three Phase 15kW Variable Speed Single Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Commercial building installations rely on automated line boosting to prevent pressure fluctuations across outlets. This variable-speed booster package is built around 1 Calpeda MXV 50-1517 vertical multistage pump to deliver smooth and dependable hydraulic performance. Under peak water demand, the unit achieves a maximum flow rate of 400 L/Min to service multiple fixtures concurrently. When operating against closed discharge valves, the multi-stage assembly generates a maximum shut-off head of 224 m to overcome static building elevation.
Automated line pressure management is directed by a motor-mounted Calpeda I-MAT frequency inverter operating in conjunction with an electronic pressure transducer. By continuously sampling downstream line pressure, the frequency drive smoothly varies pump operating velocity to satisfy dynamic facility draw requirements. Gradual motor acceleration dampens hydraulic shocks and eliminates water hammer, extending the operational life of connected piping and plumbing fixtures. The integrated control suite offers complete digital protection against dry operation, motor overcurrent, and incoming phase irregularities.
High-grade AISI 304 stainless steel fabrication across the pump casing, intermediate stage chambers, impellers, and shaft ensures superior corrosion resistance and hygiene. Hydraulic pipework incorporates matching 50 mm suction and discharge connections with heavy-duty G 2" BSP threaded fittings for simplified mechanical installation. The entire booster station is rigidly secured upon an AISI 304 stainless steel baseplate and comes complete with isolation ball valves, an inline non-return check valve, a visual pressure gauge, and a membrane pressure vessel on the delivery header.
The driving motor comprises an energy-efficient 2-pole induction unit designed for standard Australian three-phase 400 V (50 Hz) commercial electrical mains. Running at a rated full-load speed of 2900 rpm, it produces 15 kW (P2) of mechanical shaft output while drawing a rated full-load current of 27.5 A. Engineered for high continuous duty cycles, the precision-balanced drive ensures dependable and quiet operational performance in commercial plant room installations.
Key Features
- Vertical multistage 17-stage hydraulic architecture delivers smooth and balanced pressure accumulation across intermediate chambers.
- An integrated motor-mounted Calpeda I-MAT variable frequency inverter continuously modulates motor speed to sustain constant line pressure.
- Durable AISI 304 stainless steel pump casing, intermediate stage chambers, and impellers offer superior resistance to corrosion and wear.
- The heavy-duty motor enclosure is sealed to IP55 ingress standards with Class F winding insulation to withstand harsh plant room conditions.
- Verified operating limits reliably circulate clean commercial liquids across a broad working temperature spectrum of -15 °C to +110 °C.
- Controlled acceleration and deceleration ramp profiles eliminate sudden pipe stresses and safeguard building pipework from water hammer.
- Comprehensive electronic diagnostics provide automated shutdown protection against dry-running, motor overcurrent, and incoming phase errors.
- Standardized G 2" BSP threaded pipe connections simplify site manifold alignment and speed up installation routines.
- Backed by a 24-month manufacturer warranty from Calpeda Pumps Pty Ltd.
What's Included
- 1 x Calpeda MXV 50-1517 vertical multistage pump
- 1 x Motor-mounted Calpeda I-MAT variable frequency inverter drive
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 1 x AISI 304 stainless steel suction line with isolation ball valve and non-return valve
- 1 x AISI 304 stainless steel delivery line with isolation ball valve and visual pressure gauge
- 1 x Digital electronic pressure transducer pre-wired to the I-MAT inverter
- 1 x Heavy-duty AISI 304 stainless steel structural mounting baseplate
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 224 m |
| Power | 15 kW / 415v |
| Rated Current | 27.5 Amps |
| Suitable For | Industrial Utility Water Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum static head and casing pressure thresholds does this assembly meet?
Vertical lift development on the Calpeda BS1V 1MXV 50-1517-ITT Variable Speed Booster Set with I-MAT Three Phase 400V attains a maximum elevation head of 224 metres with a maximum casing pressure of 25 bar, handling clean fluids at temperatures from -15 °C to +110 °C.
What corrosion proof wetted metallurgy and manifold connection port sizes are incorporated?
Built with AISI 304 chromium-nickel stainless steel and AISI 304 stainless steel impellers seated on a Nickel-plated Steel S235JR Baseplate, the BS1V 1MXV 50-1517-ITT includes a Hard Metal-Carbon-EPDM mechanical seal with G 2" BSP suction and G 2" BSP delivery connections.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
The BS1V-1MXV-50-1517-ITT is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
The BS1V 1 MXV 50 1517 ITT delivers up to 400 L/min (24 m³/h) of clean water, regulating speed dynamically to maintain set line pressure.
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS1V 1MXV 50-1517-ITT connects to Three Phase 400 V mains at 50 Hz, powering a 15 kW (20 HP) electric motor modulated by a mounted Calpeda I-MAT variable speed drive.
