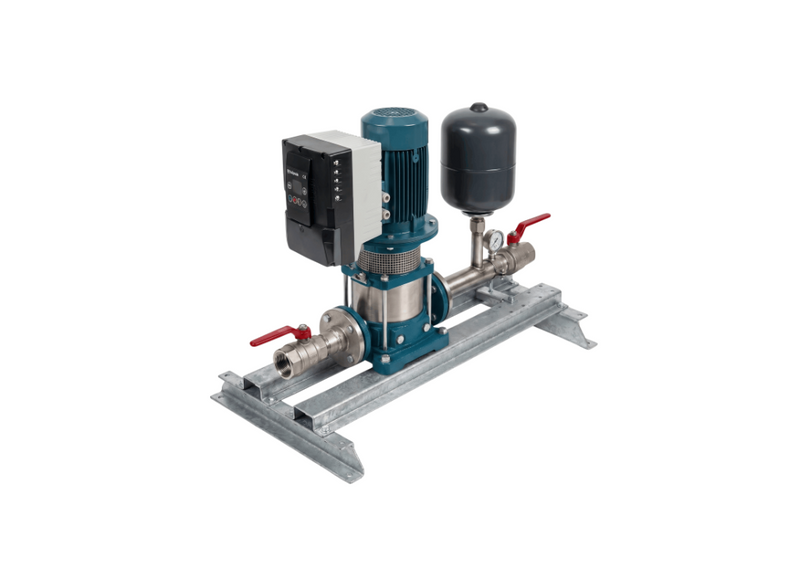

Calpeda BS1V 1MXV 65-3210-ITT Three Phase 18.5kW Variable Speed Single Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Commercial water distribution networks demand steady pressure boosting to overcome friction and static lift. This variable-speed booster package is built around 1 Calpeda MXV 65-3210 vertical multistage pump to deliver smooth and dependable hydraulic performance. Under peak water demand, the unit achieves a maximum flow rate of 733 L/Min to service multiple fixtures concurrently. When operating against closed discharge valves, the multi-stage assembly generates a maximum shut-off head of 172 m to overcome static building elevation.
Dynamic line pressure regulation is governed by an intelligent motor-mounted Calpeda I-MAT frequency converter paired with an electronic pressure transducer. As water consumption varies throughout the day, the inverter automatically adjusts motor rotation speed to maintain the pre-set system pressure without fluctuation. Soft-starting and progressive speed ramp-down prevent damaging pressure surges and pipe water hammer while optimizing electricity consumption during low-demand periods. Comprehensive digital diagnostics safeguard the installation against dry-run events, electrical overloads, and incoming voltage abnormalities.
Built for demanding commercial duty, the hydraulic assembly utilizes a robust Cast Iron GJL 250 pump casing paired with AISI 304 stainless steel outer sleeve, stage chambers, impellers, and pump shaft. Fluid connections integrate matching 65 mm suction and delivery manifolds tapped to standard G 2 1/2" BSP threaded specifications for streamlined site plumbing. Mounted upon a sturdy AISI 304 stainless steel base frame, the package includes full-flow isolation ball valves, a spring-loaded non-return check valve, an analog pressure gauge, and a dedicated pressure buffer vessel.
Motive power is provided by a heavy-duty 2-pole induction electric motor configured for standard Australian three-phase 400 V (50 Hz) electrical supplies. The electric drive operates at a rated full-load speed of 2900 rpm, delivering 18.5 kW (P2) of mechanical shaft power with a rated full-load current draw of 34 A. Built with premium motor winding insulation for demanding commercial plant rooms, the assembly delivers smooth acoustic operation and long mechanical service life.
Key Features
- Vertical multistage 10-stage hydraulic architecture delivers smooth and balanced pressure accumulation across intermediate chambers.
- An integrated motor-mounted Calpeda I-MAT variable frequency inverter continuously modulates motor speed to sustain constant line pressure.
- A rugged Cast Iron GJL 250 pump casing paired with AISI 304 stainless steel stage chambers and impellers delivers exceptional mechanical strength and wear resistance.
- The heavy-duty motor enclosure is sealed to IP55 ingress standards with Class F winding insulation to withstand harsh plant room conditions.
- Verified operating limits reliably circulate clean commercial liquids across a broad working temperature spectrum of -15 °C to +110 °C.
- Controlled acceleration and deceleration ramp profiles eliminate sudden pipe stresses and safeguard building pipework from water hammer.
- Comprehensive electronic diagnostics provide automated shutdown protection against dry-running, motor overcurrent, and incoming phase errors.
- Standardized G 2 1/2" BSP threaded pipe connections simplify site manifold alignment and speed up installation routines.
- Backed by a 24-month manufacturer warranty from Calpeda Pumps Pty Ltd.
What's Included
- 1 x Calpeda MXV 65-3210 vertical multistage pump
- 1 x Motor-mounted Calpeda I-MAT variable frequency inverter drive
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 1 x AISI 304 stainless steel suction line with isolation ball valve and non-return valve
- 1 x AISI 304 stainless steel delivery line with isolation ball valve and visual pressure gauge
- 1 x Digital electronic pressure transducer pre-wired to the I-MAT inverter
- 1 x Heavy-duty AISI 304 stainless steel structural mounting baseplate
SPECIFICATIONS
| Max Flow | 733 L/Min |
| Max Head | 172 m |
| Power | 18.5 kW / 415v |
| Rated Current | 34 Amps |
| Suitable For | Centralized Building Water Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What stainless grade wet end composition and port connections are utilized?
Baseplate chassis mounting on the Calpeda BS1V 1MXV 65-3210-ITT Variable Speed Booster Set with I-MAT Three Phase 400V features a Cast iron GJL 250 pump casing with AISI 304 stage casings, AISI 304 stainless steel impellers, and a Hard Metal-Carbon-EPDM mechanical seal seated on a Nickel-plated Steel S235JR Baseplate, fitted with DN 65 Flanged suction and DN 65 Flanged delivery connections.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
The BS1V 1MXV 65-3210-ITT is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
The BS1V-1MXV-65-3210-ITT delivers up to 733.3 L/min (44 m³/h) of clean water, regulating speed dynamically to maintain set line pressure.
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS1V 1 MXV 65 3210 ITT connects to Three Phase 400 V mains at 50 Hz, powering a 18.5 kW (25 HP) electric motor modulated by a mounted Calpeda I-MAT variable speed drive.
Under what maximum static head elevation and line pressure limits does this package operate?
The BS1V 1MXV 65-3210-ITT generates up to 172 metres of maximum static head and sustains casing pressures up to 25 bar, rated for liquid temperatures between -15 °C to +110 °C.
