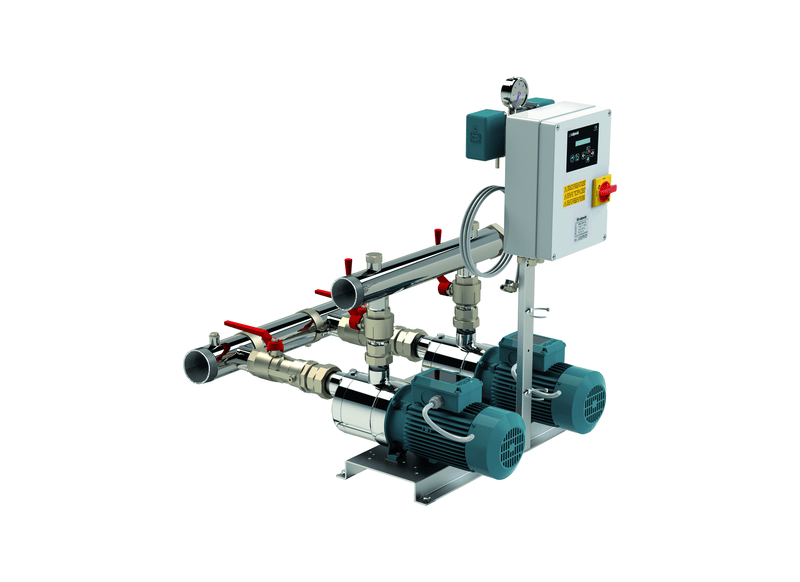

Calpeda BS2F 2MXHL 204 Three Phase 2 x 0.55kW Fixed Speed Twin Pump Multistage Booster System
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Multi-storey commercial buildings and boutique hotels require dependable twin-pump redundancy coupled with elevated delivery head to keep upper-level fixtures operating smoothly. The BS2F 2MXHL 204 booster set meets this requirement by combining two Calpeda MXHL 204 horizontal multistage pumps on a shared skid assembly. The twin-pump station supplies up to 160 L/Min of combined flow to meet fluctuating daily water demand. For elevated pipework and risers, the multistage hydraulics can develop up to 42.5 m of head.
Intelligent cascade control manages both pumps through differential pressure switches connected to a central microprocessor control board. When a single fixture opens, the designated lead pump starts to maintain line pressure, and if simultaneous usage causes pressure to fall further, the lag pump engages automatically. Automatic duty alternation swaps the starting sequence between cycles while anti-cycling timers prevent rapid hunting, equalising running hours across both motors.
Common AISI 304 stainless steel suction and delivery headers link both pumps into a compact, corrosion-resistant plumbing assembly. Installers connect primary supply lines to a 50 mm suction manifold and route pressurised water out through a 40 mm delivery manifold. Dedicated isolation ball valves and non-return check valves on each branch allow individual pump maintenance without shutting down the building, supported by a system pressure gauge and an external tank connection point.
Industrial-grade electrical reliability starts with a three-phase 415 V power supply feeding motors rated for three-phase 230/400 V winding connections. Each close-coupled 2-pole induction motor runs at approximately 2900 rpm on 50 Hz mains power, producing 0.55 kW (P2) per pump and drawing 1.6 A at rated output. Constructed with Class F insulation in compliance with IEC 60034 standards, the drive units handle continuous commercial duty cycles effortlessly.
Key Features
- Automatic Lead-Lag Alternation: Rotates duty between two identical pumps and stages both units together during peak draw-offs for complete system reliability.
- Four-Stage Hydraulic Core: Incorporates a 4-stage stainless steel impeller assembly in each pump to deliver elevated discharge head with high efficiency.
- Anti-Cycling Pressure Control: Pairs differential pressure switches with a microprocessor board to prevent nuisance starts and smooth out pressure transitions.
- AISI 304 Stainless Construction: Uses corrosion-resistant stainless steel for suction and delivery manifolds as well as all wetted pump components.
- Wide Thermal Operating Band: Handles liquid temperatures spanning -15 °C to +110 °C for chilled water, potable cold water, and hot water circulation.
- Plantroom Weather Sealing: Protected to IP54 ingress standards to keep moisture splashes and airborne dust out of electrical enclosures.
- Online Servicing Capability: Fitted with branch isolation ball valves and non-return valves so one pump can be isolated while the second maintains supply.
- Comprehensive Warranty Coverage: Supported by a 24 Months manufacturer warranty on the factory-assembled boosting plant.
What's Included
- 2 x Calpeda MXHL 204 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Microprocessor control board with differential pressure switches
- System pressure gauge
- Factory assembled and tested boosting plant
- Supports a 100 L galvanised diaphragm expansion tank
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 42.5 m |
| Power | 2 x 0.55 kW / 415v |
| Rated Current | 2 x 1.6 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electrical power mains and dual motor starter panel coordinate this twin set?
Twin two-pole motors totaling 1.1 kW power the Calpeda Fixed Speed Booster Set BS2F 2MXHL 204, operating from three phase 400V 50 Hz electricity via an automated fixed-speed sequencing control panel (400V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the BS2F 2MXHL 204 reaches up to 42.5 metres, while pump casings withstand up to 10 bar across liquid temperatures from -15°C to +110°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Common manifold plumbing on the BS2F-2MXHL-204 provides G 2 suction and G 1 1/2 delivery connections, joining twin AISI 316L chromium-nickel-molybdenum stainless steel pumps on a Zinc-plated Steel S235JR baseplate.
What manufacturer warranty protection coverage supports this fixed speed pumping assembly?
All core pumping elements of the BS2F 2 MXHL 204, including the multistage wet end, electric motor, and electronic control console, are covered by Calpeda manufacturer warranty from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Combined hydraulic output on the 2MXHL 204 (BS2F 2MXHL 204) reaches a collective maximum rating of 160 L/min (9.6 m³/h) under full dual-pump operation.
