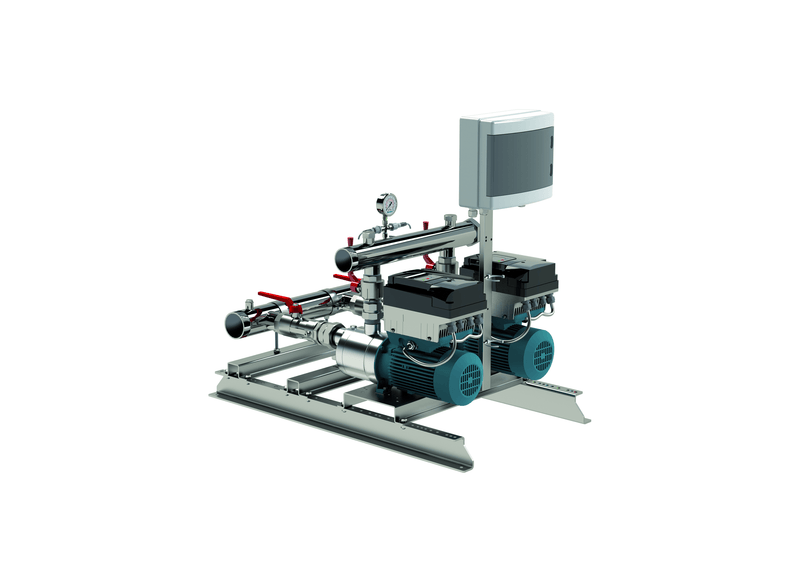

Calpeda BS2V 2MXH 2001-ITT Three Phase 2 x 1.1kW Variable Speed Twin Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Bulk grain terminal operations and agricultural packaging depots maintain steady site feeds with the Calpeda BS2V 2MXH 2001-ITT twin pump set. Built with 2 x Calpeda MXH 2001 pump assemblies, the package delivers a maximum volumetric flow rate of 800 L/min to overcome sudden demand spikes across commercial pipework. The hydraulic wet ends produce a maximum shut-off head of 15.6 metres to maintain constant vertical static elevation without line starvation.
Throughout intense peak facility operations, the twin pump system sustains combined delivery up to 800 L/min. System regulation is controlled by an integrated I-MAT variable speed control system governing both pumps in automated coordination. The pumps dynamically adjust their operating frequency to match instantaneous draw-off rates, eliminating mechanical water hammer and destructive line pressure surges. A factory-plumbed 18 L membrane pressure vessel dampens transient micro-fluctuations, while digital pressure transducers provide real-time line feedback to protect against dry running.
The compact twin commercial booster is built upon a torsion-resistant steel platform. Hydraulic construction utilizes premium 304 Stainless Steel impellers, stage chambers, and pump casings for superior corrosion resistance and longevity. The 1-stage hydraulic stacks connect into common manifolds featuring a 80 mm suction port and a 65 mm delivery connection. Each individual pump line incorporates dedicated nickel-plated brass shut-off ball valves and non-return check valves mounted on a vibration-dampened S235JR steel baseplate.
Motive force across both units is supplied by reliable three-phase motors built for inverter regulation. Operating with a full-load current rating of 2 x 4.8 Amps, the TEFC motor configuration incorporates IP54 ingress protection and Class F thermal winding insulation. The package is rated for continuous fluid temperatures from -15°C to +110°C and ambient plant room environments up to 40°C. Manufactured to strict European standards, the entire variable-speed booster system is backed by a comprehensive 24 Months manufacturer warranty.
Key Features
- An integrated I-MAT variable speed control system continuously regulates pump operation across both units to maintain smooth, constant line pressure without cycling.
- Synchronized twin pump wet ends effortlessly produce aggregate delivery flows reaching up to 800 L/min.
- A maximum delivery shut-off head of 15.6 metres easily overcomes vertical static lift and friction losses in multi-tier pipework.
- Robust AISI 304 chromium-nickel stainless steel metallurgy provides high tensile strength and extended mechanical service life.
- A factory-mounted 18 L membrane pressure vessel dampens line pressure surges and buffers micro-draws without starting the pumps.
- Integrated AISI 304 stainless steel headers include a 80 mm suction port, 65 mm delivery connection, and non-return check valves on each run.
- Motive power is delivered by two-pole three-phase electric motors operating at 2900 rpm on 400V 50 Hz power with a rated current draw of 2 x 4.8 Amps.
- Robust mechanical sealing permits continuous operation across a broad fluid temperature range from -15°C to +110°C.
- Microprocessor staging balances pump operating cycles automatically while providing emergency duty-assist boosting during demand spikes.
- Calpeda Pumps Pty Ltd supports the complete pre-commissioned boosting package with a comprehensive 24 Months warranty.
What's Included
- 2 x Calpeda MXH 2001 horizontal pumps
- 1 x Integrated I-MAT variable speed control system with dual-pump inverter regulation
- 1 x Common AISI 304 stainless steel suction manifold with isolation valves (80 mm)
- 1 x Common AISI 304 stainless steel discharge manifold with check valves (65 mm)
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 2 x Digital electronic pressure transducers with M12 connection cabling
- 1 x Heavy-duty zinc-plated structural steel mounting baseplate (S235JR)
- 1 x Comprehensive installation manual and manufacturer documentation pack
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 15.6 m |
| Power | 2 x 1.1 kW / 415v |
| Rated Current | 2 x 4.8 Amps |
| Suitable For | Commercial Cold Water Reticulation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum water delivery volume can both pumps supply together?
Rated volumetric output on the Calpeda BS2V 2MXH 2001-ITT Variable Speed Booster Set with I-MAT (3~ (400V)) (BS2V 2MXH 2001-ITT) supplies up to 800 L/min (48 m³/h) with both pumps running in parallel, with each pump delivering up to 400 L/min (24 m³/h).
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS2V 2MXH 2001-ITT connects to Three Phase 400 V mains at 50 Hz, powering two 1.1 kW (1.5 HP) electric motors totaling 2.2 kW with alternating Calpeda I-MAT frequency drives.
Under what maximum static head elevation and line pressure limits does this package operate?
The BS2V-2MXH-2001-ITT generates up to 15.6 metres of maximum static head and sustains casing pressures up to 10 bar, rated for liquid temperatures between -15 °C to +110 °C.
What corrosion proof wetted metallurgy and manifold connection port sizes are incorporated?
Common manifold plumbing on the BS2V 2 MXH 2001-ITT provides G 2" BSP suction and G 1 1/2" BSP delivery connections, joining AISI 304 chromium-nickel stainless steel pumps on a Zinc-plated Steel S235JR Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
The BS2V (BS2V 2MXH 2001-ITT) is backed by Calpeda manufacturer warranty coverage protecting the pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
