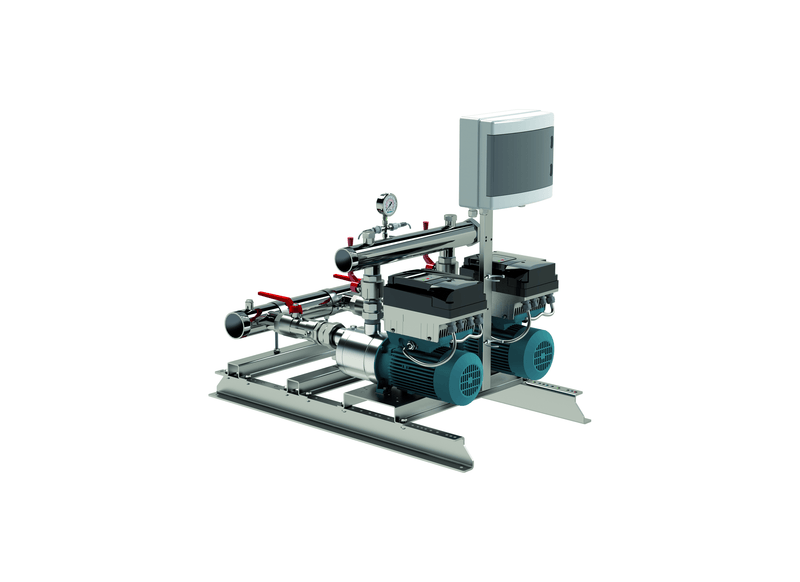

Calpeda BS2V 2MXH-F 3204-ITT Three Phase 2 x 7.5kW Variable Speed Twin Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Industrial corrugated paper plants and box factories power their utility loops using the Calpeda BS2V 2MXH-F 3204-ITT twin pump set. Built with 2 x Calpeda MXH-F 3204 multistage pump assemblies, the package delivers a maximum volumetric flow rate of 1466 L/min to overcome sudden demand spikes across commercial pipework. The hydraulic wet ends produce a maximum shut-off head of 74.5 metres to maintain constant vertical static elevation without line starvation.
Under full-load facility testing, the parallel dual wet ends sustain combined peak output up to 1466 L/min. System regulation is controlled by an integrated I-MAT variable speed control system governing both pumps in automated coordination. The pumps dynamically adjust their operating frequency to match instantaneous draw-off rates, eliminating mechanical water hammer and destructive line pressure surges. A factory-plumbed 18 L membrane pressure vessel dampens transient micro-fluctuations, while digital pressure transducers provide real-time line feedback to protect against dry running.
The complete twin hydraulic package rests upon an industrial-grade structural mounting base. Hydraulic construction utilizes premium 304 Stainless Steel impellers, stage chambers, and pump casings for superior corrosion resistance and longevity. The 4-stage hydraulic stacks connect into common manifolds featuring a 100 mm suction port and a 80 mm delivery connection. Each individual pump line incorporates dedicated nickel-plated brass shut-off ball valves and non-return check valves mounted on a vibration-dampened S235JR steel baseplate.
Energized by three-phase 400V 50 Hz electricity, both motors deliver smooth, continuous mechanical power. Operating with a full-load current rating of 2 x 8.3 Amps, the TEFC motor configuration incorporates IP54 ingress protection and Class F thermal winding insulation. The package is rated for continuous fluid temperatures from -15°C to +110°C and ambient plant room environments up to 40°C. Manufactured to strict European standards, the entire variable-speed booster system is backed by a comprehensive 24 Months manufacturer warranty.
Key Features
- An integrated I-MAT variable speed control system continuously regulates pump operation across both units to maintain smooth, constant line pressure without cycling.
- Synchronized twin pump wet ends effortlessly produce aggregate delivery flows reaching up to 1466 L/min.
- Developing maximum pressure heads up to 74.5 metres, the system guarantees strong, consistent fixture spray force.
- High-grade AISI 304 stainless steel wet-end construction offers outstanding durability and dependable resistance against corrosion.
- The delivery header includes an 18 L membrane expansion vessel to suppress hydraulic shock and minimize unnecessary cycling.
- Heavy-duty AISI 304 stainless steel manifolds provide balanced hydraulic distribution through a 100 mm inlet and 80 mm outlet.
- High-efficiency commercial electric motors run at 2900 rpm on 400V 50 Hz mains, drawing an absorbed current of 2 x 8.3 Amps.
- Verified operating limits safely tolerate fluid temperatures from -15°C to +110°C in plant room ambient conditions up to 40°C.
- The assembly is rigidly mounted upon a zinc-plated structural steel baseplate (S235JR) with anti-vibration damping feet.
- Calpeda Pumps Pty Ltd supports the complete pre-commissioned boosting package with a comprehensive 24 Months warranty.
What's Included
- 2 x Calpeda MXH-F 3204 horizontal multistage pumps
- 1 x Integrated I-MAT variable speed control system with dual-pump inverter regulation
- 1 x Common AISI 304 stainless steel suction manifold with isolation valves (100 mm)
- 1 x Common AISI 304 stainless steel discharge manifold with check valves (80 mm)
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 2 x Digital electronic pressure transducers with M12 connection cabling
- 1 x Heavy-duty zinc-plated structural steel mounting baseplate (S235JR)
- 1 x Comprehensive installation manual and manufacturer documentation pack
SPECIFICATIONS
| Max Flow | 1466 L/Min |
| Max Head | 74.5 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 8.3 Amps |
| Suitable For | Variable Speed Booster Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wetted alloy construction and common header connections link both pumps?
Pump body metallurgy on the Calpeda BS2V 2MXH-F 3204-ITT Variable Speed Booster Set with I-MAT (3~ (400V)) (BS2V 2MXH-F 3204-ITT) incorporates AISI 304 chromium-nickel stainless steel pumps with AISI 304 stainless steel impellers seated on a Painted Steel S235JR Baseplate, connected via common manifolds with DN 100 Flanged suction and DN 80 Flanged delivery headers.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
The BS2V 2MXH-F 3204-ITT is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Operating in parallel duty assist mode, the BS2V-2MXH-F-3204-ITT provides up to 1666.7 L/min (100 m³/h), where each multistage pump supplies up to 833.3 L/min (50 m³/h).
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS2V 2MXH-F 3204-ITT connects to Three Phase 400 V mains at 50 Hz, powering two 7.5 kW (10 HP) electric motors totaling 15 kW with alternating Calpeda I-MAT frequency drives.
Under what maximum static head elevation and line pressure limits does this package operate?
The BS2V (BS2V 2MXH-F 3204-ITT) generates up to 67 metres of maximum static head and sustains casing pressures up to 10 bar, rated for liquid temperatures between -15 °C to +110 °C.
