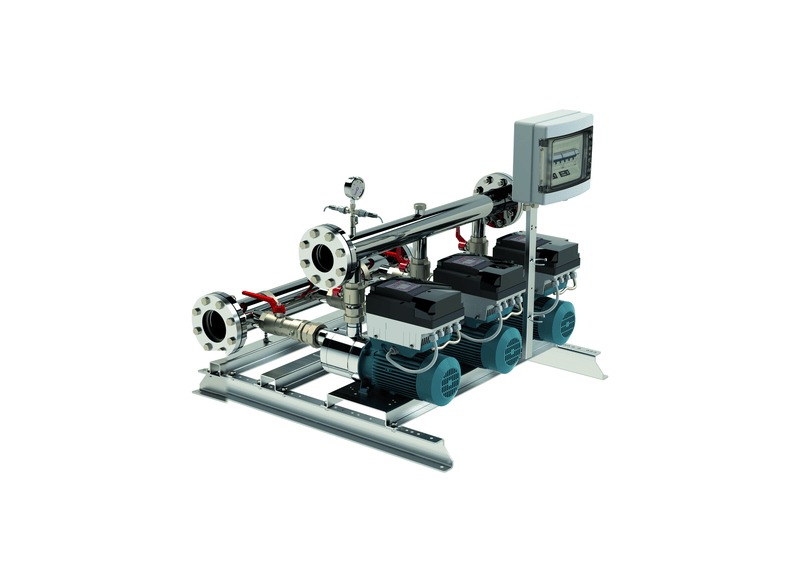

Calpeda BS3V 3MXH 1603-ITT Three Phase 3 x 1.8kW Variable Speed 3-Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Vehicle assembly manufacturing plants and electro-coating water circuits achieve unyielding pressure with the Calpeda BS3V 3MXH 1603-ITT 3-pump booster set. Built with 3 x Calpeda MXH 1603 multistage pump assemblies, the package delivers a maximum volumetric flow rate of 1101 L/min to overcome sudden demand spikes across commercial pipework. The hydraulic wet ends produce a maximum shut-off head of 34 metres to maintain constant vertical static elevation without line starvation.
Designed to master high-volume industrial trade cycles, fluid throughput from the 3-pump assembly expands up to 1101 L/min. System regulation is controlled by an integrated I-MAT variable speed control system governing all three pumps in automated coordination. The pumps dynamically adjust their operating frequency to match instantaneous draw-off rates, eliminating mechanical water hammer and destructive line pressure surges. A factory-plumbed 18 L membrane pressure vessel dampens transient micro-fluctuations, while digital pressure transducers provide real-time line feedback to protect against dry running.
The three horizontal multistage pumps are bolted securely to an electro-galvanised frame. Hydraulic construction utilizes premium 304 Stainless Steel impellers, stage chambers, and pump casings for superior corrosion resistance and longevity. The 3-stage hydraulic stacks connect into common manifolds featuring a 100 mm suction port and a 80 mm delivery connection. Each individual pump line incorporates dedicated nickel-plated brass shut-off ball valves and non-return check valves mounted on a vibration-dampened S235JR steel baseplate.
Three three-phase 400V electric motors drive the triplex multistage impellers with exceptional efficiency. Operating with a full-load current rating of 3 x 4.8 Amps, the TEFC motor configuration incorporates IP54 ingress protection and Class F thermal winding insulation. The package is rated for continuous fluid temperatures from -15°C to +110°C and ambient plant room environments up to 40°C. Manufactured to strict European standards, the entire variable-speed booster system is backed by a comprehensive 24 Months manufacturer warranty.
Key Features
- An integrated I-MAT variable speed control system continuously regulates pump operation across all three units to maintain smooth, constant line pressure without cycling.
- Three synchronized multistage wet ends effortlessly generate bulk water delivery rates reaching up to 1101 L/min.
- Developing maximum pressure heads up to 34 metres, the system guarantees strong, consistent fixture spray force.
- Robust AISI 304 chromium-nickel stainless steel metallurgy provides high tensile strength and extended mechanical service life.
- An integrated 18 L pressure accumulator absorbs transient line fluctuations while digital transducers provide live monitoring.
- Heavy-duty AISI 304 stainless steel manifolds provide balanced hydraulic distribution through a 100 mm inlet and 80 mm outlet.
- High-efficiency commercial electric motors run at 2900 rpm on 400V 50 Hz mains, drawing an absorbed current of 3 x 4.8 Amps.
- Robust mechanical sealing permits continuous operation across a broad fluid temperature range from -15°C to +110°C.
- Microprocessor staging balances pump operating cycles automatically while providing emergency duty-assist boosting during demand spikes.
- Complete peace of mind is guaranteed through an official 24 Months manufacturer warranty covering all mechanical and electrical elements.
What's Included
- 3 x Calpeda MXH 1603 horizontal multistage pumps
- 1 x Integrated I-MAT variable speed control system with triple-pump inverter regulation
- 1 x Common AISI 304 stainless steel suction manifold with isolation valves (100 mm)
- 1 x Common AISI 304 stainless steel discharge manifold with check valves (80 mm)
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 2 x Digital electronic pressure transducers with M12 connection cabling
- 1 x Heavy-duty zinc-plated structural steel mounting baseplate (S235JR)
- 1 x Comprehensive installation manual and manufacturer documentation pack
SPECIFICATIONS
| Max Flow | 1101 L/Min |
| Max Head | 34 m |
| Power | 3 x 1.8 kW / 415v |
| Rated Current | 3 x 4.8 Amps |
| Suitable For | Heavy Commercial Water Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can you specify the maximum elevation head in metres for this booster assembly?
Discharge elevation capacity on the Calpeda BS3V 3MXH 1603-ITT Variable Speed Booster Set with I-MAT (3~ (400V)) (BS3V 3MXH 1603-ITT) attains a maximum elevation head of 34 metres with a maximum casing pressure of 8 bar, handling clean fluids at temperatures from -15 °C to +110 °C.
What corrosion proof wetted metallurgy and manifold connection port sizes are incorporated?
Common manifold plumbing on the BS3V 3MXH 1603-ITT provides DN 100 Flanged suction and DN 80 Flanged delivery connections, joining AISI 304 chromium-nickel stainless steel pumps on a Zinc-plated Steel S235JR Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
The BS3V-3MXH-1603-ITT is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Operating in parallel duty assist mode, the BS3V 3 MXH 1603-ITT provides up to 1250 L/min (75 m³/h) across three pumps, with each pump delivering up to 416.7 L/min (25 m³/h).
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS3V (BS3V 3MXH 1603-ITT) connects to Three Phase 400 V mains at 50 Hz, powering three 1.8 kW (2.5 HP) electric motors totaling 5.4 kW governed by triple communicating Calpeda I-MAT drives.
