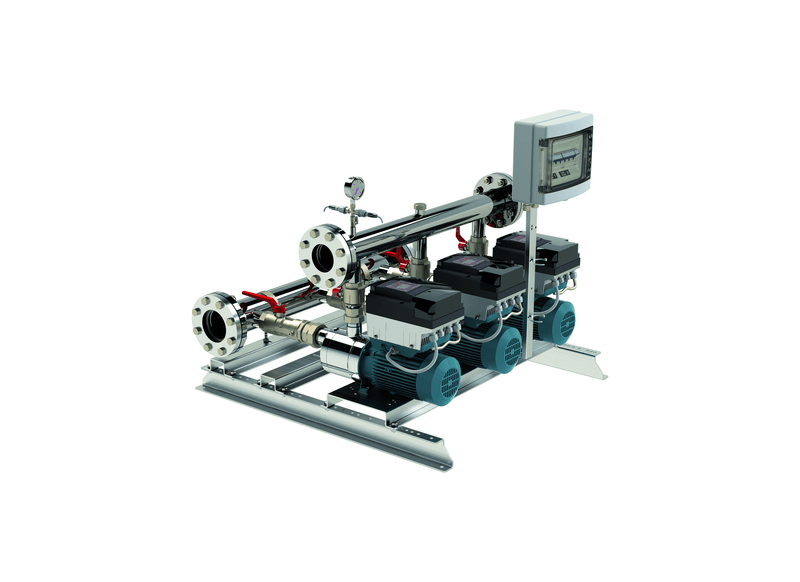

Calpeda BS3V 3MXH-F 3202-ITT Three Phase 3 x 4kW Variable Speed 3-Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Industrial polymer molding plants and heavy extrusion cooling lines operate the Calpeda BS3V 3MXH-F 3202-ITT 3-pump booster set. Built with 3 x Calpeda MXH-F 3202 multistage pump assemblies, the package delivers a maximum volumetric flow rate of 2199 L/min to overcome sudden demand spikes across commercial pipework. The hydraulic wet ends produce a maximum shut-off head of 33 metres to maintain constant vertical static elevation without line starvation.
The automated 3-pump variable speed system comfortably regulates facility water supply up to 2199 L/min. System regulation is controlled by an integrated I-MAT variable speed control system governing all three pumps in automated coordination. The pumps dynamically adjust their operating frequency to match instantaneous draw-off rates, eliminating mechanical water hammer and destructive line pressure surges. A factory-plumbed 18 L membrane pressure vessel dampens transient micro-fluctuations, while digital pressure transducers provide real-time line feedback to protect against dry running.
The triplex booster assembly is mounted upon a laser-welded, corrosion-proof structural frame. Hydraulic construction utilizes premium 304 Stainless Steel impellers, stage chambers, and pump casings for superior corrosion resistance and longevity. The 2-stage hydraulic stacks connect into common manifolds featuring a 100 mm suction port and a 100 mm delivery connection. Each individual pump line incorporates dedicated nickel-plated brass shut-off ball valves and non-return check valves mounted on a vibration-dampened S235JR steel baseplate.
Aggregate electrical efficiency across all three units is sustained by high-performance motors. Operating with a full-load current rating of 3 x 5.5 Amps, the TEFC motor configuration incorporates IP54 ingress protection and Class F thermal winding insulation. The package is rated for continuous fluid temperatures from -15°C to +110°C and ambient plant room environments up to 40°C. Manufactured to strict European standards, the entire variable-speed booster system is backed by a comprehensive 24 Months manufacturer warranty.
Key Features
- An integrated I-MAT variable speed control system dynamically synchronizes all three pumps to match instantaneous demand without energy waste.
- The heavy-duty 3-pump hydraulic package provides massive parallel water discharge capacity scaling up to 2199 L/min.
- Developing maximum pressure heads up to 33 metres, the system guarantees strong, consistent fixture spray force.
- High-grade AISI 304 stainless steel wet-end construction offers outstanding durability and dependable resistance against corrosion.
- A factory-mounted 18 L membrane pressure vessel dampens line pressure surges and buffers micro-draws without starting the pumps.
- The pre-plumbed parallel assembly incorporates a 100 mm suction manifold and a 100 mm discharge manifold with isolating ball valves.
- Industrial-grade 400V 50 Hz electric motors provide vibration-free mechanical drive with IP54 ingress protection and Class F thermal insulation.
- Verified operating limits safely tolerate fluid temperatures from -15°C to +110°C in plant room ambient conditions up to 40°C.
- The assembly is rigidly mounted upon a zinc-plated structural steel baseplate (S235JR) with anti-vibration damping feet.
- Calpeda Pumps Pty Ltd supports the complete pre-commissioned boosting package with a comprehensive 24 Months warranty.
What's Included
- 3 x Calpeda MXH-F 3202 horizontal multistage pumps
- 1 x Integrated I-MAT variable speed control system with triple-pump inverter regulation
- 1 x Common AISI 304 stainless steel suction manifold with isolation valves (100 mm)
- 1 x Common AISI 304 stainless steel discharge manifold with check valves (100 mm)
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 2 x Digital electronic pressure transducers with M12 connection cabling
- 1 x Heavy-duty zinc-plated structural steel mounting baseplate (S235JR)
- 1 x Comprehensive installation manual and manufacturer documentation pack
SPECIFICATIONS
| Max Flow | 2199 L/Min |
| Max Head | 33 m |
| Power | 3 x 4 kW / 415v |
| Rated Current | 3 x 5.5 Amps |
| Suitable For | Major Building Water Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
