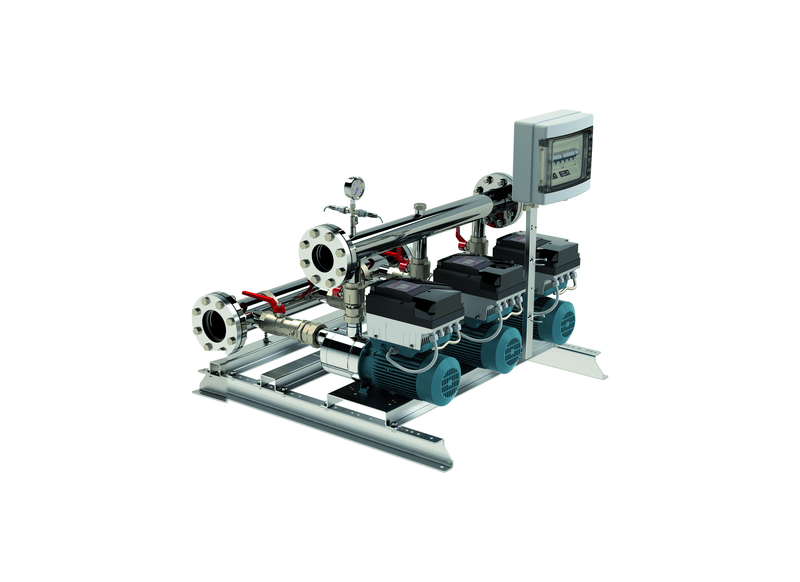

Calpeda BS3V 3MXHL 206-ITT Three Phase 3 x 1.1kW Variable Speed 3-Pump Booster Set with I-MAT Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
High-capacity commercial transit facilities and transport hubs handle round-the-clock passenger demands with the Calpeda BS3V 3MXHL 206-ITT 3-pump booster set. Built with 3 x Calpeda MXHL 206 multistage pump assemblies, the package delivers a maximum volumetric flow rate of 240 L/min to overcome sudden demand spikes across commercial pipework. The hydraulic wet ends produce a maximum shut-off head of 65 metres to maintain constant vertical static elevation without line starvation.
When large-scale facility consumption peaks, all three inverter pumps modulate to output up to 240 L/min. System regulation is controlled by an integrated I-MAT variable speed control system governing all three pumps in automated coordination. The pumps dynamically adjust their operating frequency to match instantaneous draw-off rates, eliminating mechanical water hammer and destructive line pressure surges. A factory-plumbed 18 L membrane pressure vessel dampens transient micro-fluctuations, while digital pressure transducers provide real-time line feedback to protect against dry running.
Built to support massive parallel pumping, the triplex system rests on an industrial skid. Hydraulic construction utilizes premium 316L Stainless Steel impellers, stage chambers, and pump casings for superior corrosion resistance and longevity. The 6-stage hydraulic stacks connect into common manifolds featuring a 100 mm suction port and a 80 mm delivery connection. Each individual pump line incorporates dedicated nickel-plated brass shut-off ball valves and non-return check valves mounted on a vibration-dampened S235JR steel baseplate.
The triplex drive package incorporates three dedicated three-phase motors delivering continuous S1 duty. Operating with a full-load current rating of 3 x 2.7 Amps, the TEFC motor configuration incorporates IP54 ingress protection and Class F thermal winding insulation. The package is rated for continuous fluid temperatures from -15°C to +110°C and ambient plant room environments up to 40°C. Manufactured to strict European standards, the entire variable-speed booster system is backed by a comprehensive 24 Months manufacturer warranty.
Key Features
- An integrated I-MAT variable speed control system dynamically synchronizes all three pumps to match instantaneous demand without energy waste.
- Operating under three-pump cascade control, the parallel array satisfies extreme simultaneous fixture demand up to 240 L/min.
- A maximum delivery shut-off head of 65 metres easily overcomes vertical static lift and friction losses in multi-tier pipework.
- Precision-formed AISI 316L stainless steel impellers and intermediate diffusers deliver superior corrosion defense and long operational life.
- An integrated 18 L pressure accumulator absorbs transient line fluctuations while digital transducers provide live monitoring.
- Common AISI 304 stainless steel manifolds feature a 100 mm suction header and a 80 mm delivery connection with dedicated check valves.
- Industrial-grade 400V 50 Hz electric motors provide vibration-free mechanical drive with IP54 ingress protection and Class F thermal insulation.
- The complete pumping assembly accommodates liquid temperatures from -15°C to +110°C under maximum casing pressures up to 10 bar.
- Automated lead-lag duty assist staging seamlessly rotates operating hours across pumps to prevent uneven component wear.
- Factory quality assurance is reinforced by an official 24 Months warranty covering the pump wet ends, motors, and inverter drives.
What's Included
- 3 x Calpeda MXHL 206 horizontal multistage pumps
- 1 x Integrated I-MAT variable speed control system with triple-pump inverter regulation
- 1 x Common AISI 304 stainless steel suction manifold with isolation valves (100 mm)
- 1 x Common AISI 304 stainless steel discharge manifold with check valves (80 mm)
- 1 x Factory-mounted 18 L membrane pressure vessel on delivery header
- 2 x Digital electronic pressure transducers with M12 connection cabling
- 1 x Heavy-duty zinc-plated structural steel mounting baseplate (S235JR)
- 1 x Comprehensive installation manual and manufacturer documentation pack
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 65 m |
| Power | 3 x 1.1 kW / 415v |
| Rated Current | 3 x 2.7 Amps |
| Suitable For | High-Rise Commercial Water Supply |
| Body Material | 316L Stainless Steel |
| Liquid Temperature | -15°C to +110°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the manufacturer warranty cover the pump wet end and electronic drive?
Product warranty backing for the Calpeda BS3V 3MXHL 206-ITT Variable Speed Booster Set with I-MAT (3~ (400V)) (BS3V 3MXHL 206-ITT) provides comprehensive Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic inverter console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Operating in parallel duty assist mode, the BS3V 3MXHL 206-ITT provides up to 240 L/min (14.4 m³/h) across three pumps, with each pump delivering up to 80 L/min (4.8 m³/h).
Which electrical power mains and variable speed frequency converter regulate this booster set?
The BS3V-3MXHL-206-ITT connects to Three Phase 400 V mains at 50 Hz, powering three 1.1 kW (1.5 HP) electric motors totaling 3.3 kW governed by triple communicating Calpeda I-MAT drives.
Under what maximum static head elevation and line pressure limits does this package operate?
The BS3V 3 MXHL 206-ITT generates up to 65 metres of maximum static head and sustains casing pressures up to 10 bar, rated for liquid temperatures between -15 °C to +110 °C.
What corrosion proof wetted metallurgy and manifold connection port sizes are incorporated?
Common manifold plumbing on the BS3V (BS3V 3MXHL 206-ITT) provides G 2 1/2" BSP suction and G 2" BSP delivery connections, joining AISI 316L chromium-nickel-molybdenum stainless steel pumps on a Zinc-plated Steel S235JR Baseplate.
