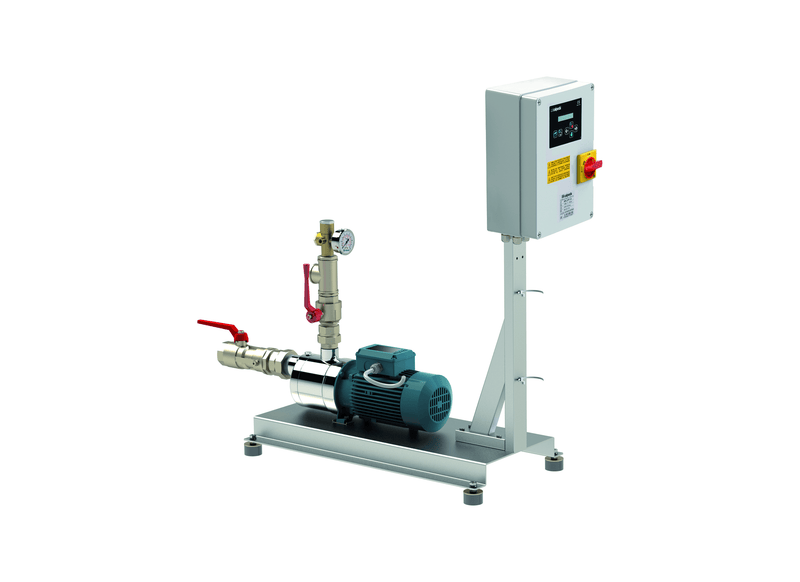

Calpeda BSM1F 1MXHLM 406 Single Phase 1.5kW Fixed Speed Single Pump Multistage Booster System
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
High-head single-phase pressure boosting is essential when properties with steep elevation changes or multi-level risers lack three-phase mains infrastructure. Designed for these challenging sites, the BSM1F 1MXHLM 406 package integrates one Calpeda MXHLM 406 horizontal multistage pump into a self-contained skid. It delivers up to 133.3 L/Min of water flow to satisfy high-demand fixture usage. To keep distant outlets and upper floors properly pressurised, the pump can develop up to 63 m of head.
Responsive differential pressure switches work in tandem with an integrated microprocessor control board to automate system operation around the clock. Any pressure drop caused by opening valves or sanitary fixtures signals the controller to start the pump and sustain operation until the upper cut-out threshold is met. Anti-cycling logic prevents repetitive starting and stopping when demand is minimal, protecting electrical switchgear and hydraulic seals from premature fatigue.
Heavy-gauge AISI 304 stainless steel suction and delivery headers ensure clean, corrosion-free water handling across the entire manifold assembly. Plumbers tie the primary supply into a 32 mm suction connection and feed building risers through a 25 mm discharge connection. Dedicated isolation ball valves, non-return check valves, a visual system pressure gauge, and an external expansion vessel connection point are all factory fitted for immediate installation.
Single-phase electrical installation remains straightforward thanks to a single-phase 230 V supply and motor winding specification. Operating at approximately 2900 rpm on a 50 Hz supply, the 2-pole induction motor produces 1.5 kW (P2) of shaft power and draws a rated current of 9.2 A at peak duty. Manufactured with Class F insulation in full compliance with IEC 60034 standards, the motor withstands continuous thermal stress in demanding commercial service.
Key Features
- Maximum Lift Multistage Core: Uses a 6-stage stainless steel impeller configuration to generate high discharge pressure from a compact horizontal footprint.
- Electronic Switch Supervision: Links differential pressure switches with microprocessor control to eliminate nuisance cycling and maintain dependable pressure bands.
- Potable-Grade Stainless Build: Employs AISI 304 stainless steel across manifolds and pump internals for superior corrosion resistance and hygiene.
- Thermal Versatility: Rated for continuous operation with fluid temperatures between -15 °C to +110 °C in heating, cooling, or domestic supply networks.
- Protected Electrical Hardware: Meets IP54 ingress ratings to guard motor windings and control circuitry against dust and splashing water.
- Maintenance-Friendly Valves: Incorporates full-flow isolation ball valves and non-return valves to prevent backflow and allow fast component servicing.
- Ready-to-Connect Assembly: Factory built and tested with an onboard pressure gauge and pre-plumbed vessel port to reduce site labour.
- Two-Year Factory Backing: Covered by a 24 Months warranty for long-term operational confidence.
What's Included
- 1 x Calpeda MXHLM 406 horizontal multistage pump
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Microprocessor control board with differential pressure switches
- System pressure gauge
- Factory assembled and tested boosting plant
- Supports a 200 L galvanised diaphragm expansion tank
SPECIFICATIONS
| Max Flow | 133 L/Min |
| Max Head | 63 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.2 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which marine grade stainless metallurgy and delivery manifold ports are included?
Acid-tolerant AISI 316L chromium-nickel-molybdenum stainless steel forms the wetted chambers of the Calpeda Fixed Speed Booster Set BSM1F 1MXHLM 406, mounted on a Zinc-plated Steel S235JR baseplate with G 1 1/4 suction and G 1 delivery lines.
What manufacturer warranty protection coverage supports this fixed speed pumping assembly?
All core pumping elements of the BSM1F 1MXHLM 406, including the multistage wet end, electric motor, and electronic control console, are covered by Calpeda manufacturer warranty from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Water delivery capacity for the BSM1F-1MXHLM-406 is rated at a maximum volumetric flow of 133.3 L/min (8 m³/h) during peak demand cycles.
Which electrical power mains and automated motor control board regulate this booster set?
Powered by single phase 230V mains electricity at 50 Hz, the BSM1F 1 MXHLM 406 utilizes a 1.5 kW motor managed by an automated fixed-speed control panel (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Vertical water elevation reaches up to 63 metres on the 1MXHLM 406 (BSM1F 1MXHLM 406), supported by a 10 bar casing pressure threshold and fluid tolerances from -15°C to +110°C.
