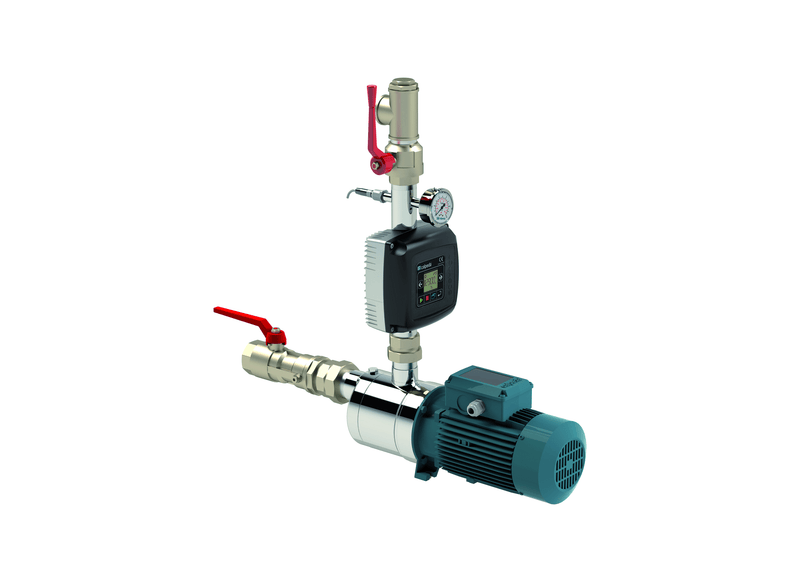

Calpeda BSM1V 1MXH 2001-EMT 1.8kW Variable Speed Single Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Designed for high-volume water circulation and building boosting duties, the BSM1V 1MXH 2001-EMT combines broad flow capacity with intelligent speed control. Built around one heavy-duty Calpeda MXH 2001 horizontal multistage pump, this skid-mounted assembly delivers up to 400 L/Min. To overcome static elevation and pipe friction, the wet end can generate up to 15.6 m of head. It provides a dependable, space-saving solution for hospitality venues, apartment blocks, and light industrial washdown circuits.
At the heart of its pressure stability is an integrated I-MAT frequency converter that modulates motor frequency to match instantaneous tap demand. Rather than cycling abruptly between fixed pressure limits, the drive ramps speed smoothly to keep discharge pressure rock-steady while trimming kilowatt consumption at partial load. Internal electronic safeguards continuously watch for dry-run conditions, thermal overload, and supply irregularities to protect mechanical seals and bearings.
Each wetted header section is crafted from hygienic stainless steel AISI 304 to withstand hot and cold fluid transfer without internal corrosion. Installers connect primary pipework via the 50 mm suction inlet and 40 mm delivery outlet, with factory-fitted isolation ball valves and a non-return valve streamlining maintenance access. The discharge header also houses an easy-to-read system pressure gauge alongside a dedicated port for an external pressure vessel.
Field wiring is simplified by a single-phase 230 V input supply that feeds the onboard inverter to drive a three-phase 230/400 V motor winding. Operating as a 2-pole induction unit at approximately 2900 rpm on 50 Hz mains, the motor produces 1.8 kW of output power with a remarkably low rated current of 2.7 A. Full compliance with IEC 60034 standards and Class F insulation ensures cool, reliable running under sustained loads.
Key Features
- High-Efficiency Impeller Geometry: Incorporates a precision 1-stage stainless steel hydraulic end optimized for high-volume transfer at moderate head pressures.
- Proportional Inverter Modulation: Matches motor rpm directly to live hydraulic draw, eliminating pressure spikes and reducing mechanical wear.
- Broad Temperature Capability: Handles chilled glycol loops and hot water circuits effortlessly across a liquid range of -15 °C to +110 °C.
- Industrial Motor Construction: Built to IEC 60034 benchmarks with Class F winding insulation for superior thermal resilience during continuous operation.
- AISI 304 Manifold Assembly: Resists pitting and oxidation across both suction and discharge headers to preserve water quality.
- Maintenance-Friendly Valving: Combines heavy-duty isolation ball valves and a check valve for rapid servicing without system depressurisation.
- Electronic Fault Shielding: Automatically halts operation if dry running, overcurrent, or abnormal voltage events are detected.
- Expansion Tank Readiness: Features a pre-tapped connection point on the delivery manifold for quick attachment of a buffer vessel.
- Factory Warranty Support: Backed by a 24 Months manufacturer guarantee covering defects in materials and workmanship.
What's Included
- 1 x Calpeda MXH 2001 horizontal multistage pump
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 15.6 m |
| Power | 1.8 kW / 415v |
| Rated Current | 2.7 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does factory warranty coverage safeguard this single pump variable speed package?
Factory warranty coverage on the Calpeda Variable Speed Booster Set BSM1V 1MXH 2001-EMT shields the stainless wet end, induction motor, and frequency converter against manufacturing faults from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Total hydraulic throughput on the BSM1V 1MXH 2001-EMT reaches up to 400 L/min (24 m³/h), maintaining steady line pressure during peak usage hours.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Mains power for the BSM1V-1MXH-2001-EMT connects to single phase 230V 50 Hz electricity, running a 1.1 kW induction motor governed by an EASYMAT variable speed frequency converter (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Developing up to 15.6 metres of maximum elevation head, the BSM1V 1 MXH 2001-EMT is rated for a maximum pump casing pressure of 10 bar and handles liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
All wetted hydraulic stages of the 1MXH 2001-EMT (BSM1V 1MXH 2001-EMT) are constructed from AISI 304 chromium-nickel stainless steel, assembled on an AISI 304 Stainless Steel Baseplate with G 2" BSP inlet and G 1 1/2" BSP outlet ports.
