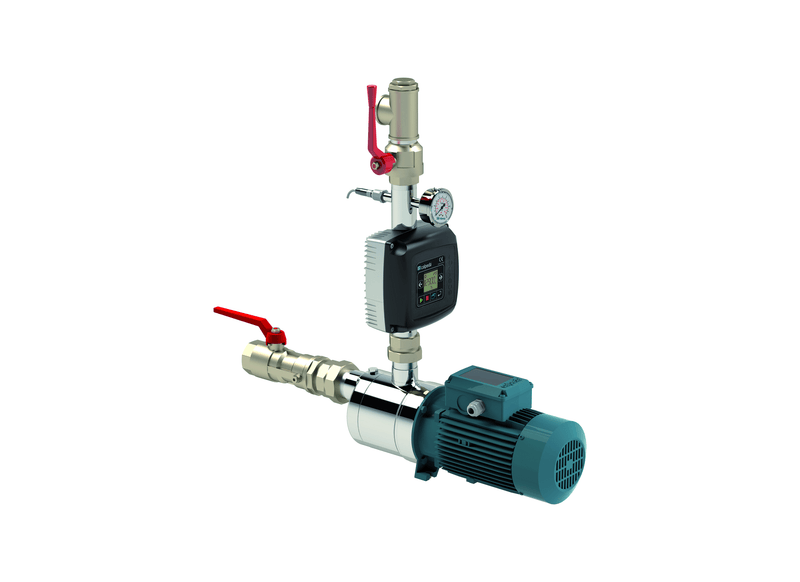

Calpeda BSM1V 1MXH 2002-EMT 1.8kW Variable Speed Single Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Where commercial ring mains and multi-outlet water systems require rapid flow response without pressure droop, the BSM1V 1MXH 2002-EMT delivers consistent hydraulic performance. Utilising a single Calpeda MXH 2002 horizontal multistage pump, this pre-assembled booster set supplies up to 400 L/Min. When boosting water to upper floors, the system can develop up to 31.4 m of delivery head. Its streamlined single-pump layout fits neatly into tight mechanical alcoves while supporting demanding daily water schedules.
Closed-loop pressure control is governed by a pump-mounted I-MAT variable-speed frequency converter that responds immediately to downstream valve movements. As water usage rises or falls, the inverter scales motor speed up or down to lock in a constant delivery pressure and curb unnecessary power draw. Comprehensive electronic monitoring guards the unit against dry-running episodes, locked-rotor faults, and sudden hydraulic surges across the pipe network.
Thick-walled stainless steel AISI 304 pipework forms both the suction and discharge headers to guarantee clean, rust-free fluid passage over years of service. Plumbing integration is straightforward thanks to a 50 mm inlet and a 40 mm outlet, complemented by full-bore isolation ball valves and an integral check valve that prevents reverse flow. A manifold-mounted pressure gauge and a threaded connection point for an external expansion vessel are provided as standard.
Drawing power from a convenient single-phase 230 V supply, the inverter synthesises variable-frequency output for the three-phase 230/400 V motor windings. The 2-pole induction motor runs at a synchronous 50 Hz top speed of 2900 rpm, rated at 1.8 kW and pulling 4.8 A under full hydraulic load. Engineered in accordance with IEC 60034 guidelines with Class F insulation, the drive assembly is built for long operational life.
Key Features
- Balanced Multistage Hydraulics: Features a robust 2-stage stainless steel internal assembly that blends strong flow capacity with quiet, vibration-free operation.
- Smart Variable-Speed Drive: Continuously tunes pump speed via the onboard I-MAT unit to maintain steady outlet pressure and lower energy bills.
- Hot and Cold Liquid Versatility: Rated for continuous fluid transfer across an expansive temperature spectrum from -15 °C to +110 °C.
- Heavy-Duty Winding Design: Manufactured to IEC 60034 standards with Class F thermal insulation to handle intensive duty cycles safely.
- Corrosion-Proof Headers: Uses pickled and passivated AISI 304 stainless steel manifolds for maximum longevity in potable or process water lines.
- Integrated Isolation Hardware: Supplied with dedicated ball valves and a non-return check valve to simplify routine inspection and seal replacement.
- Comprehensive Drive Safeguards: Protects the pump set with built-in dry-run cut-out, soft start/stop ramping, and thermal overload trips.
- Vessel Connection Port: Provides a ready-made tapping on the discharge header for fitting an external diaphragm tank.
- Assured Reliability: Supported by a full 24 Months warranty from Calpeda for dependable post-installation coverage.
What's Included
- 1 x Calpeda MXH 2002 horizontal multistage pump
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 31.4 m |
| Power | 1.8 kW / 415v |
| Rated Current | 4.8 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
At what volumetric discharge rate does this high flow booster assembly transfer water?
Discharging up to 400 L/min (24 m³/h) under peak draw, the Calpeda Variable Speed Booster Set BSM1V 1MXH 2002-EMT satisfies intensive municipal water distribution without flow lag.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Mains power for the BSM1V 1MXH 2002-EMT connects to single phase 230V 50 Hz electricity, running a 1.8 kW induction motor governed by an EASYMAT variable speed frequency converter (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Developing up to 31.4 metres of maximum elevation head, the BSM1V-1MXH-2002-EMT is rated for a maximum pump casing pressure of 10 bar and handles liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
All wetted hydraulic stages of the BSM1V 1 MXH 2002-EMT are constructed from AISI 304 chromium-nickel stainless steel, assembled on an AISI 304 Stainless Steel Baseplate with G 2" BSP inlet and G 1 1/2" BSP outlet ports.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Purchasers of the 1MXH 2002-EMT (BSM1V 1MXH 2002-EMT) receive dedicated Calpeda warranty support safeguarding all multistage pump wet end components, drive motors, and electronic frequency inverters from date of invoice.
