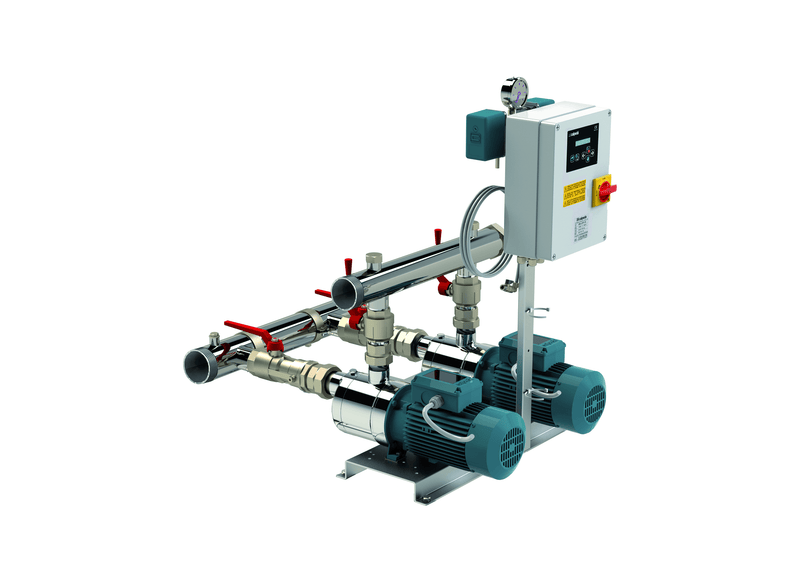

Calpeda BSM2F 2MXHLM 206 Single Phase 2 x 1.1kW Fixed Speed Twin Pump Multistage Booster System
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Climbing steep vertical elevation or long horizontal pipe runs on single-phase sites requires a high-head twin booster package. Built around 2 Calpeda MXHLM 206 horizontal multistage pumps, the Calpeda BSM2F 2MXHLM 206 unit can develop up to 65 m of head for high-elevation plumbing. Under peak draw-off conditions, the twin pumps supply flow rates up to 160 L/Min. It is ideally suited to multi-storey residential risers, hillside estates, and commercial hot-water ring mains.
Dynamic load sharing between the two pumps is orchestrated by differential pressure switches with a microprocessor control board. Under moderate demand, a single pump maintains target line pressure, while the second pump cuts in sequentially if heavy draw pulls pressure toward the lower setpoint. Automatic duty alternation swaps the starting sequence on every cycle to balance wear, and anti-cycling delay logic prevents rapid relay chatter.
Scale-resistant stainless steel AISI 304 suction and delivery headers form the backbone of the hydraulic assembly, keeping potable water clean and uncontaminated. Plumbers connect site piping to a 50 mm inlet header and a 40 mm discharge header, with dedicated isolation ball valves and non-return check valves fitted to each branch. An onboard system pressure gauge and a connection point for an external accumulator vessel round out the manifold layout.
Operating entirely from a standard single-phase 230 V electrical supply and matching motor winding rating, this booster eliminates the need for three-phase power upgrades. Each 2-pole induction motor spins at approximately 2900 rpm (50 Hz), developing 1.1 kW (P2) of output power and drawing 7.4 A at full load. Built to IEC 60034 standards with Class F insulation, the drives provide long-lasting thermal endurance.
Key Features
- Six-Stage Pressure Boosting: Incorporates a 6-stage stainless steel hydraulic stack to generate exceptional discharge head for tall risers and high-friction pipework.
- Sequential Cascade Control: Engages the second pump only when required by system demand and alternates lead duty via the microprocessor controller.
- Sanitary Stainless Headers: Constructed with AISI 304 stainless steel suction and delivery manifolds to prevent internal rusting and preserve water quality.
- Thermal Versatility: Handles chilled water and hot potable water loops across a broad operating temperature span of -15 °C to +110 °C.
- Plant Room Ingress Rating: Sealed to IP54 standards to protect motor windings and control circuitry against airborne dust and water splashes.
- Full Branch Serviceability: Combines individual shut-off ball valves and spring-loaded check valves so either pump can be isolated without shutting down the system.
- Anti-Cycling Switch Protection: Uses calibrated differential pressure switches with microprocessor timers to stop nuisance starting during minor pressure fluctuations.
- Ready-to-Install Skid: Delivered factory assembled and hydrostatically tested on a unified frame, backed by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHLM 206 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Microprocessor control board with differential pressure switches
- System pressure gauge
- Factory assembled and tested boosting plant
- Supports a 100 L galvanised diaphragm expansion tank
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 65 m |
| Power | 2 x 1.1 kW / 240v |
| Rated Current | 2 x 7.4 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wetted stainless steel grade and dual manifold connection sizes are included?
Twin AISI 316L chromium-nickel-molybdenum stainless steel pumps on the Calpeda Fixed Speed Booster Set BSM2F 2MXHLM 206 rest upon a Zinc-plated Steel S235JR baseplate, coupled through dual G 2 inlet and G 1 1/2 outlet manifolds.
What manufacturer warranty protection coverage supports this fixed speed pumping assembly?
Equipment coverage on the BSM2F 2MXHLM 206 is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic control console against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Dual multistage wet ends on the BSM2F-2MXHLM-206 combine under duty assist automation to deliver up to 160 L/min (9.6 m³/h) across shared manifolds.
Which electrical power mains and automated motor control board regulate this booster set?
Dual single phase 230V induction motors totaling 2.2 kW run the BSM2F 2 MXHLM 206 at 50 Hz, coordinated by an automated sequencing control panel.
Under what maximum static head elevation and line pressure limits does this package operate?
Capable of lifting water up to 65 metres of total head, the 2MXHLM 206 (BSM2F 2MXHLM 206) conforms to a 10 bar maximum casing limit and operates between -15°C to +110°C.
