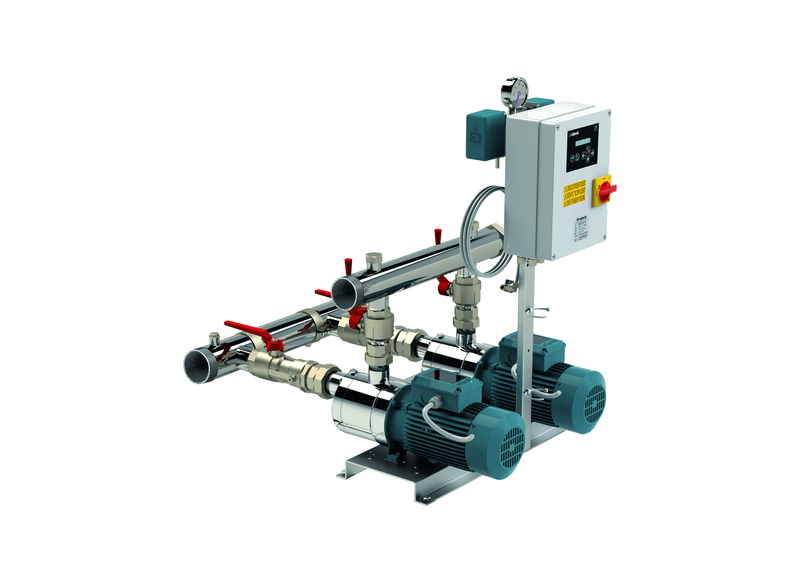

Calpeda BSM2F 2MXHLM 803 Single Phase 2 x 1.1kW Fixed Speed Twin Pump Multistage Booster System
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Busy commercial pipework and multi-residential amenities require dependable pressure management, a challenge met effortlessly by the Calpeda BSM2F 2MXHLM 803 booster assembly. Built around two horizontal multistage Calpeda MXHLM 803 pumps mounted on a unified base, this twin-pump system supplies up to 433.4 L/Min of combined flow. Where vertical lift is required, the multistage hydraulics can develop up to 32 m of head. Its balanced hydraulic profile ensures showers, plant rooms, and commercial risers maintain consistent water delivery during peak usage.
System automation relies on differential pressure switches paired with a dedicated microprocessor control board to coordinate pump operation smoothly. When downstream water consumption increases beyond the capacity of a single unit, the controller brings the second pump online in a staged cascade sequence. Automatic duty alternation swaps the lead pump on successive cycles to equalise mechanical wear across both assemblies, while anti-cycling logic prevents rapid starting and stopping during minor pressure fluctuations.
Internal skid piping is handled by corrosion-resistant AISI 304 stainless steel suction and delivery manifolds engineered for hygienic durability. The intake header provides a 65 mm inlet connection while the discharge side terminates in a 50 mm outlet port, minimising friction losses through the pipework. Dedicated isolation ball valves and non-return check valves on each pump branch allow maintenance without shutting down the entire riser, complemented by a pressure gauge and external vessel connection port.
Single-phase mains power enters via a single-phase 230 V feed that drives both heavy-duty 2-pole induction motors directly. Operating at a nominal speed of 2900 rpm on a 50 Hz frequency, each motor delivers 1.1 kW (P2) of mechanical shaft output while drawing a rated current of 7.4 A under full load. Manufactured in strict accordance with IEC 60034 standards and equipped with Class F winding insulation, the drive assemblies support continuous thermal stability.
Key Features
- Twin-Pump Redundancy: Dual horizontal multistage pumps operate in duty-assist configuration to preserve water supply during peak demand or routine servicing.
- Precision Impeller Geometry: Constructed with a 3-stage stainless steel hydraulic end that maintains smooth, quiet pressure generation across varying flow rates.
- Microprocessor Cascade Control: Coordinates differential pressure switches to stage pumps sequentially and alternate lead duty automatically.
- Hygienic Stainless Headers: AISI 304 suction and delivery manifolds resist internal corrosion and preserve potable water quality.
- Broad Thermal Capability: Engineered to pump hot and chilled liquids reliably across a wide temperature spectrum from -15 °C to +110 °C.
- Environmental Enclosure Protection: Motor housings are sealed to IP54 standards with Class F insulation to guard against plant-room dust and moisture splashes.
- Serviceable Valve Architecture: Individual isolation ball valves and non-return valves allow either pump to be isolated for maintenance without system drainage.
- Turnkey Factory Verification: Delivered as a pre-wired, hydrostatically tested package backed by a 24 Months manufacturer warranty.
What's Included
- 2 x Calpeda MXHLM 803 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Microprocessor control board with differential pressure switches
- System pressure gauge
- Factory assembled and tested boosting plant
- Supports a 500 L galvanised diaphragm expansion tank
SPECIFICATIONS
| Max Flow | 433 L/Min |
| Max Head | 32 m |
| Power | 2 x 1.1 kW / 240v |
| Rated Current | 2 x 7.4 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which acid resistant wetted stainless components and manifold pipework are fitted?
Constructed with AISI 316L chromium-nickel-molybdenum stainless steel wetted assemblies, the Calpeda Fixed Speed Booster Set BSM2F 2MXHLM 803 is mounted on a Zinc-plated Steel S235JR baseplate with G 2 1/2 suction and G 2 delivery manifolds.
What manufacturer warranty protection coverage supports this fixed speed pumping assembly?
Protection for the BSM2F 2MXHLM 803 is secured by Calpeda manufacturer warranty coverage guarding the pump wet end, electric motor assembly, and control console against defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Configured for synchronized parallel staging, the BSM2F-2MXHLM-803 achieves a collective maximum rated flow capacity of 433.4 L/min (26 m³/h) during peak draw.
Which electrical power mains and automated motor control board regulate this booster set?
Electrical connection for the BSM2F 2 MXHLM 803 requires single phase 230V power at 50 Hz, driving twin motors totaling 2.2 kW via an automated fixed-speed sequencing control panel (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the 2MXHLM 803 (BSM2F 2MXHLM 803) reaches up to 32 metres, while pump casings withstand up to 10 bar across liquid temperatures from -15°C to +110°C.
