SKU: BSM2V 2MXH 1602-EMT*

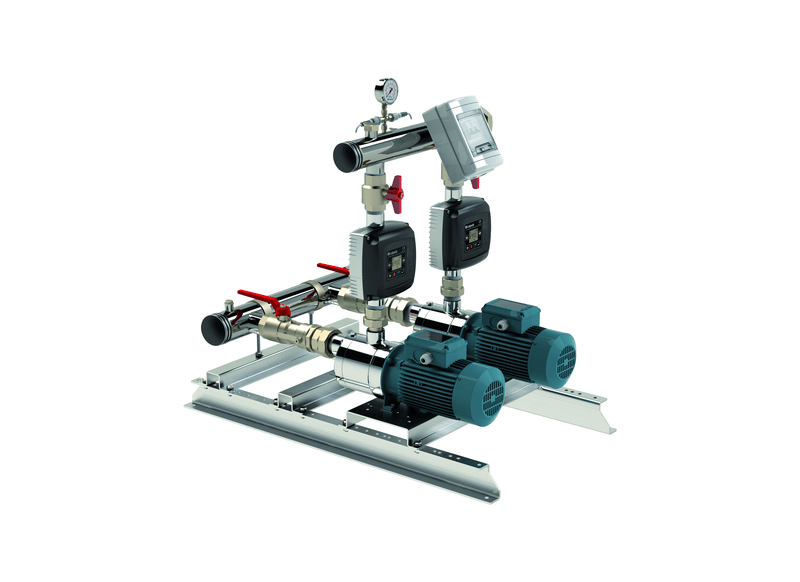

Calpeda BSM2V 2MXH 1602-EMT 2 x 1.5kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
High-volume ring mains and low-to-medium head transfer circuits benefit from the broad hydraulic capacity of the Calpeda BSM2V 2MXH 1602-EMT booster set. Combining two MXH 1602 horizontal multistage pumps on a shared skid, this unit delivers generous flows up to 833.4 L/Min. To overcome static elevation and pipe friction, the wet end can generate up to 23 m of head. It excels in commercial amenities blocks, agricultural washdown stations, and HVAC distribution headers where volume flow stability is critical.
Dynamic inverter modulation is managed directly by dual I-MAT frequency converters mounted onto the motor frames. By tracking real-time discharge pressure, the inverters ramp impeller speed up or down to eliminate pressure surges and water hammer as outlets open and close. Automatic lead-lag staging brings the second pump online during peak draw-off, while integrated electronic protections guard against dry-run operation, phase loss, and motor overload.
Fluid routing relies on heavy-duty AISI 304 stainless steel suction and delivery manifolds designed to minimise friction losses at high flow velocities. The suction collector features an 80 mm inlet connection, paired with a 65 mm outlet port on the discharge header. Full-bore isolation ball valves and non-return valves on every pump branch simplify routine inspection, supported by a clear system pressure gauge and a delivery port for an external pressure vessel.
Designed to simplify site wiring, the system accepts a single-phase 230 V incoming supply and converts it internally for three-phase 230/400 V motor windings. Each 2-pole induction motor operates at approximately 2900 rpm at 50 Hz, producing 1.5 kW (P2) of mechanical power with a rated current draw of 3.6 A. Full compliance with IEC 60034 specifications and Class F insulation ensures dependable thermal resilience during sustained running.
Key Features
- High-Flow 2-stage Hydraulics: Dual stainless steel multistage impellers generate high flow volume with smooth, pulsation-free delivery.
- Dual Onboard I-MAT Drives: Intelligent frequency converters match motor output to exact hydraulic demand for superior energy economy.
- Hygienic AISI 304 Pipework: Corrosion-resistant stainless steel headers and wet-end components ensure long service life in potable and process water duties.
- Hot and Cold Liquid Capability: Rated for fluid temperatures spanning -15 °C to +110 °C to suit chilled water or hot circulating circuits.
- Industrial Motor Construction: Built to IEC 60034 requirements with Class F winding insulation for reliable continuous-duty thermal performance.
- Independent Branch Isolation: Equipped with dedicated shut-off ball valves and check valves so either pump can be isolated without system downtime.
- Balanced Wear Cycling: Automated duty rotation alternates the primary running unit to extend bearing and seal longevity.
- Plug-and-Play Skid Assembly: Supplied pre-piped with a vessel connection point on the delivery manifold and covered by a 24 Months warranty.
What's Included
- 2 x Calpeda MXH 1602 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 833 L/Min |
| Max Head | 23 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 3.6 Amps |
| Suitable For | Industrial & Commercial Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What official warranty coverage applies to this dual pump variable speed booster assembly?
Dual-pump investment in the Calpeda Variable Speed Booster Set BSM2V 2MXH 1602-EMT is backed by Calpeda manufacturer warranty coverage shielding both wet ends, motors, and dual inverters from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Configured for synchronized parallel staging, the BSM2V 2MXH 1602-EMT achieves a collective maximum rated flow capacity of 833.4 L/min (50 m³/h) during peak draw.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Electrical connection for the BSM2V-2MXH-1602-EMT requires single phase 230V power at 50 Hz, driving twin motors totaling 3 kW via dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the BSM2V 2 MXH 1602-EMT reaches up to 23 metres, while pump casings withstand up to 8 bar across liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Common manifold plumbing on the 2MXH 1602-EMT (BSM2V 2MXH 1602-EMT) provides G 3" BSP suction and G 2 1/2" BSP delivery connections, joining the AISI 304 chromium-nickel stainless steel pumps on an AISI 304 Stainless Steel Baseplate.
