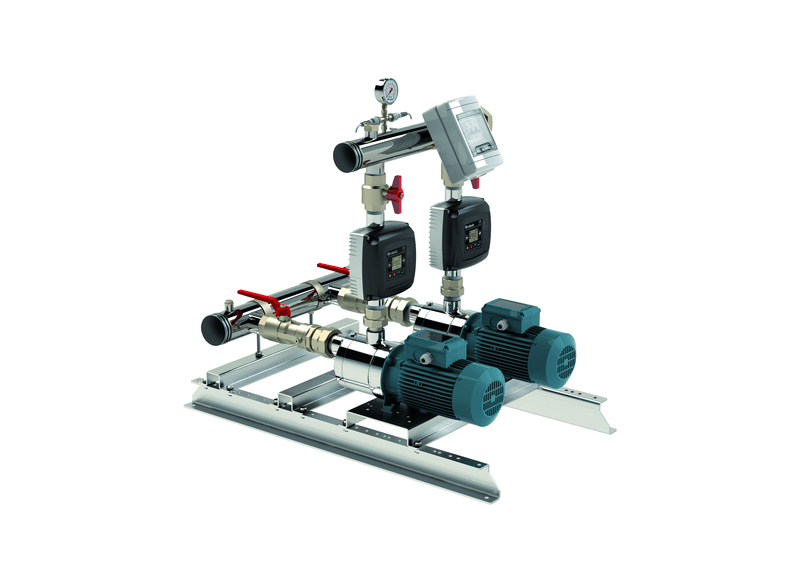

Calpeda BSM2V 2MXH 1603-EMT 2 x 1.8kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Sustaining strong water pressure across sprawling commercial facilities and multi-zone irrigation or washdown networks is seamless with the Calpeda BSM2V 2MXH 1603-EMT package. Driven by two horizontal multistage MXH 1603 pumps working in tandem, this twin booster assembly supplies up to 833.4 L/Min of flow. When boosting water to upper floors, the system can develop up to 31.9 m of delivery head. Its balanced duty-assist arrangement ensures uninterrupted delivery even when simultaneous fixtures open across large sites.
Each pump carries its own dedicated I-MAT frequency converter, enabling precise proportional speed regulation across the entire operating curve. Rather than cycling abruptly between cut-in and cut-out limits, the drives modulate rotational speed to lock onto the desired system pressure while trimming power usage at partial loads. Smart cascade logic rotates the lead pump assignment automatically and incorporates comprehensive dry-run, thermal, and voltage fault protection.
Engineered around fabricated AISI 304 stainless steel manifolds, the hydraulic manifold assembly resists rust, scaling, and internal erosion. Water enters through a generous 80 mm suction header and exits via a 65 mm delivery manifold sized to keep fluid velocities low and quiet. Dedicated isolation ball valves, non-return check valves, an easy-to-read pressure gauge, and a threaded port on the discharge header for an external diaphragm tank complete the mechanical layout.
Switchboard wiring stays simple because the dual inverters run off a single-phase 230 V power source while supplying three-phase 230/400 V output to the motors. Every 2-pole induction unit spins at roughly 2900 rpm on 50 Hz, rated at 1.8 kW (P2) per pump with a full-load current of 4.8 A. Built in accordance with IEC 60034 standards and protected by Class F insulation, the drive train handles rigorous daily operation.
Key Features
- Robust 3-stage Impeller Stack: Twin horizontal multistage pumps deliver elevated discharge head alongside high volumetric flow capacity.
- Proportional I-MAT Speed Control: Dual variable-speed inverters maintain rock-steady manifold pressure while reducing electrical consumption.
- Stainless Steel AISI 304 Headers: Large-bore suction and discharge manifolds prevent corrosion and minimise hydraulic head loss.
- Broad Temperature Tolerance: Handles water and compatible clean fluids from -15 °C to +110 °C across diverse building services.
- Sealed Drive Enclosure: Protected to IP54 environmental standards with Class F motor insulation to resist dust and moisture ingress in plant rooms.
- On-Line Maintenance Valves: Fitted with individual isolation ball valves and check valves to prevent backflow and allow single-pump servicing.
- Smart Lead-Lag Sequencing: Automatic alternation distributes run time evenly between both pumps to maximise equipment lifespan.
- Ready-to-Install Package: Factory tested on a rigid base with an external vessel connection point and backed by a 24 Months warranty.
What's Included
- 2 x Calpeda MXH 1603 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 833 L/Min |
| Max Head | 31.9 m |
| Power | 2 x 1.8 kW / 415v |
| Rated Current | 2 x 4.8 Amps |
| Suitable For | Industrial & Commercial Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In litres per minute, what maximum water throughput can this dual pump booster deliver?
Parallel pump assist staging allows the Calpeda Variable Speed Booster Set BSM2V 2MXH 1603-EMT to supply a combined maximum throughput of 833.4 L/min (50 m³/h) during heavy consumption cycles.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Electrical connection for the BSM2V 2MXH 1603-EMT requires single phase 230V power at 50 Hz, driving twin motors totaling 3 kW via dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the BSM2V-2MXH-1603-EMT reaches up to 31.9 metres, while pump casings withstand up to 8 bar across liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Common manifold plumbing on the BSM2V 2 MXH 1603-EMT provides G 3" BSP suction and G 2 1/2" BSP delivery connections, joining the AISI 304 chromium-nickel stainless steel pumps on an AISI 304 Stainless Steel Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
All core pumping elements of the 2MXH 1603-EMT (BSM2V 2MXH 1603-EMT), including the multistage pump wet end, electric motor, and electronic frequency converter, are covered by Calpeda manufacturer warranty from date of invoice.
