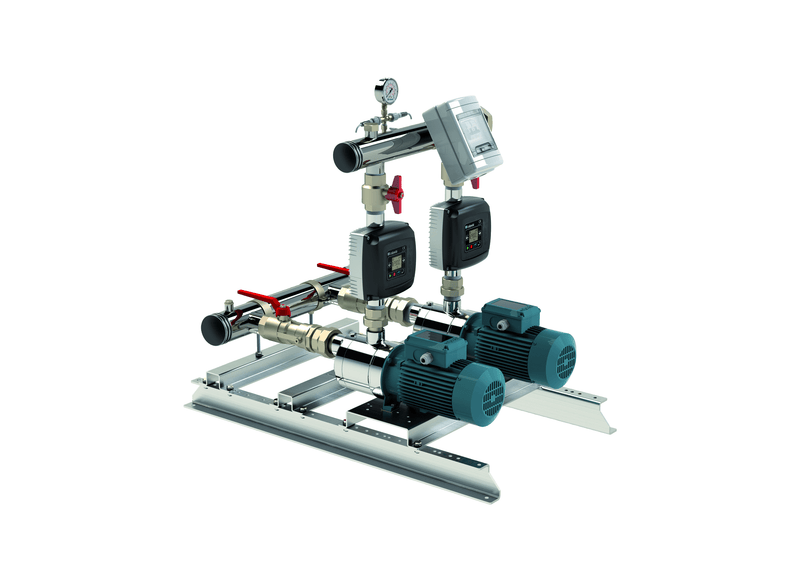

Calpeda BSM2V 2MXH 2001-EMT 2 x 1.8kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Large-bore water circulation and rapid transfer duties demand a booster set that prioritises high flow efficiency, a role fulfilled by the Calpeda BSM2V 2MXH 2001-EMT. Anchored by two MXH 2001 horizontal multistage pumps mounted on a common frame, this package achieves flow rates up to 800 L/Min. Up to 15.6 m of head is available to maintain line pressure across elevated risers. It provides steady, responsive pressurisation for commercial complexes, sports facilities, and industrial process lines.
Real-time pressure modulation comes from the twin onboard I-MAT frequency converters fitted directly to each motor. By continuously matching motor speed to instantaneous water draw, the inverters hold line pressure constant and eliminate wasteful full-speed starts during low-flow periods. When demand spikes, the lag pump stages in smoothly, while automated duty alternation and built-in safeguards against dry running or electrical overload protect system integrity.
Primary header pipework features corrosion-resistant AISI 304 stainless steel suction and delivery manifolds built for durability and clean water handling. The assembly pairs an 80 mm inlet header with a 65 mm outlet manifold to accommodate substantial volumetric throughput without excessive turbulence. Integrated isolation ball valves, spring-loaded non-return valves, a dial pressure gauge, and a delivery header connection point for an external expansion vessel streamline site installation.
Powered via a standard single-phase 230 V supply, the inverter modules feed three-phase 230/400 V current directly to the heavy-duty motor windings. Each 2-pole induction motor operates at 2900 rpm (50 Hz) and provides 1.8 kW (P2) output while drawing a remarkably low 2.7 A rated current. Constructed to IEC 60034 benchmarks with Class F thermal insulation, the electrical assembly ensures cool, dependable operation under continuous load.
Key Features
- High-Efficiency 1-stage Design: Twin MXH 2001 horizontal pumps combine multistage casing rigidity with high-volume hydraulic throughput.
- Integrated I-MAT Frequency Drives: Dual variable-speed controllers modulate output smoothly to maintain constant pressure and cut energy costs.
- AISI 304 Stainless Steel Manifolds: Rust-proof suction and discharge collectors ensure hygienic fluid transfer and long structural life.
- Wide Liquid Temperature Range: Capable of pumping clean hot or cold water across a thermal span of -15 °C to +110 °C.
- IEC 60034 Motor Engineering: Equipped with Class F winding insulation and precision bearings for reliable continuous-duty service.
- Full Isolation and Check Valving: Individual ball valves and non-return valves prevent reverse spinning and allow isolated servicing.
- Automated Duty Sharing: Alternates the lead and lag pump sequence automatically to prevent stagnation and even out wear.
- Factory Tested Reliability: Delivered fully assembled with a delivery header vessel connection port and supported by a 24 Months warranty.
What's Included
- 2 x Calpeda MXH 2001 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 15.6 m |
| Power | 2 x 1.8 kW / 415v |
| Rated Current | 2 x 2.7 Amps |
| Suitable For | Industrial & Commercial Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What incoming single phase electrical power circuit and dual frequency drives govern both pump units?
Dual single phase 230V motors providing 2.2 kW total power drive the Calpeda Variable Speed Booster Set BSM2V 2MXH 2001-EMT, governed by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the BSM2V 2MXH 2001-EMT reaches up to 15.6 metres, while pump casings withstand up to 10 bar across liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Common manifold plumbing on the BSM2V-2MXH-2001-EMT provides G 3" BSP suction and G 2 1/2" BSP delivery connections, joining the AISI 304 chromium-nickel stainless steel pumps on an AISI 304 Stainless Steel Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
All core pumping elements of the BSM2V 2 MXH 2001-EMT, including the multistage pump wet end, electric motor, and electronic frequency converter, are covered by Calpeda manufacturer warranty from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Combined hydraulic output on the 2MXH 2001-EMT (BSM2V 2MXH 2001-EMT) reaches a collective maximum rating of 800 L/min (48 m³/h) under full dual-pump operation.
