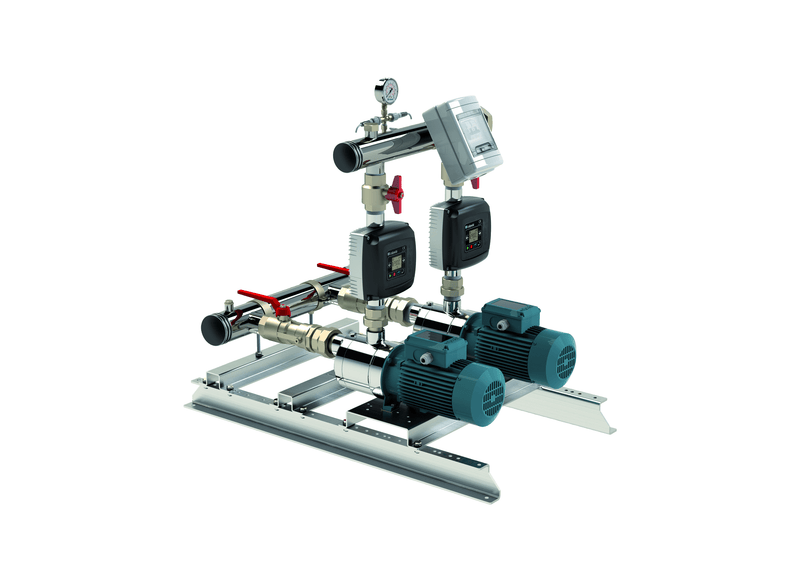

Calpeda BSM2V 2MXHL 203-EMT 2 x 0.37kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Compact residential blocks, boutique accommodation, and light commercial buildings gain whisper-quiet pressure control with the Calpeda BSM2V 2MXHL 203-EMT booster set. Pairing two horizontal multistage MXHL 203 pumps on a space-saving chassis, this system delivers flow rates up to 160 L/Min. The multistage impeller stack can develop up to 33.5 m of head to overcome static building height. It ensures steady water delivery to showers, kitchens, and hydronic circuits without the pressure swings of traditional fixed-speed sets.
Dual integrated I-MAT frequency converters sit directly atop the motors to provide seamless variable-speed modulation across changing load conditions. By continuously monitoring outlet pressure, the inverters adjust rotational speed to match exact fixture demand and bring the lag pump online smoothly when usage climbs. Automated duty alternation equalises wear across both pumps, while onboard electronics guard against dry running, overcurrent, and supply voltage anomalies.
Stainless steel AISI 304 suction and delivery manifolds form a hygienic, rust-free hydraulic backbone suited to potable and hot water applications. The manifold layout incorporates a 50 mm inlet header feeding both pumps and a 40 mm outlet collector for the discharge line. Individual isolation ball valves, non-return check valves, an integrated system pressure gauge, and a connection port on the delivery header for an external tank come pre-fitted.
Running from a single-phase 230 V mains connection, the inverter units supply three-phase 230/400 V power to the internal motor windings. Each 2-pole induction motor operates at 2900 rpm on a 50 Hz base frequency, rated at an economical 0.37 kW (P2) per pump and drawing just 1.4 A. Built to IEC 60034 standards with Class F insulation, the motors offer exceptional efficiency and long-term reliability.
Key Features
- Compact 3-stage Multistage Pumps: Twin Calpeda MXHL 203 stainless steel pumps provide smooth, quiet pressurisation with full duty-standby security.
- Direct-Mount I-MAT Inverters: Variable-speed frequency drives modulate motor output to keep line pressure constant and reduce electricity usage.
- AISI 304 Stainless Manifolds: Corrosion-resistant suction and discharge headers preserve water cleanliness and withstand continuous system pressure.
- Extended Fluid Temperature Range: Safely pumps hot or chilled clean liquids ranging from -15 °C to +110 °C across diverse plumbing setups.
- Weatherproof Enclosure Rating: Sealed to IP54 ingress standards with Class F winding insulation to protect against dust and moisture in plant enclosures.
- Integrated Isolation and Check Valves: Dedicated ball valves and non-return valves on each pump leg enable maintenance without shutting down water supply.
- Balanced Duty Alternation: Automatically rotates the lead and lag pump sequence between cycles to extend mechanical seal and bearing life.
- Pre-Tested Skid Package: Arrives factory assembled with a vessel connection point on the delivery header and a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 203 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 33.5 m |
| Power | 2 x 0.37 kW / 415v |
| Rated Current | 2 x 1.4 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which stainless steel alloy and common manifold port sizes are fitted across the twin set?
Shared manifold pipework on the Calpeda Variable Speed Booster Set BSM2V 2MXHL 203-EMT provides G 2" BSP suction and G 1 1/2" BSP delivery headers, joining twin AISI 304 chromium-nickel stainless steel pumps on a Zinc-plated Steel S235JR Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
All core pumping elements of the BSM2V 2MXHL 203-EMT, including the multistage pump wet end, electric motor, and electronic frequency converter, are covered by Calpeda manufacturer warranty from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Combined hydraulic output on the BSM2V-2MXHL-203-EMT reaches a collective maximum rating of 160 L/min (9.6 m³/h) under full dual-pump operation.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Powered by single phase 230V mains electricity at 50 Hz, the BSM2V 2 MXHL 203-EMT utilizes twin motors totaling 1.1 kW managed by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Vertical water elevation reaches up to 33.5 metres on the 2MXHL 203-EMT (BSM2V 2MXHL 203-EMT), supported by a 10 bar casing pressure threshold and fluid tolerances up to +40°C.
