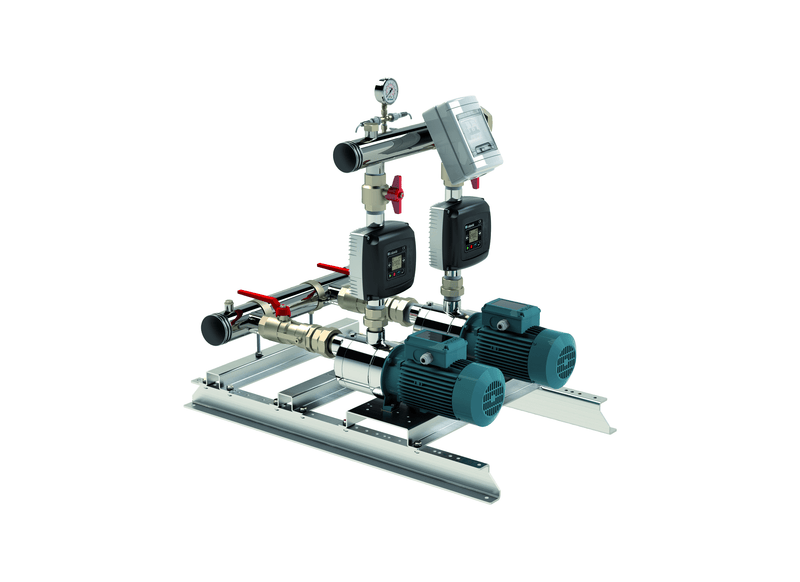

Calpeda BSM2V 2MXHL 205-EMT 2 x 0.75kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Delivering crisp, reliable water pressure to taller apartment buildings, commercial kitchens, and pressurised process lines is effortless with the Calpeda BSM2V 2MXHL 205-EMT package. Featuring two horizontal multistage MXHL 205 pumps mounted on a unified skid, this booster system supplies up to 160 L/Min of flow. To support elevated outlets and long pipe runs, the package can deliver up to 53.5 m of head. Dual-pump redundancy ensures continuous water availability even during peak draw-off or routine maintenance.
Automated speed modulation is handled by twin I-MAT frequency converters integrated directly onto the pump motors. By reading system pressure in real time, the drives continuously trim or boost impeller speed to maintain the exact target pressure while minimising kilowatt-hour consumption. Seamless cascade control brings the assist pump online smoothly during high demand, alternates lead duty between cycles, and protects against dry running and electrical surges.
Intake and discharge headers are fabricated from corrosion-resistant AISI 304 stainless steel to preserve water purity and structural integrity. Plumbing integration is straightforward thanks to a 50 mm inlet manifold paired with a 40 mm outlet header. Every pump leg is equipped with isolation ball valves and non-return check valves, while the discharge manifold incorporates a system pressure gauge and a connection point for an external pressure vessel.
Drawing from a standard single-phase 230 V electrical feed, the onboard frequency drives convert the supply to run the three-phase 230/400 V motor windings efficiently. Each 2-pole induction motor operates at a nominal 2900 rpm (50 Hz) speed, producing 0.75 kW (P2) of mechanical power and drawing 2 A at full load. Engineered to IEC 60034 standards with Class F insulation, the motors resist thermal stress in warm plant rooms.
Key Features
- High-Head 5-stage Hydraulics: Dual stainless steel multistage pumps build strong vertical lift for multi-storey plumbing and industrial boosting.
- Intelligent I-MAT Inverter Control: Pump-mounted variable-frequency drives match motor speed to real-time demand for smooth pressure and energy savings.
- Hygienic AISI 304 Manifolds: Stainless steel suction and delivery pipework prevents rust contamination and reduces internal friction losses.
- Broad Liquid Temperature Capability: Suitable for cold, ambient, and hot water applications ranging from -15 °C to +110 °C.
- Robust Motor Enclosure: Protected to IP54 standards with Class F thermal insulation to keep dust and water spray away from electrical windings.
- Service-Ready Valve Arrangement: Includes isolation ball valves and check valves on each pump to allow maintenance without shutting off the main line.
- Smart Duty Cycling: Alternates lead and lag pump operation automatically to balance running hours across both units.
- Factory Assembled Skid: Delivered pre-wired and tested with a header port for an external vessel, supported by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 205 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 53.5 m |
| Power | 2 x 0.75 kW / 415v |
| Rated Current | 2 x 2 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dual pump discharge capacity can both horizontal multistage pumps deliver in parallel?
Dual horizontal wet ends running in tandem on the Calpeda Variable Speed Booster Set BSM2V 2MXHL 205-EMT generate up to 160 L/min (9.6 m³/h) of peak volume under variable speed modulation.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Powered by single phase 230V mains electricity at 50 Hz, the BSM2V 2MXHL 205-EMT utilizes twin motors totaling 1.5 kW managed by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Vertical water elevation reaches up to 53.5 metres on the BSM2V-2MXHL-205-EMT, supported by a 10 bar casing pressure threshold and fluid tolerances up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Corrosion-resistant AISI 304 chromium-nickel stainless steel forms all pump wet ends on the BSM2V 2 MXHL 205-EMT, assembled upon a Zinc-plated Steel S235JR Baseplate with check valves and G 2" BSP by G 1 1/2" BSP common headers.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Factory warranty backing on the 2MXHL 205-EMT (BSM2V 2MXHL 205-EMT) shields the stainless pump wet end, electric motor, and automated inverter against manufacturing faults from date of invoice.
