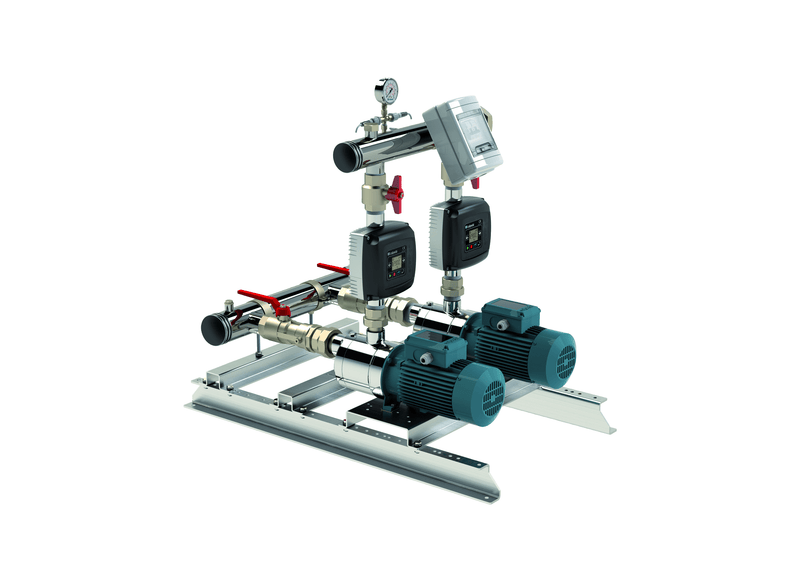

Calpeda BSM2V 2MXHL 206-EMT 2 x 1.1kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Pushing water against steep lift in multi-storey developments, elevated estates, and high-pressure hot-water loops requires the focused hydraulic punch of the Calpeda BSM2V 2MXHL 206-EMT. Equipped with two horizontal multistage MXHL 206 pumps on a shared base frame, this twin booster set delivers up to 160 L/Min of flow. For demanding vertical distribution, the multistage design can build up to 65 m of head. It maintains steady outlet pressure across upper-level fixtures without faltering.
Real-time frequency regulation is provided by two onboard I-MAT variable-speed drives mounted directly to the motor housings. Rather than running at fixed full speed, the converters modulate motor rpm to hold discharge pressure constant and stage the second pump only when system draw increases. Built-in control logic rotates lead and lag duties automatically while shielding the pumps against dry running, phase failure, and overcurrent conditions.
Fabricated from premium AISI 304 stainless steel, the suction and delivery manifolds offer exceptional resistance to corrosion and thermal expansion. A 50 mm suction collector distributes incoming water to both pumps, while the 40 mm delivery header channels pressurised flow into the building riser. Full-bore isolation ball valves, non-return check valves, an analogue pressure gauge, and a delivery connection point for an external diaphragm tank are integrated as standard.
Fed by a single-phase 230 V site supply, the twin inverters generate three-phase 230/400 V power to drive the industrial motor windings. Each 2-pole induction unit runs at approximately 2900 rpm on 50 Hz, rated at 1.1 kW (P2) per pump with a full-load current draw of 2.7 A. Manufactured to IEC 60034 standards with Class F winding insulation, the motors deliver reliable longevity under sustained pressure loads.
Key Features
- High-Pressure 6-stage Design: Twin MXHL 206 horizontal multistage pumps generate substantial head for tall buildings and long pipe runs.
- Onboard I-MAT Frequency Drives: Dual variable-speed inverters continuously tune motor speed to maintain constant pressure and lower power usage.
- AISI 304 Stainless Steel Pipework: Corrosion-proof suction and discharge manifolds ensure clean water transfer and long mechanical life.
- Versatile Temperature Rating: Engineered to handle liquid temperatures from -15 °C to +110 °C across heating, cooling, and potable circuits.
- Enclosure Ingress Protection: Sealed to IP54 standards alongside Class F insulation to protect motor and drive electronics from plant room moisture and dust.
- Independent Isolation Valving: Integrated ball valves and non-return valves allow either pump to be isolated for servicing while maintaining building supply.
- Automated Lead-Lag Alternation: Balances operating hours between both pumps to prevent stagnant water and extend seal life.
- Complete Tested Package: Supplied fully assembled with an external vessel connection port and backed by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 206 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 65 m |
| Power | 2 x 1.1 kW / 415v |
| Rated Current | 2 x 2.7 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which dual motor kilowatt rating and alternating inverter controls regulate this system?
Two-pole induction motors totaling 2.2 kW run the Calpeda Variable Speed Booster Set BSM2V 2MXHL 206-EMT on single phase 230V power, managed by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Vertical water elevation reaches up to 65 metres on the BSM2V 2MXHL 206-EMT, supported by a 10 bar casing pressure threshold and fluid tolerances up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Corrosion-resistant AISI 304 chromium-nickel stainless steel forms all pump wet ends on the BSM2V-2MXHL-206-EMT, assembled upon a Zinc-plated Steel S235JR Baseplate with check valves and G 2" BSP by G 1 1/2" BSP common headers.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Factory warranty backing on the BSM2V 2 MXHL 206-EMT shields the stainless pump wet end, electric motor, and automated inverter against manufacturing faults from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Tandem pump operation enables the 2MXHL 206-EMT (BSM2V 2MXHL 206-EMT) to sustain an expansive peak discharge volume of 160 L/min (9.6 m³/h) across distribution risers.
