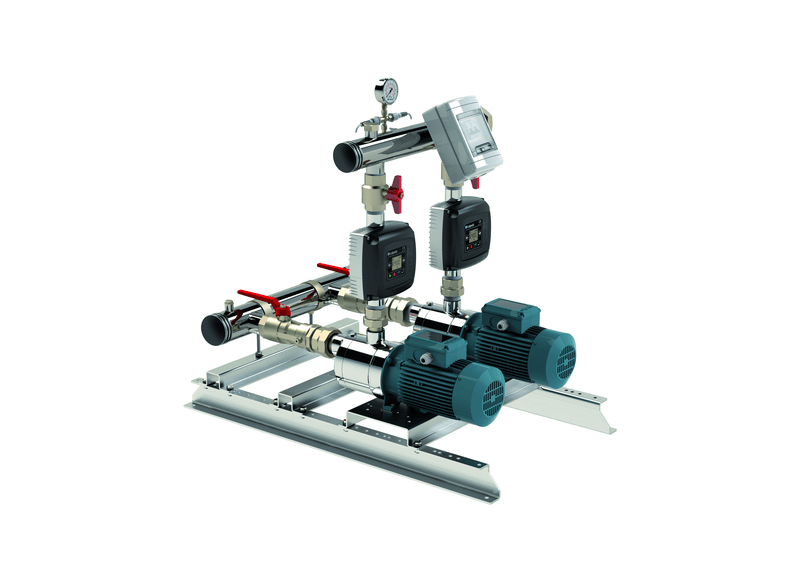

Calpeda BSM2V 2MXHL 207-EMT 2 x 1.1kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Steep-head plumbing applications such as tall commercial towers, hillside properties, and industrial boiler or washdown feeds are ideally served by the Calpeda BSM2V 2MXHL 207-EMT booster set. Combining two horizontal multistage MXHL 207 pumps on a heavy-duty frame, this package provides flows up to 160 L/Min. Up to 75.3 m of delivery head can be developed to keep upper-level fixtures properly pressurised. Its twin-pump duty-assist design guarantees strong, uninterrupted pressure at the highest outlets.
Continuous pressure optimisation is achieved through dual I-MAT variable-speed frequency converters mounted directly onto each pump motor. By sensing manifold pressure changes instantaneously, the drives adjust rotational speed to keep line pressure stable and bring the secondary unit online smoothly during peak draw. Intelligent software alternates the lead pump role between cycles to equalise wear and incorporates automatic dry-run, thermal, and voltage protection.
Precision-engineered AISI 304 stainless steel suction and delivery manifolds ensure hygienic water handling and superior structural durability under high pressure. The inlet manifold features a 50 mm connection, matched with a 40 mm discharge outlet header for efficient hydraulic routing. Dedicated isolation ball valves, non-return check valves, a clear dial pressure gauge, and a threaded port on the delivery header for an external expansion vessel come factory fitted.
Wired for a single-phase 230 V incoming power supply, the onboard frequency converters deliver three-phase 230/400 V output to the motor windings. Each 2-pole induction motor operates at 2900 rpm (50 Hz) and produces 1.1 kW (P2) of shaft power while drawing 2.7 A at full duty. Built in compliance with IEC 60034 standards and equipped with Class F insulation, the motors withstand rigorous continuous operation.
Key Features
- Extra-High-Head 7-stage Impellers: Two Calpeda MXHL 207 stainless steel multistage pumps deliver exceptional vertical lift and backup security.
- Dual Integrated I-MAT Inverters: Variable-frequency drives modulate pump speed to maintain steady pressure, eliminate water hammer, and save energy.
- AISI 304 Stainless Manifolds: Rust-resistant suction and discharge collectors maintain water quality and endure high operating pressures.
- Wide Thermal Operating Spectrum: Rated for clean liquids from -15 °C to +110 °C to support both chilled water and hot circulating loops.
- Protected Drive Enclosure: Built to IP54 ingress standards with Class F winding insulation for dependable operation in damp or dusty plant rooms.
- Full Service Isolation: Equipped with individual ball valves and non-return check valves so maintenance can proceed without system shutdown.
- Automatic Duty Rotation: Alternates lead and assist pump assignments automatically to ensure uniform wear across bearings and seals.
- Pre-Assembled Booster Plant: Factory tested with a delivery header connection point for an external tank and covered by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 207 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 75.3 m |
| Power | 2 x 1.1 kW / 415v |
| Rated Current | 2 x 2.7 Amps |
| Suitable For | Commercial & Residential Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
To what total elevation head height in metres can this dual variable speed set lift water?
Maximum elevation boost on the Calpeda Variable Speed Booster Set BSM2V 2MXHL 207-EMT reaches 75.3 metres, with a maximum casing pressure of 10 bar and fluid temperature limits up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Corrosion-resistant AISI 304 chromium-nickel stainless steel forms all pump wet ends on the BSM2V 2MXHL 207-EMT, assembled upon a Zinc-plated Steel S235JR Baseplate with check valves and G 2" BSP by G 1 1/2" BSP common headers.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Factory warranty backing on the BSM2V-2MXHL-207-EMT shields the stainless pump wet end, electric motor, and automated inverter against manufacturing faults from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Tandem pump operation enables the BSM2V 2 MXHL 207-EMT to sustain an expansive peak discharge volume of 160 L/min (9.6 m³/h) across distribution risers.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Mains electrical input for the 2MXHL 207-EMT (BSM2V 2MXHL 207-EMT) utilizes 230V single phase 50 Hz current to drive dual motors totaling 2.2 kW under dual communicating EASYMAT variable speed frequency converters (230V).
