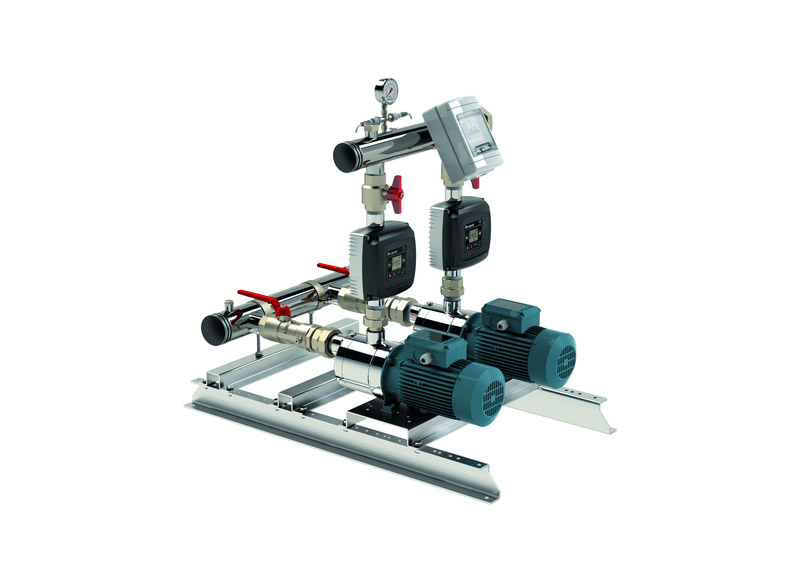

Calpeda BSM2V 2MXHL 402-EMT 2 x 0.37kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Medium-density apartment blocks, hospitality venues, and low-rise amenities blocks frequently require generous water volume at moderate boost pressures. Built to satisfy high-flow circulation and pressurisation tasks, the BSM2V 2MXHL 402-EMT combines two Calpeda MXHL 402 horizontal multistage pumps on a compact, ready-to-install skid. Under peak simultaneous draw-off, this twin-pump arrangement delivers combined flows up to 266.6 L/Min. To maintain steady pressure across the distribution network, the unit can develop up to 20 m of head.
Seamless pressure modulation comes courtesy of integrated I-MAT frequency converters fitted directly to each pump motor. As building occupants open showers or commercial appliances cycle on, the lead inverter smoothly accelerates its pump to maintain constant line pressure without wasteful throttling. When demand exceeds a single unit's capacity, the second converter automatically stages in to share the hydraulic load while rotating lead-lag roles and providing comprehensive dry-run protection.
Hygienic fluid transfer begins with precision-welded AISI 304 stainless steel manifolds across both the intake and discharge sides of the set. Plumbing contractors can connect supply pipework directly to the 50 mm inlet header and tie building distribution lines into the 40 mm outlet manifold. Full-bore isolation ball valves and integrated check valves prevent backflow and simplify individual pump removal, while an onboard pressure gauge and an external tank connection port streamline commissioning.
Suited to properties without three-phase mains, the booster accepts a single-phase 230 V electrical feed that the inverters convert to run three-phase 230/400 V motor windings. Each 2-pole induction motor reaches a maximum speed of 2900 rpm at 50 Hz and is manufactured to IEC 60034 standards with durable Class F insulation. Offering exceptional energy economy, each motor is rated at 0.37 kW (P2) and draws just 1.4 A at full load.
Key Features
- High-Flow Hydraulic Design: Utilises a compact 2-stage stainless steel impeller configuration optimised for high volume delivery at low-to-medium head.
- Dual Onboard Frequency Converters: Integrated I-MAT drives adjust motor speed dynamically to keep tap pressure constant and minimise power draw.
- Extreme Temperature Versatility: Suitable for both cold water boosting and hot water circulation with a liquid temperature rating of -15 °C to +110 °C.
- Corrosion-Proof Wetted Components: AISI 304 stainless steel manifolds and pump bodies guarantee long-term cleanliness and resistance to aggressive water conditions.
- High-Grade Motor Construction: Built to IEC 60034 standards with Class F winding insulation and 2-pole induction efficiency for continuous commercial duty.
- Independent Branch Isolation: Equipped with individual ball valves and non-return check valves so either pump can be isolated without halting water supply.
- Single-Phase Mains Compatibility: Runs from standard single-phase power while driving three-phase motor windings for smooth, low-vibration torque.
- Ready-to-Plumb Baseplate: Factory assembled and hydrostatically tested with a system pressure gauge and a delivery manifold port for an expansion vessel.
- Guaranteed Reliability: Backed by a 24 Months warranty from Calpeda for assured operational confidence.
What's Included
- 2 x Calpeda MXHL 402 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 267 L/Min |
| Max Head | 20 m |
| Power | 2 x 0.37 kW / 415v |
| Rated Current | 2 x 1.4 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
At what dual discharge rate can this twin pump horizontal set operate under assist mode?
Twin multistage impellers on the Calpeda Variable Speed Booster Set BSM2V 2MXHL 402-EMT combine to discharge a collective peak capacity of 266.6 L/min (16 m³/h) across shared headers.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Mains electrical input for the BSM2V 2MXHL 402-EMT utilizes 230V single phase 50 Hz current to drive dual motors totaling 0.74 kW under dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Developing up to 20 metres of maximum elevation head, the BSM2V-2MXHL-402-EMT is rated for a maximum pump casing pressure of 10 bar and handles liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Multiple AISI 316L chromium-nickel-molybdenum stainless steel pump wet ends equip the BSM2V 2 MXHL 402-EMT, anchored to an AISI 304 Stainless Steel Baseplate and linked via shared G 2" BSP suction and G 1 1/2" BSP delivery manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Purchasers of the 2MXHL 402-EMT (BSM2V 2MXHL 402-EMT) receive dedicated Calpeda warranty support safeguarding all multistage pump wet end components, drive motors, and electronic frequency inverters from date of invoice.
