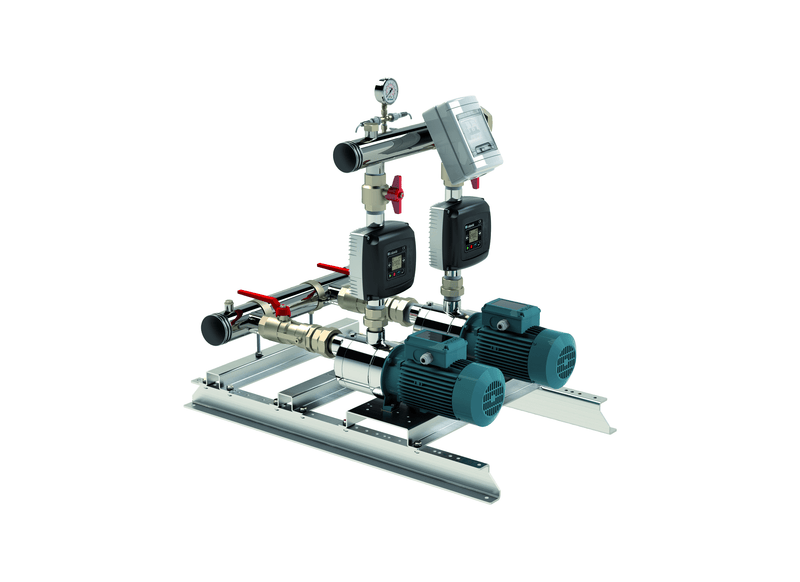

Calpeda BSM2V 2MXHL 406-EMT 2 x 1.5kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Steep static elevations and extended pipe runs in mid-rise apartments, schools, and commercial estates demand both substantial flow capacity and strong discharge pressure. Assembled around two Calpeda MXHL 406 horizontal multistage pumps, the BSM2V 2MXHL 406-EMT twin booster system meets fluctuating hydraulic loads with precision. Working in parallel under peak demand, the dual pumps deliver up to 266.6 L/Min. Where high-pressure boosting is needed, the hydraulic stages can produce up to 63 m of head.
Automatic pressure tracking is managed by integrated I-MAT frequency converters mounted directly onto each motor casing. By continuously sensing manifold pressure, the lead converter speeds up or slows down its pump to hold the desired set point without pressure surges or rapid cycling. During heavy draw-off, the lag unit joins smoothly in cascade, while automated duty alternation and built-in dry-run and overload protections safeguard the entire plant.
Every suction and discharge header is fabricated from hygienic AISI 304 stainless steel to resist internal corrosion and maintain potable water quality. Incoming water enters through a 50 mm suction manifold and exits into the building riser via a 40 mm delivery header. Individual isolation ball valves and non-return check valves on each pump leg enable hassle-free servicing, accompanied by a system pressure gauge and an external vessel port.
Powering the set is remarkably convenient because it connects to a single-phase 230 V mains supply while the inverters feed three-phase 230/400 V motor windings. Each 2-pole induction motor spins up to 2900 rpm on 50 Hz power, built to IEC 60034 standards with high-grade Class F insulation. Delivering 1.5 kW (P2) per pump, each motor draws a rated current of 3.6 A at full output.
Key Features
- Six-Stage Stainless Hydraulics: Incorporates a precision 6-stage impeller and diffuser assembly to generate high pressure alongside generous flow rates.
- Dual Variable-Speed Inverters: Integrated I-MAT frequency converters match motor speed to real-time water demand for steady pressure and energy savings.
- Hot and Chilled Water Ready: Handles clean liquids across a wide operating temperature window from -15 °C to +110 °C without degradation.
- AISI 304 Header Construction: Stainless steel suction and delivery manifolds prevent rust and ensure long service life in potable and process systems.
- IP-Rated Drive Enclosure: Protected to IP54 standards with Class F winding insulation for dependable operation in warm or damp plant environments.
- Redundant Valving Layout: Equipped with isolation ball valves and check valves on both pumps so routine servicing never requires a full building shutdown.
- Phase-Converting Electrical Design: Accepts single-phase mains input while driving three-phase motors for smooth torque and reduced starting currents.
- Turnkey Baseplate Assembly: Delivered factory-plumbed and tested with a pressure gauge and a delivery manifold connection for an external tank.
- Two-Year Warranty Protection: Covered by a 24 Months factory warranty for assured long-term reliability.
What's Included
- 2 x Calpeda MXHL 406 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 267 L/Min |
| Max Head | 63 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 3.6 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does warranty protection safeguard this twin pump horizontal booster assembly?
Investing in the Calpeda Variable Speed Booster Set BSM2V 2MXHL 406-EMT includes dedicated Calpeda warranty support guarding twin pump wet ends, motor units, and electronic drives from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Operating with automated duty assist logic, the BSM2V 2MXHL 406-EMT generates a collective peak throughput of 266.6 L/min (16 m³/h) for intensive site demands.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Operating from single phase 230V utility mains, the BSM2V-2MXHL-406-EMT features twin electric motors totaling 3 kW supervised by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Hydraulic testing certifies the BSM2V 2 MXHL 406-EMT for up to 63 metres of elevation head and a maximum casing pressure of 10 bar across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Manufactured with AISI 304 chromium-nickel stainless steel wetted components, the 2MXHL 406-EMT (BSM2V 2MXHL 406-EMT) is mounted on a Zinc-plated Steel S235JR Baseplate and fitted with isolating valves, non-return valves, and G 2" BSP suction with G 1 1/2" BSP delivery manifolds.
