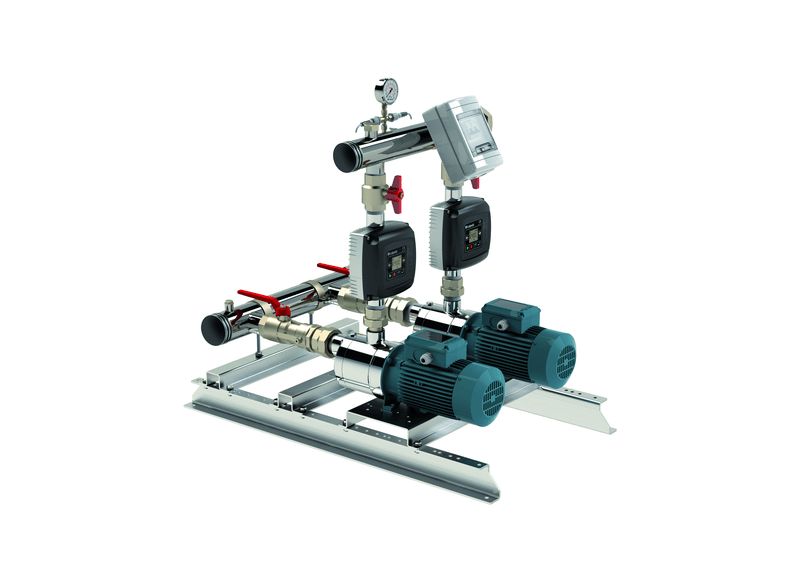

Calpeda BSM2V 2MXHL 407-EMT 2 x 1.5kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Taller multi-storey buildings, hillside estates, and industrial washdown circuits require high-pressure water boosting that never falters when multiple outlets open at once. Featuring two Calpeda MXHL 407 horizontal multistage pumps mounted on a shared structural frame, the BSM2V 2MXHL 407-EMT is built for high-head, high-flow duties. Together, the twin pumps provide a full-load flow of up to 266.6 L/Min. To support elevated outlets and long pipe runs, the package can deliver up to 73 m of head.
Real-time pressure control is achieved through integrated I-MAT frequency converters fitted directly to each pump motor. As water consumption varies across the property, the active drive modulates impeller speed proportionally to lock in constant delivery pressure and eliminate water hammer. When demand exceeds a single pump's envelope, the second inverter stages in automatically, rotates lead-lag assignments to equalise wear, and guards against dry running or electrical faults.
Sturdy AISI 304 stainless steel forms both the suction and delivery manifolds, protecting water purity and preventing rust over years of continuous operation. Plumbers can connect supply lines to the 50 mm suction header and route boosted water from the 40 mm discharge manifold. Full-bore isolation ball valves and non-return check valves on each branch allow independent pump servicing, alongside a manifold pressure gauge and an external tank port.
Despite its high-pressure output, the package runs from a standard single-phase 230 V electrical feed while the onboard converters energise three-phase 230/400 V motor windings. Each 2-pole induction motor operates at up to 2900 rpm (50 Hz) in accordance with IEC 60034 specifications and uses Class F thermal insulation. Rated at 1.5 kW (P2) per pump, each motor draws 3.6 A under full hydraulic load.
Key Features
- Seven-Stage Pressure Boosting: Utilises a 7-stage stainless steel hydraulic stack to overcome tall static elevations while maintaining strong flow delivery.
- Twin I-MAT Speed Modulation: Pump-mounted frequency converters continuously trim motor speed to match demand, saving power and holding steady pressure.
- Extreme Liquid Temperature Range: Safely pumps clean cold or hot water between -15 °C to +110 °C for diverse building and industrial applications.
- Sanitary AISI 304 Manifolds: Corrosion-proof stainless steel suction and discharge headers preserve water cleanliness and structural longevity.
- Protected Motor and Drive Housing: Sealed to IP54 standards with Class F winding insulation to withstand challenging plant room conditions.
- Service-Ready Valving: Individual isolation ball valves and check valves let technicians isolate either pump without cutting off building water supply.
- Single-Phase Supply Convenience: Connects to single-phase mains power while delivering three-phase inverter control to the pump motors.
- Factory-Tested Skid Package: Arrives fully assembled on a rigid baseplate with a pressure gauge and a delivery port for an external pressure vessel.
- Backed by Calpeda: Includes a 24 Months manufacturer warranty for commercial and residential peace of mind.
What's Included
- 2 x Calpeda MXHL 407 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 267 L/Min |
| Max Head | 73 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 3.6 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What total peak water delivery volume can this dual variable speed pumping package provide?
Configured with alternating twin pumps, the Calpeda Variable Speed Booster Set BSM2V 2MXHL 407-EMT delivers an expansive collective peak flow of 266.6 L/min (16 m³/h) across distribution risers.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Operating from single phase 230V utility mains, the BSM2V 2MXHL 407-EMT features twin electric motors totaling 3 kW supervised by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Hydraulic testing certifies the BSM2V-2MXHL-407-EMT for up to 73 metres of elevation head and a maximum casing pressure of 10 bar across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Manufactured with AISI 304 chromium-nickel stainless steel wetted components, the BSM2V 2 MXHL 407-EMT is mounted on a Zinc-plated Steel S235JR Baseplate and fitted with isolating valves, non-return valves, and G 2" BSP suction with G 1 1/2" BSP delivery manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Calpeda manufacturer warranty coverage defends the 2MXHL 407-EMT (BSM2V 2MXHL 407-EMT), providing comprehensive defect protection for the stainless pump wet end, electric motor, and automated frequency converter from date of invoice.
