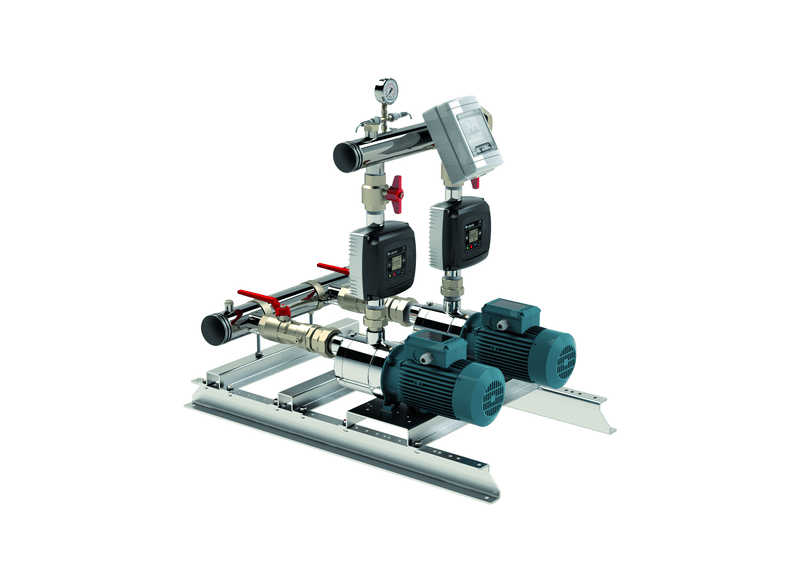

Calpeda BSM2V 2MXHL 408-EMT 2 x 1.8kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Demanding high-rise risers, large commercial complexes, and long-distance pressurised mains need serious vertical lift paired with substantial flow capacity. Built around two Calpeda MXHL 408 horizontal multistage pumps on a heavy-duty baseplate, the BSM2V 2MXHL 408-EMT is the flagship high-head twin booster in the 400 series. Operating together at full capacity, the dual pumps deliver up to 266.6 L/Min. For demanding vertical distribution, the multistage design can build up to 84.8 m of head.
Precise pressure governance is handled by integrated I-MAT frequency converters mounted directly onto each motor assembly. Instead of operating at fixed full speed, the lead drive continuously adjusts rotational frequency to maintain constant downstream pressure as building draw-off changes. When peak demand arrives, the second converter brings the lag pump online smoothly, alternates duty cycles to balance component wear, and provides comprehensive dry-run and overload protection.
Hygienic AISI 304 stainless steel is used throughout the suction and delivery manifolds to prevent corrosion and contamination in potable or process water circuits. Site pipework connects to a 50 mm suction header and discharges through a 40 mm outlet header. Dedicated isolation ball valves and non-return check valves on each pump leg prevent backflow and simplify maintenance isolation, complemented by a pressure gauge and an external vessel port.
Engineered for single-phase electrical compatibility, the booster connects to a single-phase 230 V power supply while its onboard inverters drive three-phase 230/400 V motor windings. Each 2-pole induction motor runs at up to 2900 rpm on 50 Hz mains, conforming to IEC 60034 standards with Class F thermal insulation. Each pump motor produces 1.8 kW (P2) of mechanical power and draws 4.8 A at full duty.
Key Features
- Maximum Lift Multistage Design: Features an 8-stage stainless steel hydraulic assembly engineered for tall multi-storey buildings and high-pressure circuits.
- Dual Onboard I-MAT Inverters: Variable-speed frequency converters modulate pump output in real time to hold set pressure and minimise energy usage.
- Wide Thermal Operating Window: Rated for continuous handling of clean cold or hot water from -15 °C to +110 °C.
- AISI 304 Stainless Headers: Heavy-duty stainless steel suction and delivery manifolds resist corrosion and ensure hygienic water transport.
- Robust Enclosure Protection: Rated to IP54 ingress protection standards with Class F motor insulation for reliable service in plant rooms.
- Uninterrupted Maintenance Isolation: Fitted with individual ball valves and non-return check valves so one pump can be serviced while the other operates.
- Single-Phase Mains Operation: Runs from a single-phase supply circuit while providing smooth three-phase inverter drive to both motors.
- Complete Pre-Tested Skid: Supplied factory-assembled on a structural base frame with a pressure gauge and a header connection for an external tank.
- Two-Year Factory Warranty: Supported by a 24 Months warranty from Calpeda for assured operational dependability.
What's Included
- 2 x Calpeda MXHL 408 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 267 L/Min |
| Max Head | 84.8 m |
| Power | 2 x 1.8 kW / 415v |
| Rated Current | 2 x 4.8 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electrical circuit specifications and dual inverter modules govern this twin installation?
Utility electrical input for the Calpeda Variable Speed Booster Set BSM2V 2MXHL 408-EMT connects to single phase 230V mains, powering twin motors totaling 3.6 kW under dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Hydraulic testing certifies the BSM2V 2MXHL 408-EMT for up to 84.8 metres of elevation head and a maximum casing pressure of 10 bar across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Manufactured with AISI 304 chromium-nickel stainless steel wetted components, the BSM2V-2MXHL-408-EMT is mounted on a Zinc-plated Steel S235JR Baseplate and fitted with isolating valves, non-return valves, and G 2" BSP suction with G 1 1/2" BSP delivery manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Calpeda manufacturer warranty coverage defends the BSM2V 2 MXHL 408-EMT, providing comprehensive defect protection for the stainless pump wet end, electric motor, and automated frequency converter from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
When high water consumption occurs, the 2MXHL 408-EMT (BSM2V 2MXHL 408-EMT) activates both pumps in parallel to provide up to 266.6 L/min (16 m³/h) total delivery.
